CKS-632-2

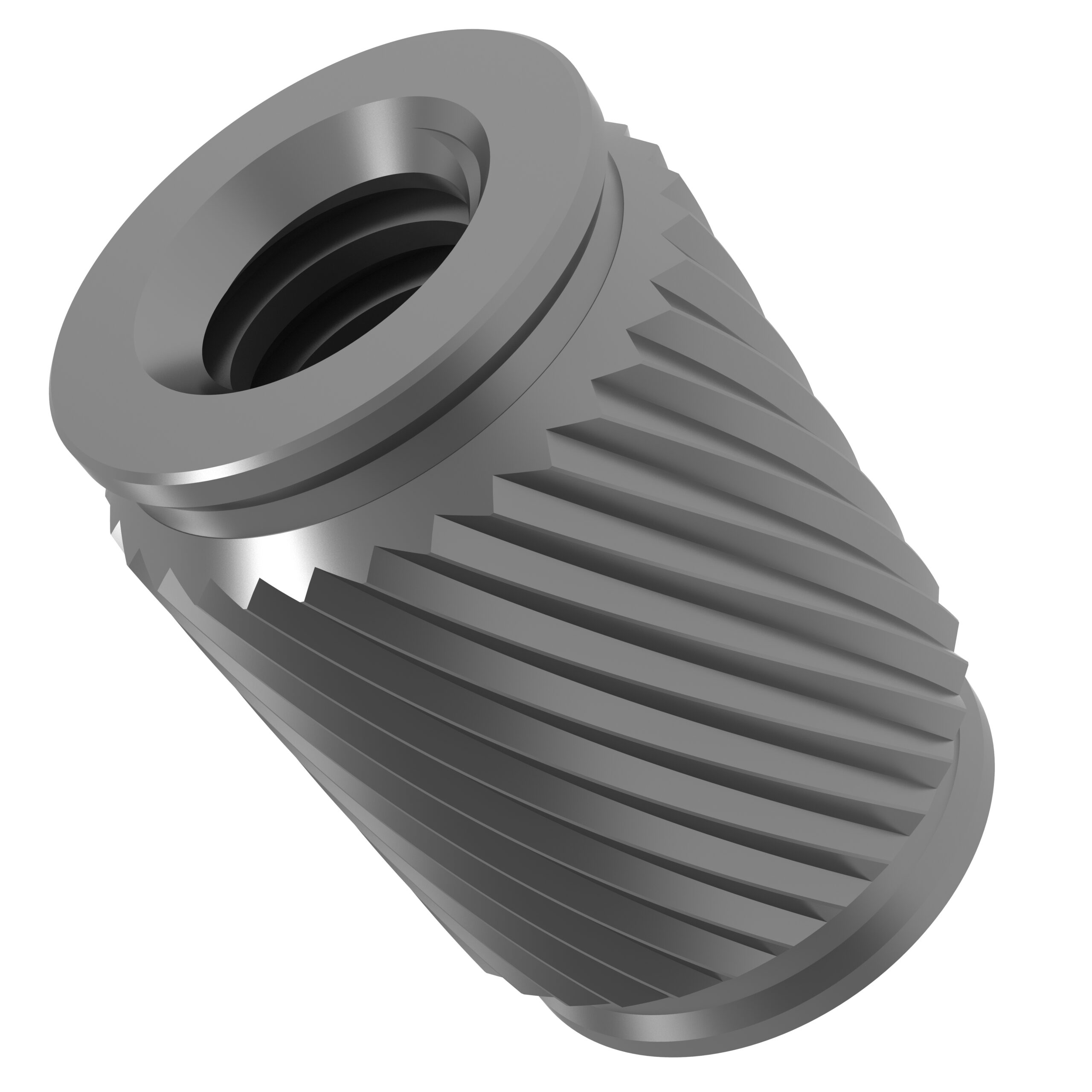

PEM® CASTSERT® Press-in Inserts
CKS-632-2
PEM® CASTSERT® Press-in Inserts
For Castings and Soft Metals HRB 70 / HB 125 or less PEM® 300 Series Stainless Steel CASTSERT® inserts provide strong, durable metal threads in soft metals and die-cast alloys. The simple press-in and rapid installation process for these inserts uses a flat punch and anvil to install all sizes and lengths, approximately 80% faster than other methods.
- Designed for flush installation with flat punch and anvil into blind holes or thru-holes
- Process cost savings vs. coil inserts or thread tapping
- Installed into drilled holes or as-cast holes with low draft angle
- Pilot for rapid seating and self-alignment
- Symmetric for auto-feed capability
Fastener drawings and models are available at devaws.pemnet.com
规格
- 螺纹代码
- 632
- 螺纹尺寸
- .138-32 (#6-32)
- 螺纹规格
- 2B, ASME B1.1
- 紧固件材质
- 300 Series Stainless Steel
- 标准表面处理
- Passivated and/or tested per ASTM A380
- 适用板材硬度
- For Use in Castings and Soft Metals HRB 70 / HB 125 or Less
- 产品类型
- PEM® CASTSERT® Press-in Inserts – Unified
- 螺纹类型
- Internal

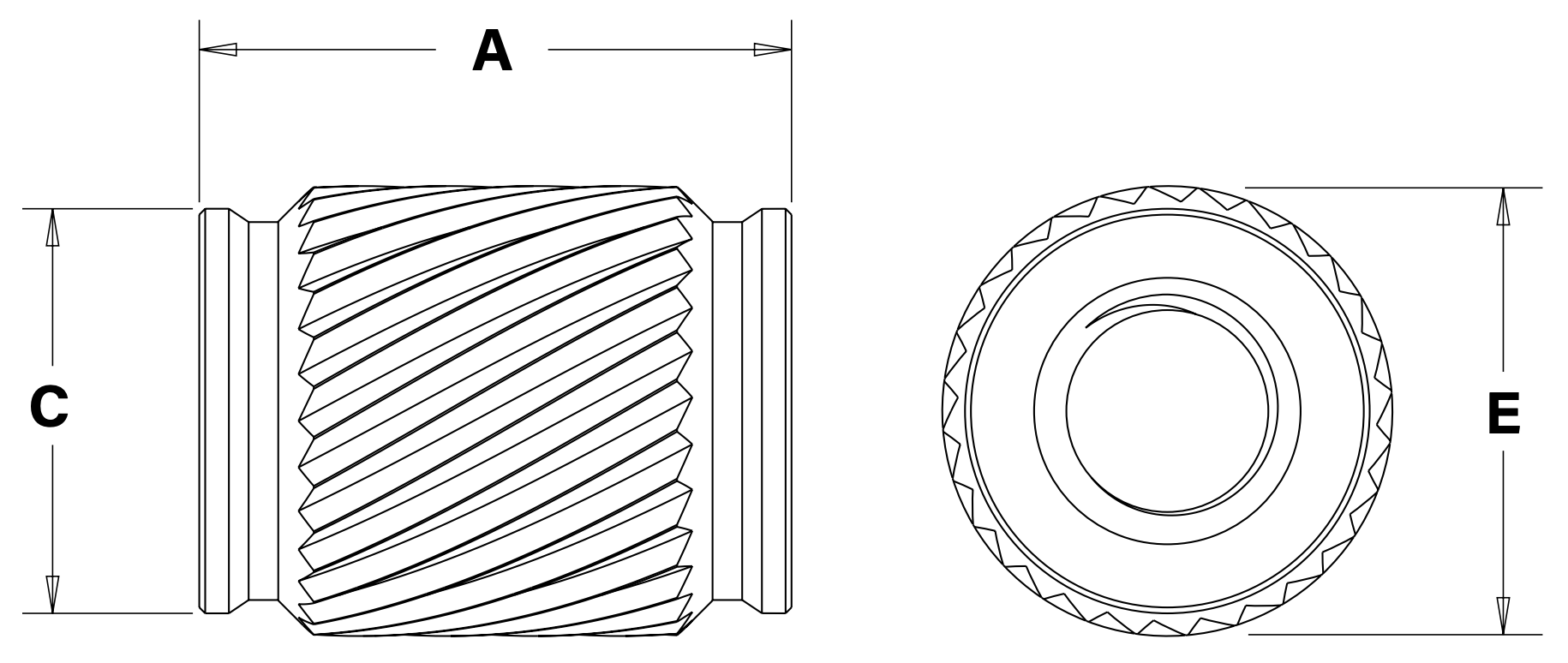

- After Knurl E Nom_in
- 0.259in
- 品牌
- PEM
- Length A ± .005_in
- 0.375in
- Min. Sheet Thickness R_in
- 0.38in

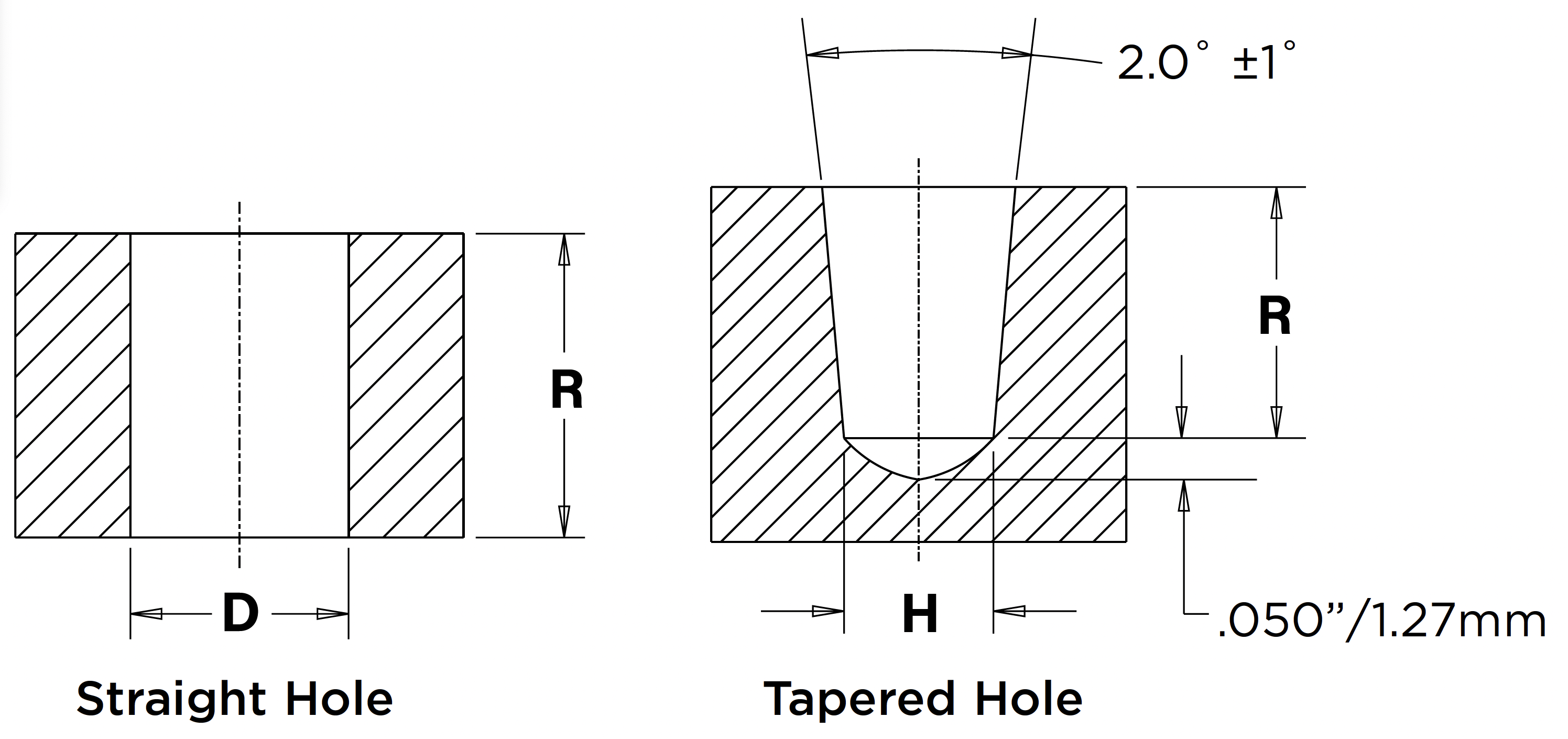

- Min Dia H of Tapered Hole at Length R (in)
- 0.241
- PEM产品系列
- CKS
- Pilot C Max._in
- 0.24in
- 产品类型
- 嵌件
- Straight Hole Dia. D Tolerance +/- (in)
- .003-.000
- 最小值 孔 C/L 至边缘的距离_in
- 0.198in
安装&性能数据
| Type | Thread Code | Test Sheet Material | Installation (lbs.) | Anvil Dim A (in.) | Anvil Dim B (in.) | Anvil Dim C (in.) | Haeger Part Number Anvil | Haeger Part Number Punch | Length Code | Pullout (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| CKS | 632 | ADC12 Die Cast Aluminum (A383 Equivalent) | 2200 | 3 | 2.5 | 1 | H-108-0020L | H-108-0020L | 2 | 280 |
