CKS-M3-2

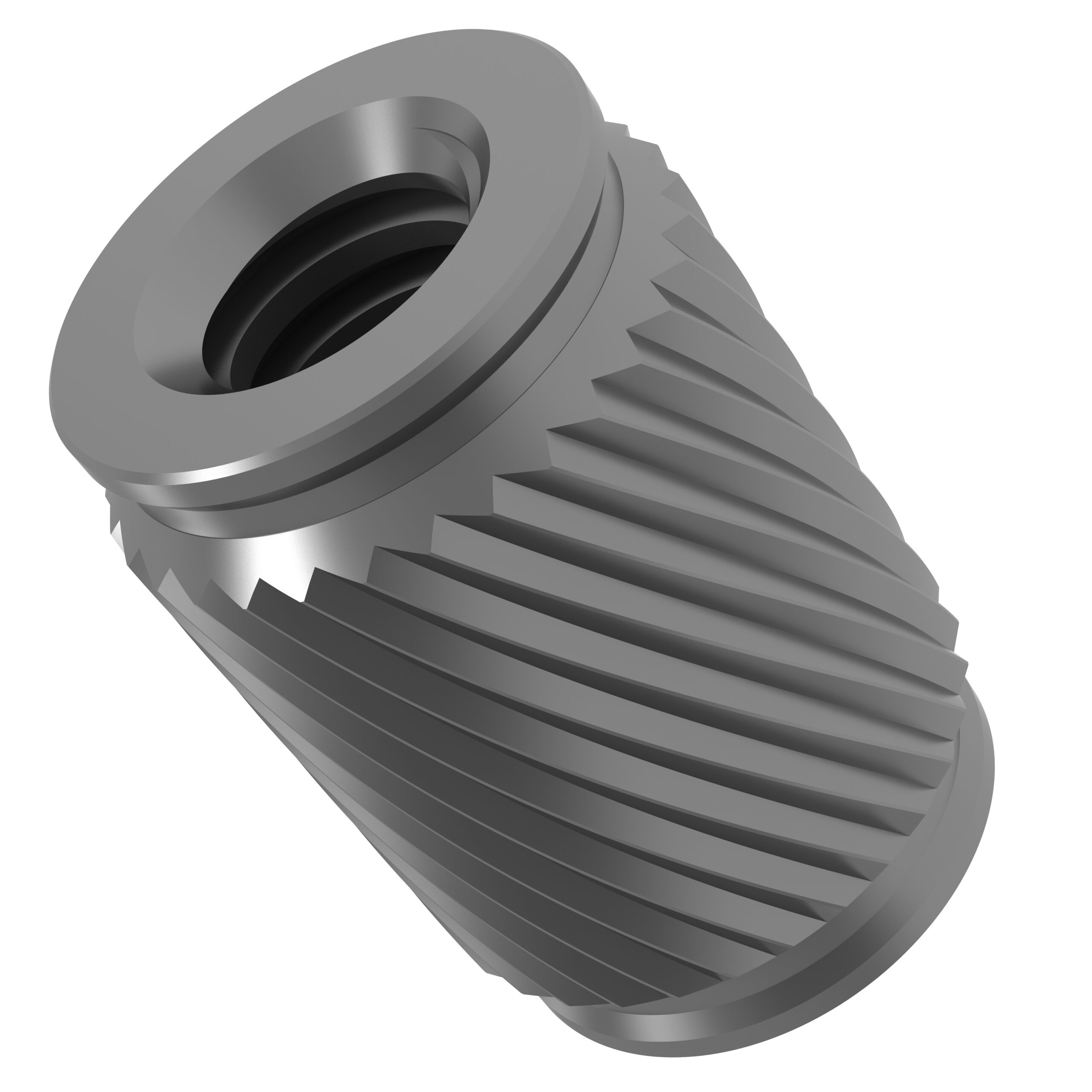

PEM® CASTSERT® Press-in Inserts
CKS-M3-2
PEM® CASTSERT® Press-in Inserts
For Castings and Soft Metals HRB 70 / HB 125 or less PEM® 300 Series Stainless Steel CASTSERT® inserts provide strong, durable metal threads in soft metals and die-cast alloys. The simple press-in and rapid installation process for these inserts uses a flat punch and anvil to install all sizes and lengths, approximately 80% faster than other methods.
- Designed for flush installation with flat punch and anvil into blind holes or thru-holes
- Process cost savings vs. coil inserts or thread tapping
- Installed into drilled holes or as-cast holes with low draft angle
- Pilot for rapid seating and self-alignment
- Symmetric for auto-feed capability
Fastener drawings and models are available at devaws.pemnet.com
规格
- 螺纹代码
- M3
- 螺纹尺寸
- M3 x 0.5
- 螺纹规格
- 6H, ASME B1.13M
- 紧固件材质
- 300 Series Stainless Steel
- 标准表面处理
- Passivated and/or tested per ASTM A380
- 适用板材硬度
- For Use in Castings and Soft Metals HRB 70 / HB 125 or Less
- 产品类型
- PEM® CASTSERT® Press-in Inserts – Metric
- 螺纹类型
- Internal

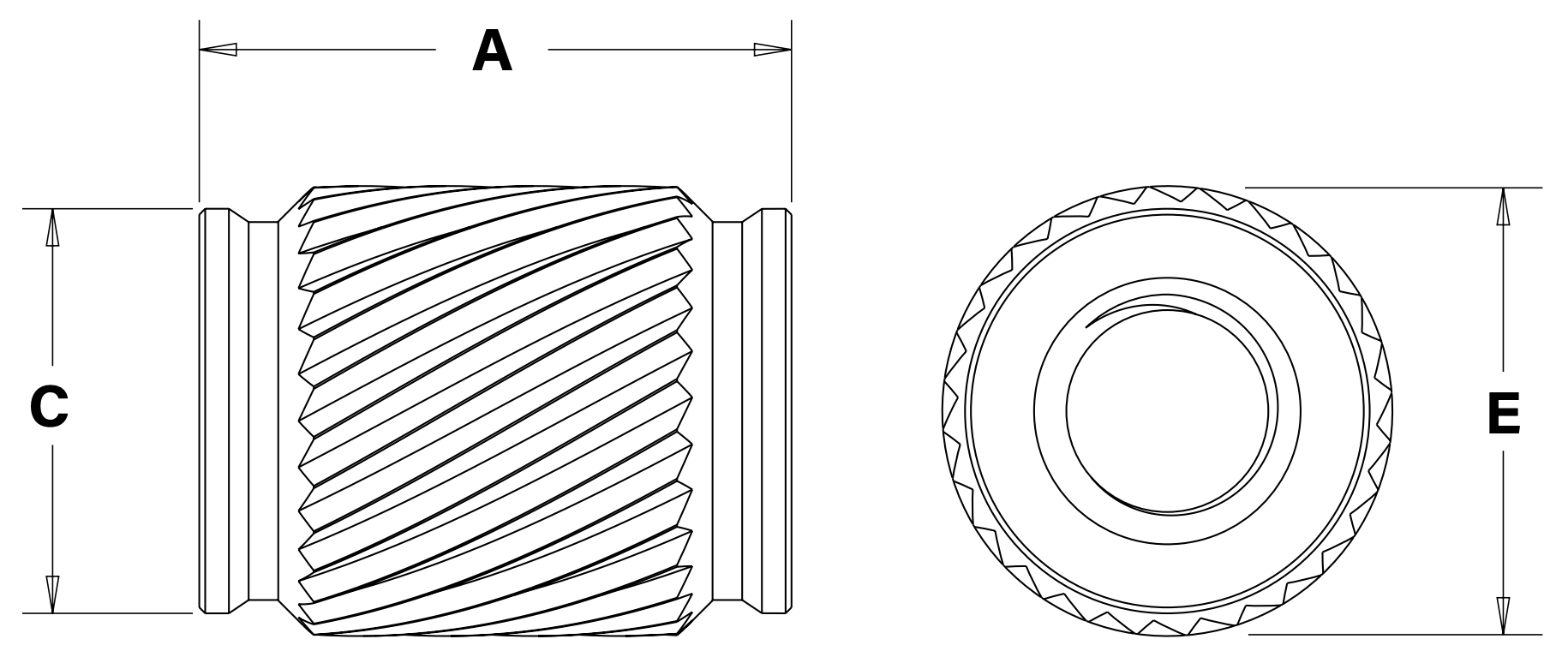

- After Knurl E Nom_mm
- 5.79mm
- 品牌
- PEM
- Length A ± 0.13_mm
- 7.62mm
- Min. Sheet Thickness R_mm
- 7.75mm

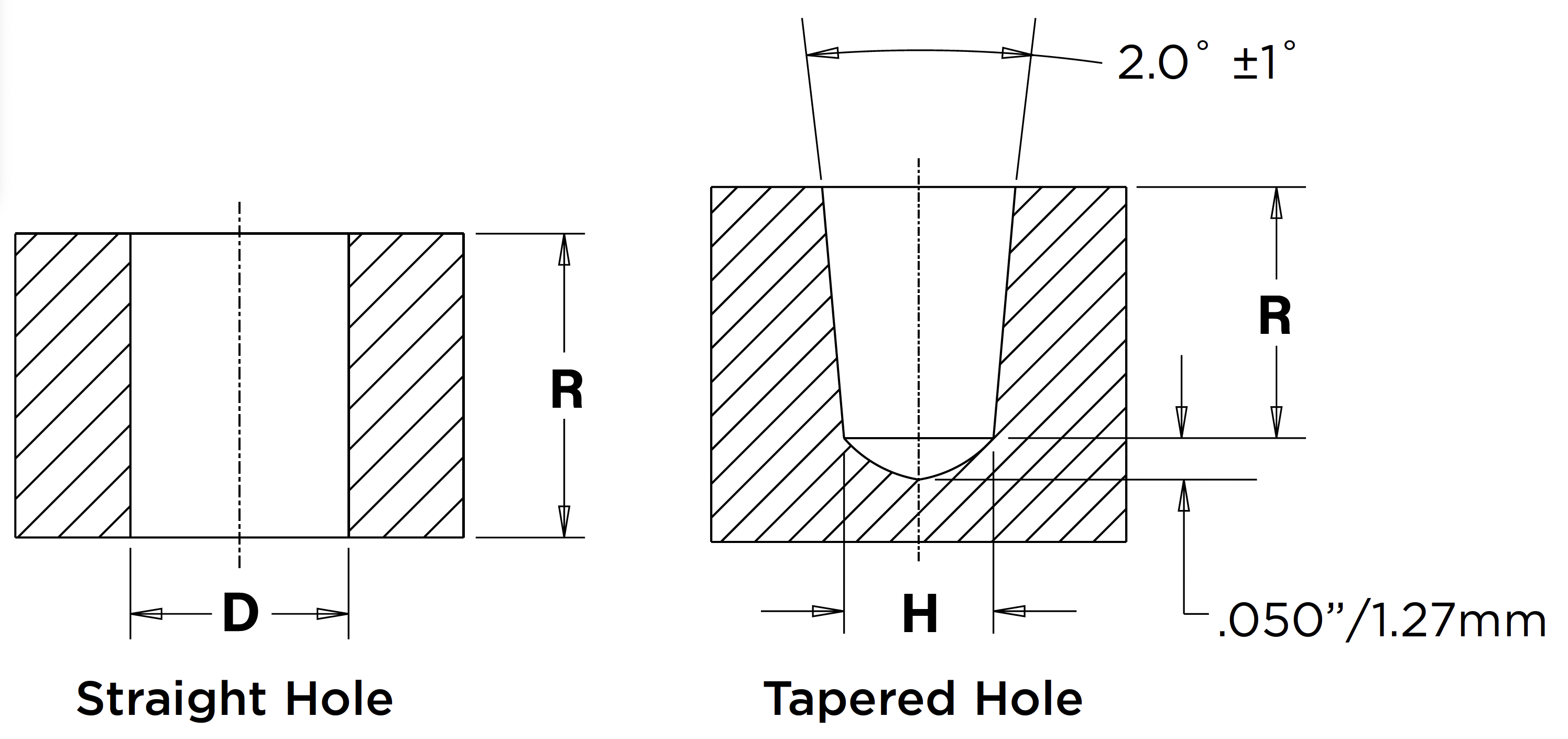

- Min Dia H of Tapered Hole at Length R (mm)
- 5.33
- PEM产品系列
- CKS
- Pilot C Max._mm
- 5.31mm
- 产品类型
- 嵌件
- 最小孔边距_mm
- 4.44mm
安装&性能数据
| Type | Thread Code | Test Sheet Material | Anvil Dim A (mm) | Anvil Dim B (mm) | Anvil Dim C (mm) | Haeger Part Number Anvil | Haeger Part Number Punch | Installation (kN) | Length Code | Pullout (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| CKS | M3 | ADC12 Die Cast Aluminum (A383 Equivalent) | 76.2 | 63.5 | 25.4 | H-108-0020L | H-108-0020L | 7.2 | 2 | 660 |
