IPC-832

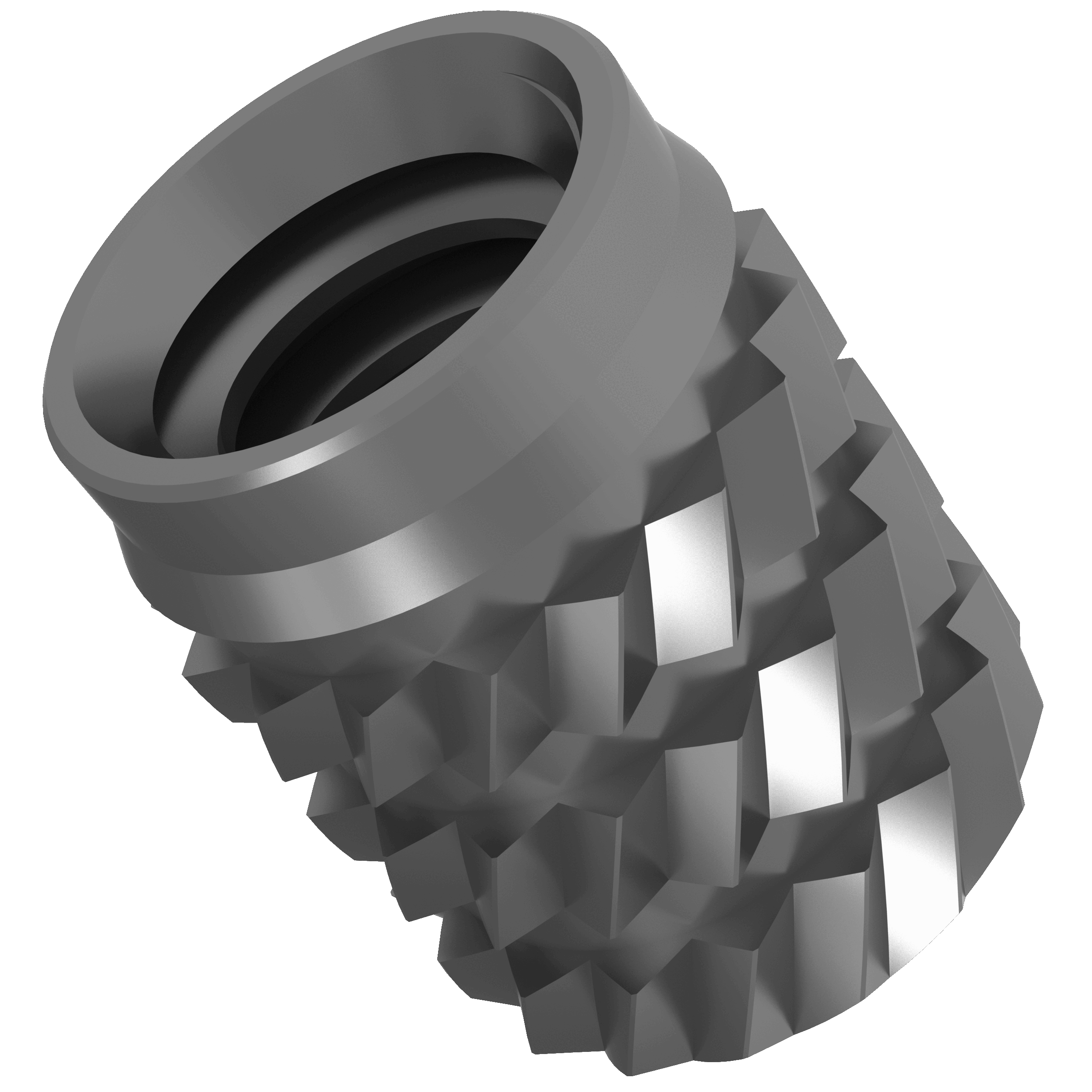

SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
IPC-832
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
PRESS-IN INSERT, STAINLESS
规格
- 螺纹代码
- 832
- Thread Size(x Pitch)
- .164-32 (#8-32)
- 螺纹规格
- 2B, ASME B1.1
- 紧固件材质
- 300 Series Stainless Steel
- 标准表面处理
- Passivated and/or tested per ASTM A380
- 产品类型
- SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
- 品牌
- SI
- Installation Method
- Press-In
- PEM产品系列
- IPC
- 产品类型
- 嵌件

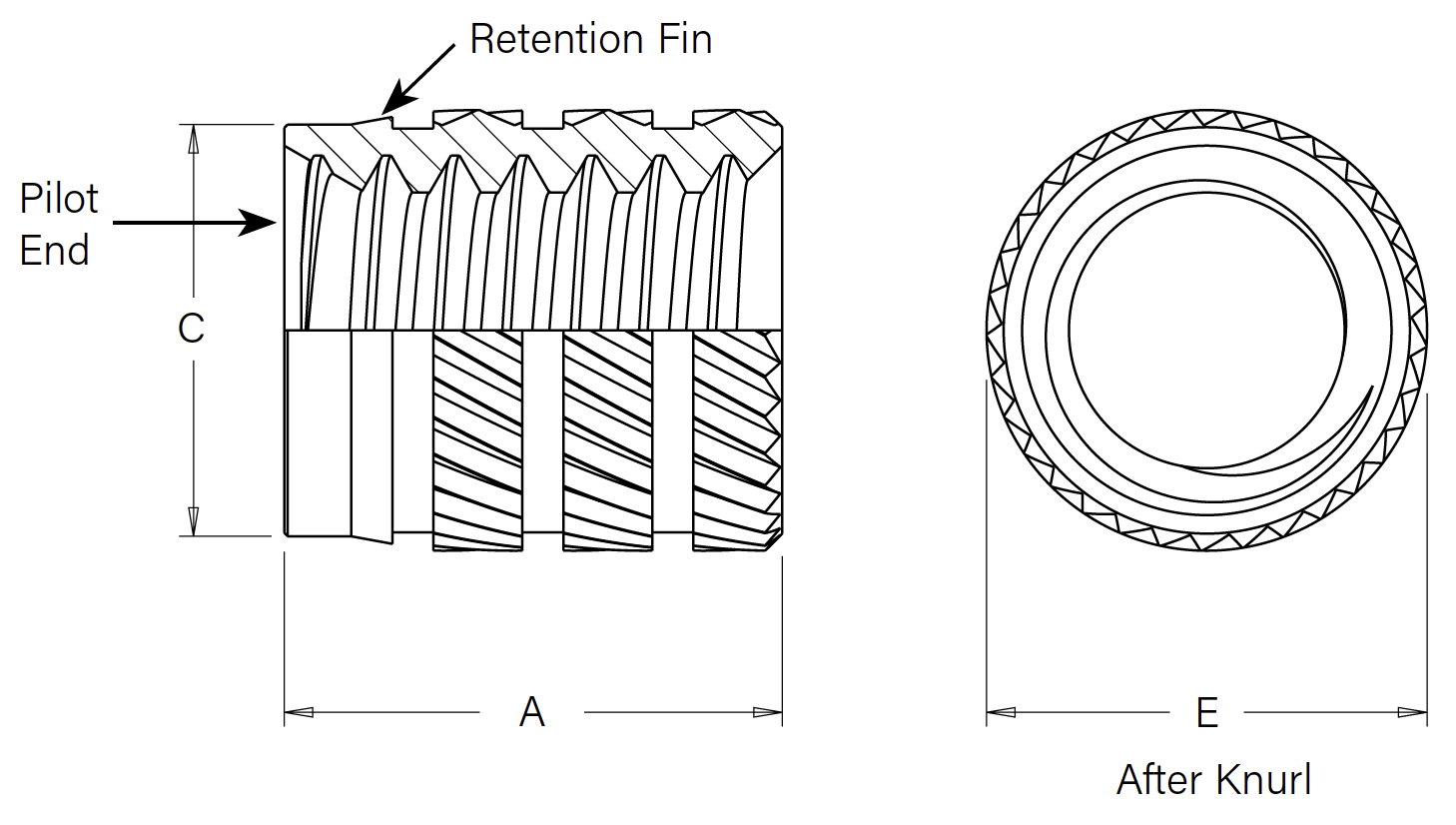

- A ± .005_in
- 0.292in
- E ± .005_in
- 0.228in
- Hole Dia. ± .002_in
- 0.213in
- Min. Hole Depth_in
- 0.322in
- C Max._in
- 0.212in
安装&性能数据
| Type | Thread Code | Test Sheet Material | Install. Force (lbs.) | Pullout (lbs.) | Torque-out (in. lbs.) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | 832 | Polycarbonate | 700 | 256 | 47.2 |
| IPA, IPB, IPC | 832 | ABS | 400 | 72.7 | 20.8 |
