IPFA-0428
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
IPFA-0428
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
PRESS-IN INSERT, ALUMINUM
规格
- 螺纹代码
- 0428
- Thread Size(x Pitch)
- .250-28 (1/4-28)
- 螺纹规格
- 2B, ASME B1.1
- 紧固件材质
- Aluminum
- 标准表面处理
- Plain
- 产品类型
- SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
- 品牌
- SI
- Installation Method
- Press-In
- PEM产品系列
- IPFA
- 产品类型
- 嵌件

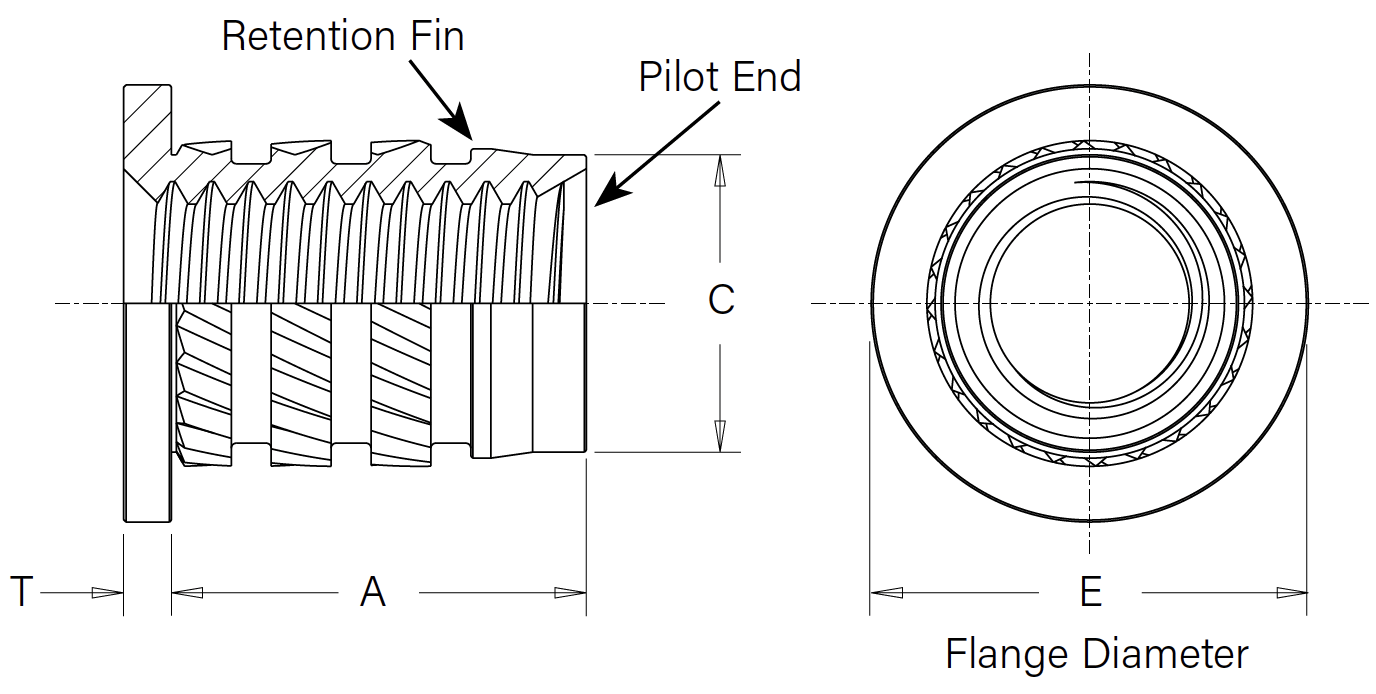

- A ± .005_in
- 0.364in
- E ± .005_in
- 0.375in
- Hole Dia. ± .002_in
- 0.307in
- Min. Hole Depth_in
- 0.394in
- C Max._in
- 0.306in
- T ± .005_in
- 0.064in
安装&性能数据
| Type | Thread Code | Test Sheet Material | Install. Force (lbs.) | Pullout (lbs.) | Torque-out (in. lbs.) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | 0420 | Polycarbonate | 1000 | 290 | 6.7 |
| IPA, IPB, IPC | 0420 | ABS | 500 | 95.2 | 25.6 |
库存
| 代理商 | 数量 | 联系方式 | 电话 | 地址 | 地点 |
|---|
