IPFC-440

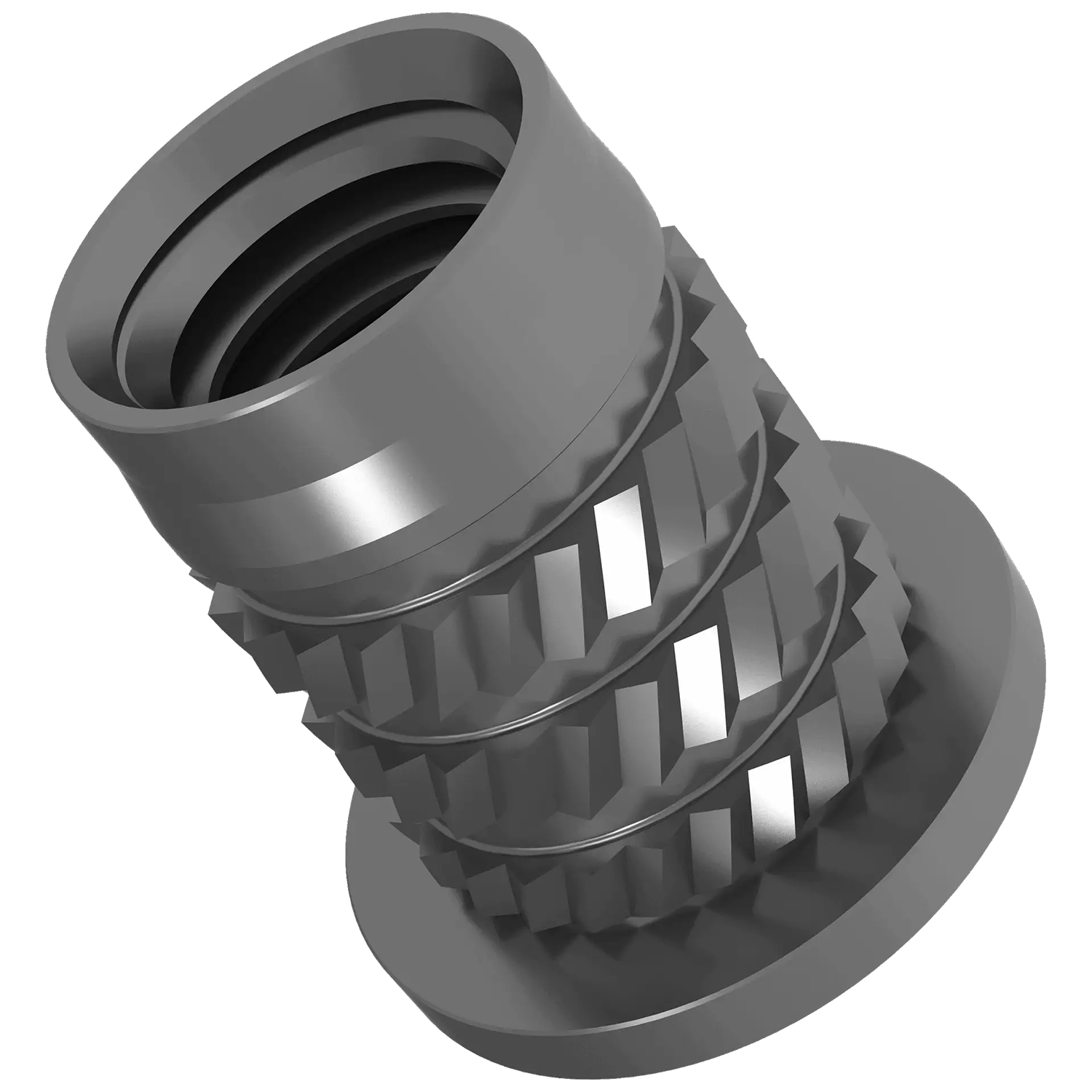

SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
IPFC-440
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
PRESS IN INSERT, STAINLESS
规格
- 螺纹代码
- 440
- Thread Size(x Pitch)
- .112-40 (#4-40)
- 螺纹规格
- 2B, ASME B1.1
- 紧固件材质
- 300 Series Stainless Steel
- 标准表面处理
- Passivated and/or tested per ASTM A380
- 产品类型
- SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
- 品牌
- SI
- Installation Method
- Press-In
- PEM产品系列
- IPFC
- 产品类型
- 嵌件

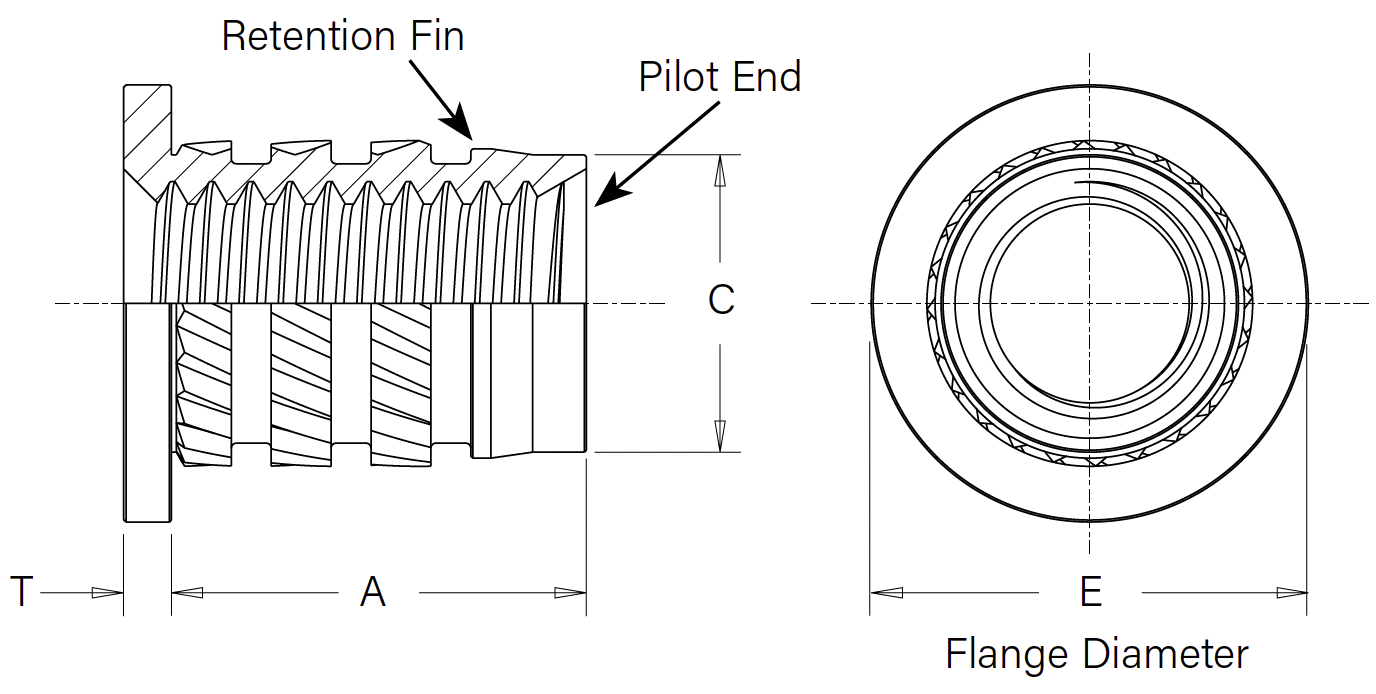

- A ± .005_in
- 0.208in
- E ± .005_in
- 0.188in
- Hole Dia. ± .002_in
- 0.15in
- Min. Hole Depth_in
- 0.238in
- C Max._in
- 0.149in
- T ± .005_in
- 0.032in
安装&性能数据
| Type | Thread Code | Test Sheet Material | Install. Force (lbs.) | Pullout (lbs.) | Torque-out (in. lbs.) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | 440 | ABS | 300 | 57.7 | 4.3 |
| IPA, IPB, IPC | 440 | Polycarbonate | 600 | 75.9 | 12.6 |
