MRHPS-1.2MM-400 - PEM® GHOST™ Floating Pins - MRPS™, MRHPS™ - PEM® Fastening Products

适用板材硬度: HRB 70 / HB 125 or less
产品类型: PEM® GHOST™ Floating Pins – MRPS™, MRHPS™
Axial Float – Total (in): 0.006
Axial Float – Total (mm): 0.15
品牌: PEM
G Air Gap RAnge (mm): 3.61 – 4.01
G Air Gap Range (in): 0.142 – 0.158
L – Length ± .008_in: 0.157in
L – Length ± 0.2_mm: 4mm
Min Sheet Thickness – Cosmetic (in): 0.065
Min Sheet Thickness – Cosmetic (mm): 1.65
Min Sheet Thickness – Non-cosmetic (in): 0.04
Min Sheet Thickness – Non-cosmetic (mm): 1
PEM产品系列: MRHPS
产品类型: 销钉
Radial Float – All Directions From Center / Total (in): 0.011
Radial Float – All Directions From Center / Total (mm): 0.28

最大柄长: 0.022in, 0.56mm

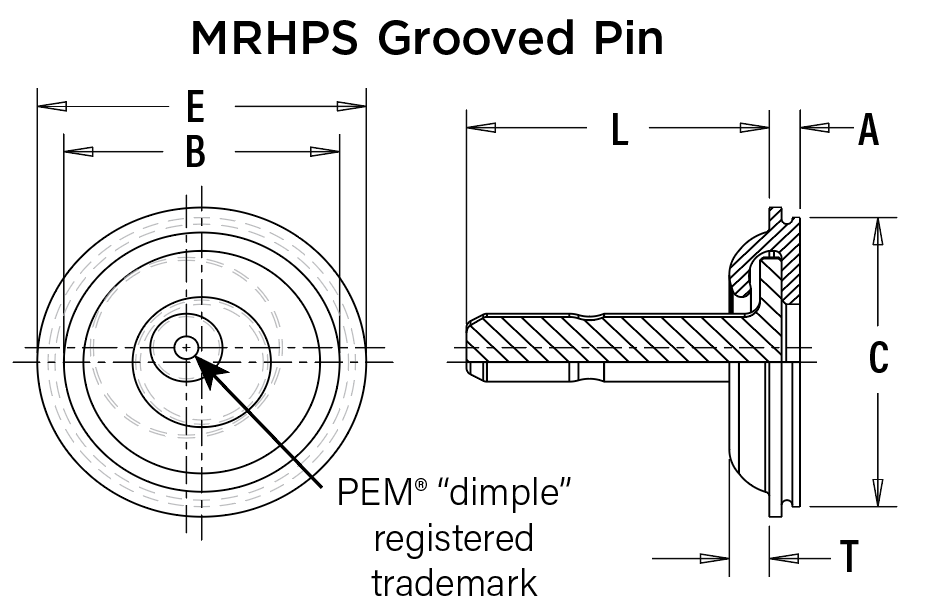

B Max._in: 0.183in
B最大_毫米: 4.65mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.201in
E Nom._in: 0.214in
E Nom._mm: 5.44mm
Min. Depth of Blind Hole_in: 0.023in
最小盲孔深度_毫米: 0.59mm
C Max._in: 0.2in
C 最大_毫米: 5.08mm
销钉直径代码: 1.2MM
T 最大_in: 0.029in
T Max._mm: 0.74mm

Test Sheet Material	FLOATING PIN TYPE	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
											MRFS	MRHPS	1.2MM	31.8 lbs / 141 N	0.024 in / 0.6 mm	32 lbs / 143 N	0.026 in / 0.7 mm
.039” / 1mm 5052-H34 Aluminum	MRHPS	1.2MM	0.185	4.7	H-187-GB185	H-108-0019L	8026790	975200048	450 lbs. / 2 kN	39.5 lbs / 176 N
