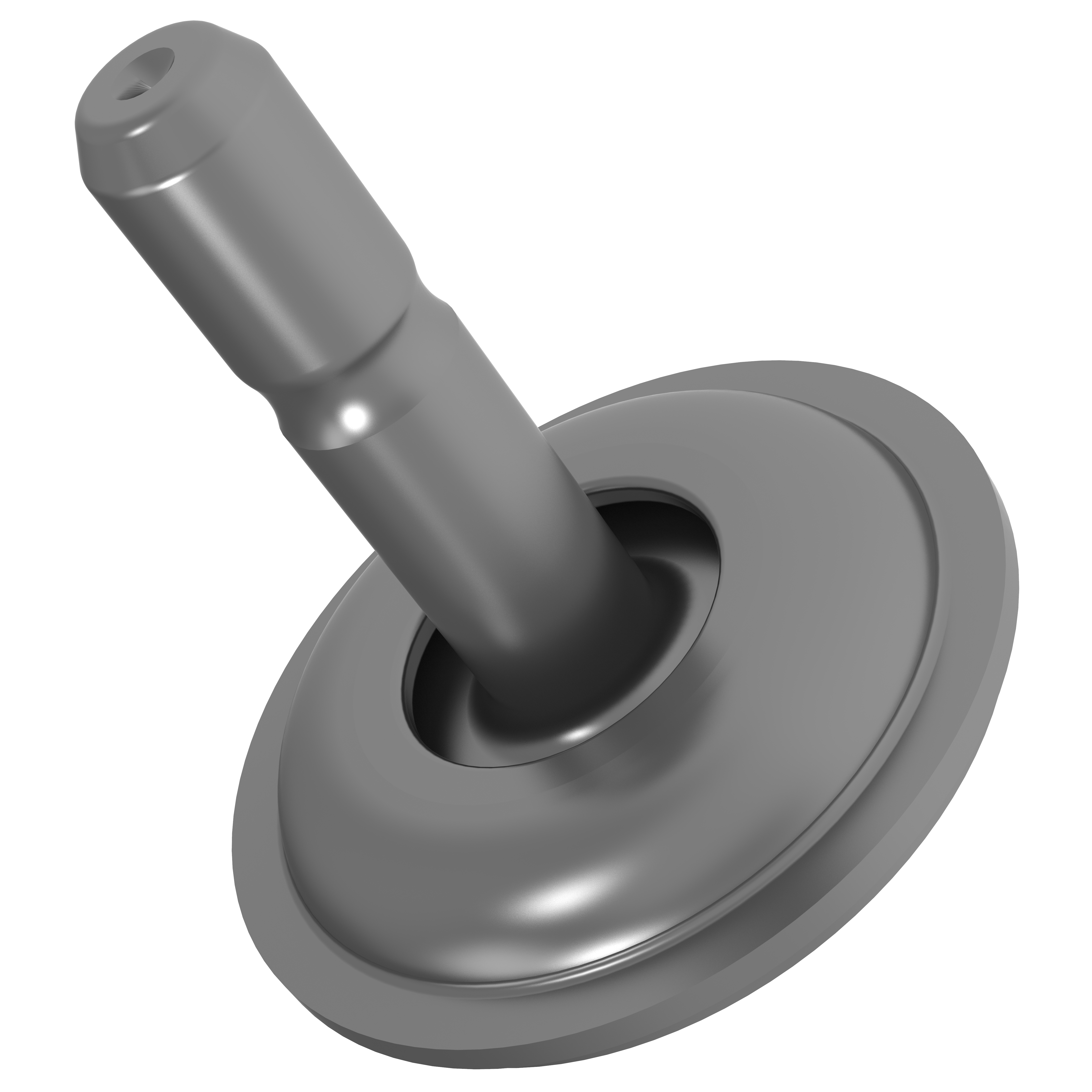

MRHPS-1.2MM-500
PEM® GHOST™ Floating Pins – MRPS™, MRHPS™
MRHPS-1.2MM-500
PEM® GHOST™ Floating Pins – MRPS™, MRHPS™

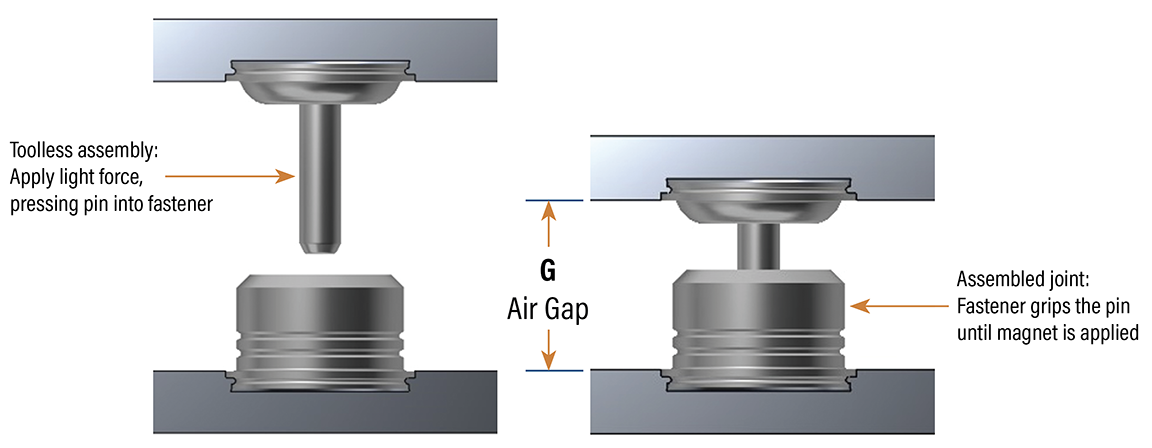

Magnetic Release Fastening Technology GHOST™ Fastening Technology is ideal for achieving tight security and sleek aesthetics. This new PEM® capability produces a fully concealed fastener with zero visible evidence of disassembly once engaged.
GHOST™ Fastening Technology At-a-Glance
- Tool-less assembly and reassembly
- Near-instant release and disassembly using magnetic tool
- Non-contact disassembly unlike traditional fastening solutions
- Ample float accommodates tolerance and assembly imprecisions
- Ultra-smooth design for sleek aesthetics
- Concealed nature of the product makes new design avenues possible across a variety of industries and market sectors
- Can replace many small external screw/nut assemblies
There are two floating pin styles available for the MRFS™ retainer, the MRPS™ smooth floating pin to accommodates variable engagement depth and/or tolerance stack-up and the MRHPS™ grooved floating pin which provides increased performance and decreased deflection under loading.
规格
- 适用板材硬度
- HRB 70 / HB 125 or less
- 产品类型
- PEM® GHOST™ Floating Pins – MRPS™, MRHPS™
- 品牌
- PEM

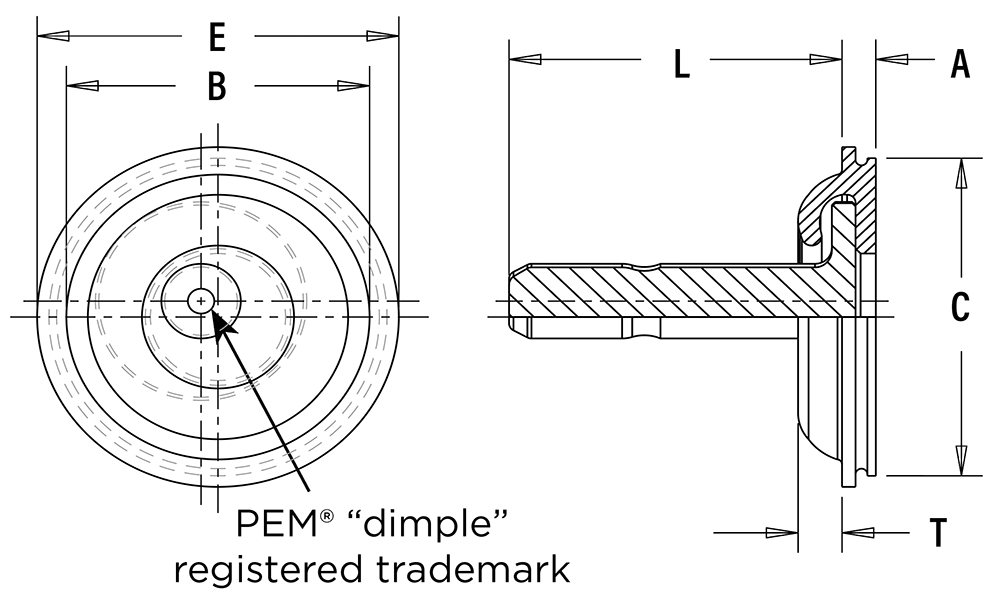

- G Air Gap Tolerance +/- (in)
- .004
- G Air Gap Tolerance +/- (mm)
- 0.1
- L – Length ± .008_in
- 0.197in
- L – Length ± 0.2_mm
- 5mm
- PEM产品系列
- MRHPS
- 产品类型
- 销钉
- 最大柄长
- 0.022in, 0.56mm
- B Max._in
- 0.183in
- B最大_毫米
- 4.65mm
- Blind Mounting Hole Diameter + .003 – .000_in
- 0.201in
- E Nom._in
- 0.214in
- E Nom._mm
- 5.44mm
- Min. Depth of Blind Hole_in
- 0.023in
- 最小 盲孔深度_毫米
- 0.59mm
- 最小值 孔 C/L 至边缘的距离_in
- 0.142in
- 最小孔边距_mm
- 3.6mm
- C Max._in
- 0.2in
- C 最大_毫米
- 5.1mm
- T 最大_in
- 0.029in
- T Max._mm
- 0.74mm
安装&性能数据
| Test Sheet Material | Pin Diameter Code | PIN TYPE | PULL-APART | RETAINER TYPE | Anvil Dim D +.003 (in.) | Anvil Dim D + 0.08 (mm) | FLOATING PIN TYPE | Haeger Part Number Anvil | Haeger Part Number Punch | INSTALLATION | Pemserter Part Number Anvil | Pemserter Part Number Punch | PIN DIAMETER FIT CODE/CODE | PULLOUT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.2MM | MRHPS | 32 lbs. / 142 N | MRFS | |||||||||||
| .061”/1.56mm 5052-H34 Aluminum | 0.185 | 4.7 | MRHPS | H-187-GB185 | H-108-0020L | 450 lbs. / 2 kN | 8026790 | 975200048 | 1.2MM | 39.5 lbs / 175 N |
