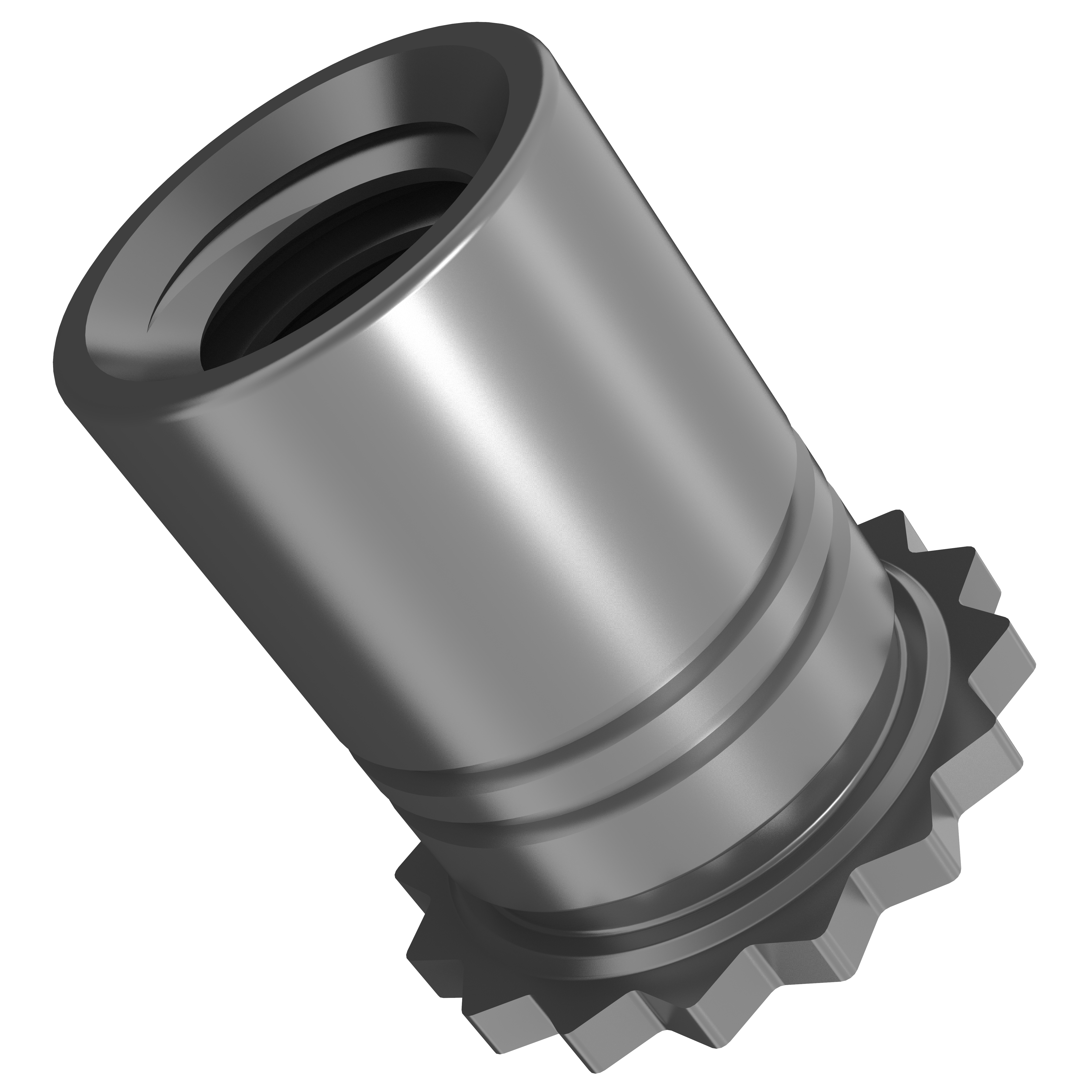

SOKS-3.5M3-6
Threaded Standoffs for Close-To-Edge Applications – Types SOK, SOKS
SOKS-3.5M3-6
Threaded Standoffs for Close-To-Edge Applications – Types SOK, SOKS
规格
- 螺纹代码
- 3.5M3
- 适用板材硬度
- HRB 70 / HB 125 or less
- 产品类型
- Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS – Metric
- 螺纹类型
- Internal
- Grounding
- Not Grounding
- Hole Size in Sheet +.003 / +0.08mm_mm
- 5.41mm
- Non-Magnetic
- Non-Magnetic
- PEM产品系列
- SO
- 产品类型
- 螺柱
- Through Hole/Blind
- Through Hole

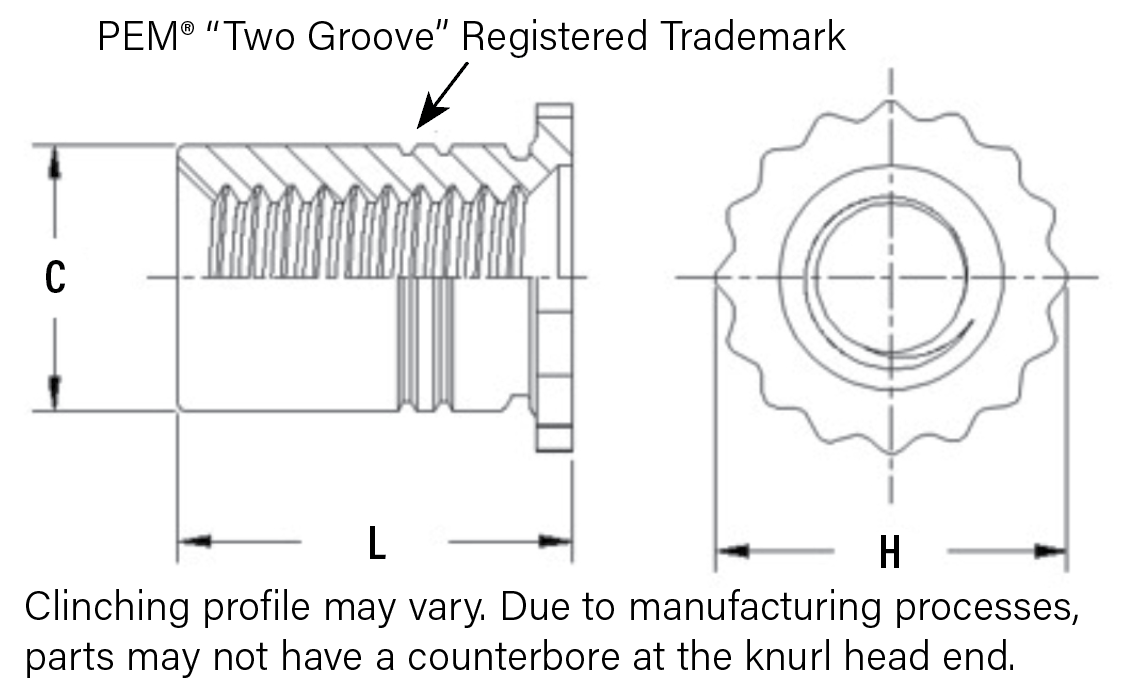

- H Nom._毫米
- 6.4mm
- 板材开孔尺寸 + 0.08_mm
- 5.41mm
- L +0.05 -0.13_mm
- 6mm
- 最小孔边距_mm
- 4.8mm
- C 最大_毫米
- 5.39mm
- Sheet Thickness
- 0.94 Min.
安装&性能数据
| Type | Thread Code | Test Sheet Material | Haeger Part Number Anvil | Haeger Part Number Punch | Pemserter Part Number Anvil | Pemserter Part Number Punch | Installation (kN) | PULL THRU (N) | Pushout (N) | Standoff Material | Torque-out (N•m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SOKS | 3.5M3 | 1 mm 5052-H34 Aluminum | H-109-6/M3.5L | H-108-0020L | 970200012300 | 975200048 | 6.7 | 1750 | 760 | Stainless Steel | 2.15 |
| SOKS | 3.5M3 | 1 mm Cold-rolled Steel | H-109-6/M3.5L | H-108-0020L | 970200012300 | 975200048 | 13.4 | 2450 | 900 | Stainless Steel | 2.15 |
