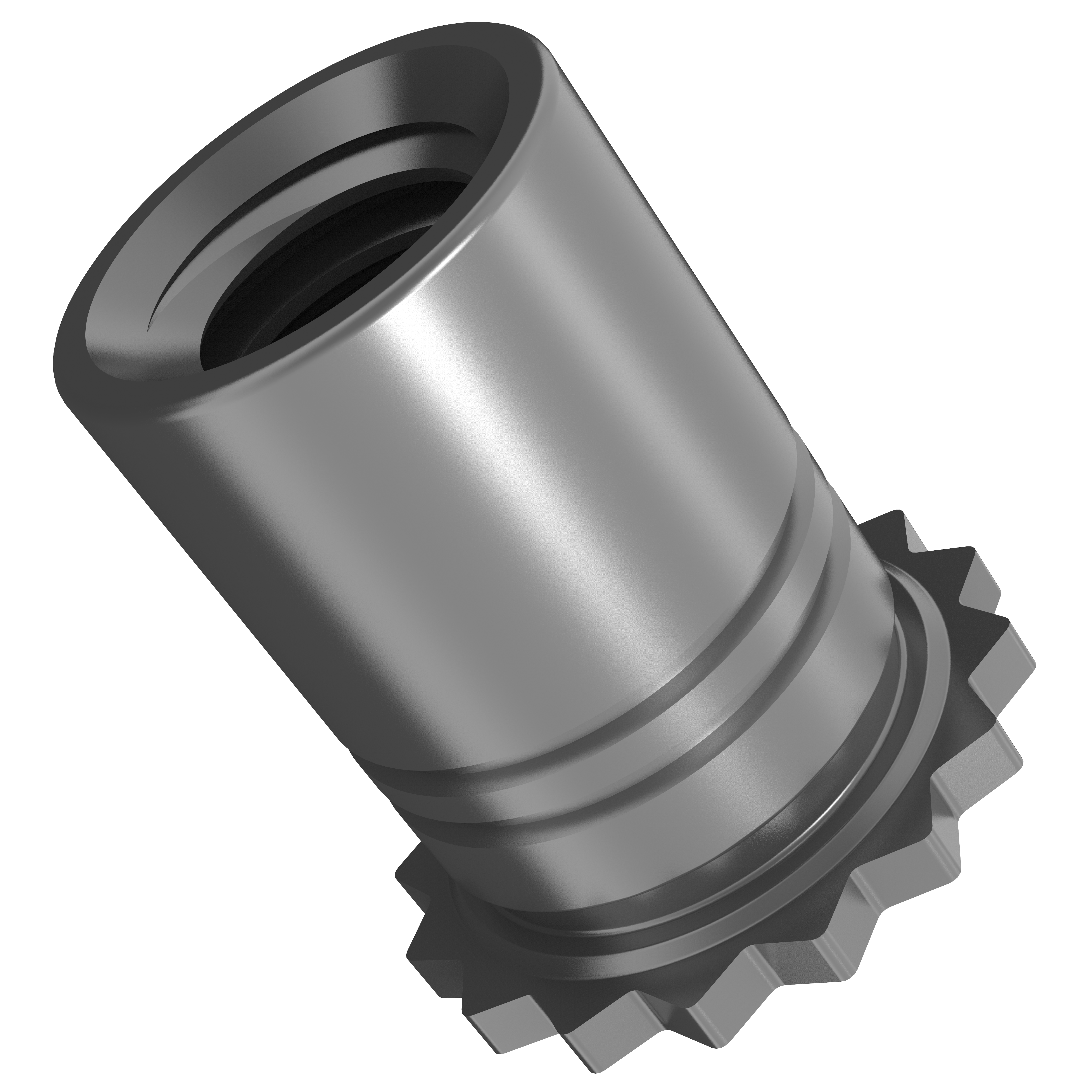

SOKS-M2.5-8
Threaded Standoffs for Close-To-Edge Applications – Types SOK, SOKS
SOKS-M2.5-8
Threaded Standoffs for Close-To-Edge Applications – Types SOK, SOKS
规格
- 螺纹代码
- M2.5
- 适用板材硬度
- HRB 70 / HB 125 or less
- 产品类型
- Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS – Metric
- 螺纹类型
- Internal
- Grounding
- Not Grounding
- Hole Size in Sheet +.003 / +0.08mm_mm
- 4.22mm
- Non-Magnetic
- Non-Magnetic
- PEM产品系列
- SO
- 产品类型
- 螺柱
- Through Hole/Blind
- Through Hole

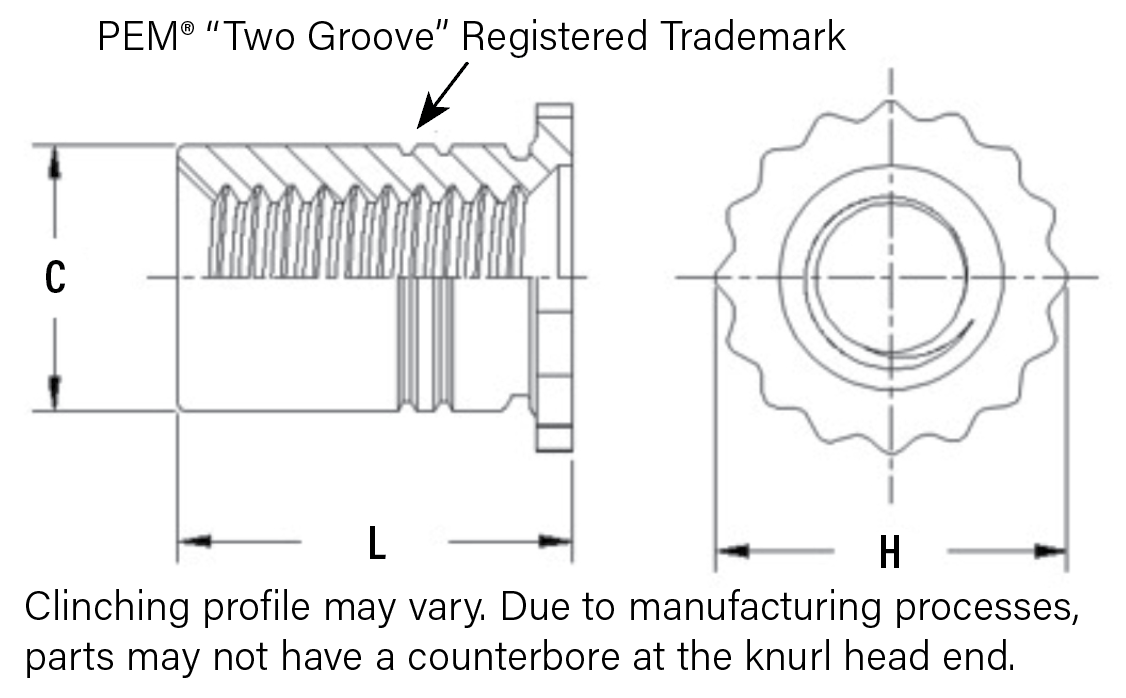

- H Nom._毫米
- 4.92mm
- 板材开孔尺寸 + 0.08_mm
- 4.22mm
- L +0.05 -0.13_mm
- 8mm
- 最小孔边距_mm
- 3.2mm
- C 最大_毫米
- 4.2mm
- Sheet Thickness
- 0.94 Min.
安装&性能数据
| Type | Thread Code | Test Sheet Material | Haeger Part Number Anvil | Haeger Part Number Punch | Pemserter Part Number Anvil | Pemserter Part Number Punch | Installation (kN) | PULL THRU (N) | Pushout (N) | Standoff Material | Torque-out (N•m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SOKS | M2.5 | 1 mm Cold-rolled Steel | H-109-4/M3L | H-108-0020L | 970200487300 | 975200048 | 4.9 | 1590 | 650 | Stainless Steel | 1.1 |
| SOKS | M2.5 | 1 mm 5052-H34 Aluminum | H-109-4/M3L | H-108-0020L | 970200487300 | 975200048 | 3.1 | 1120 | 475 | Stainless Steel | 1.1 |
