IPA-0518

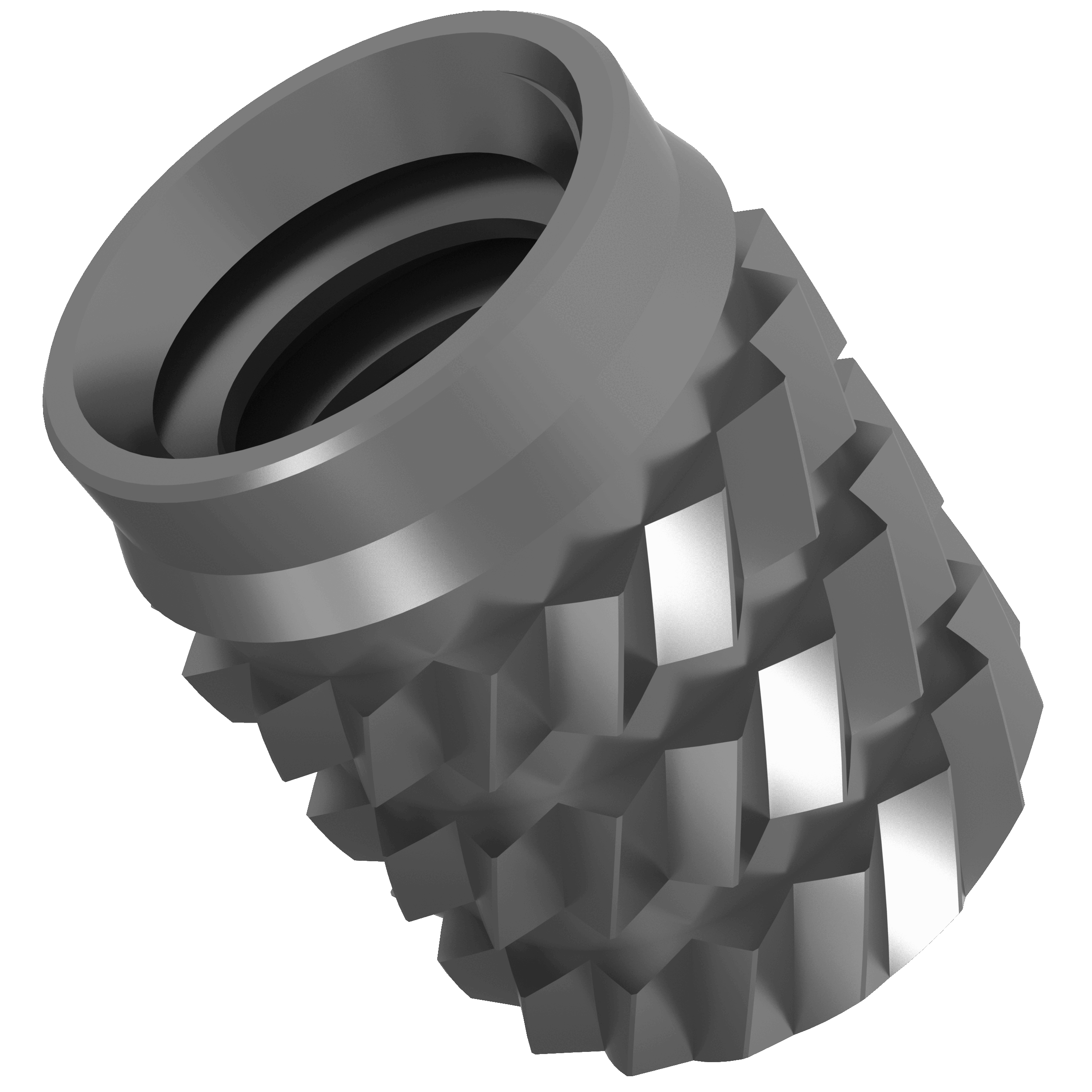

SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
IPA-0518
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
PRESS-IN INSERT, ALUMINUM
Specifications
- Gewinde Code
- 0518
- Thread Size(x Pitch)
- .313-18 (5/16-18)
- Thread Specification
- 2B, ASME B1.1
- Fastener Material
- Aluminum
- Standard Finish
- Plain
- Product Category
- SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPA
- Product Type
- Einsätze

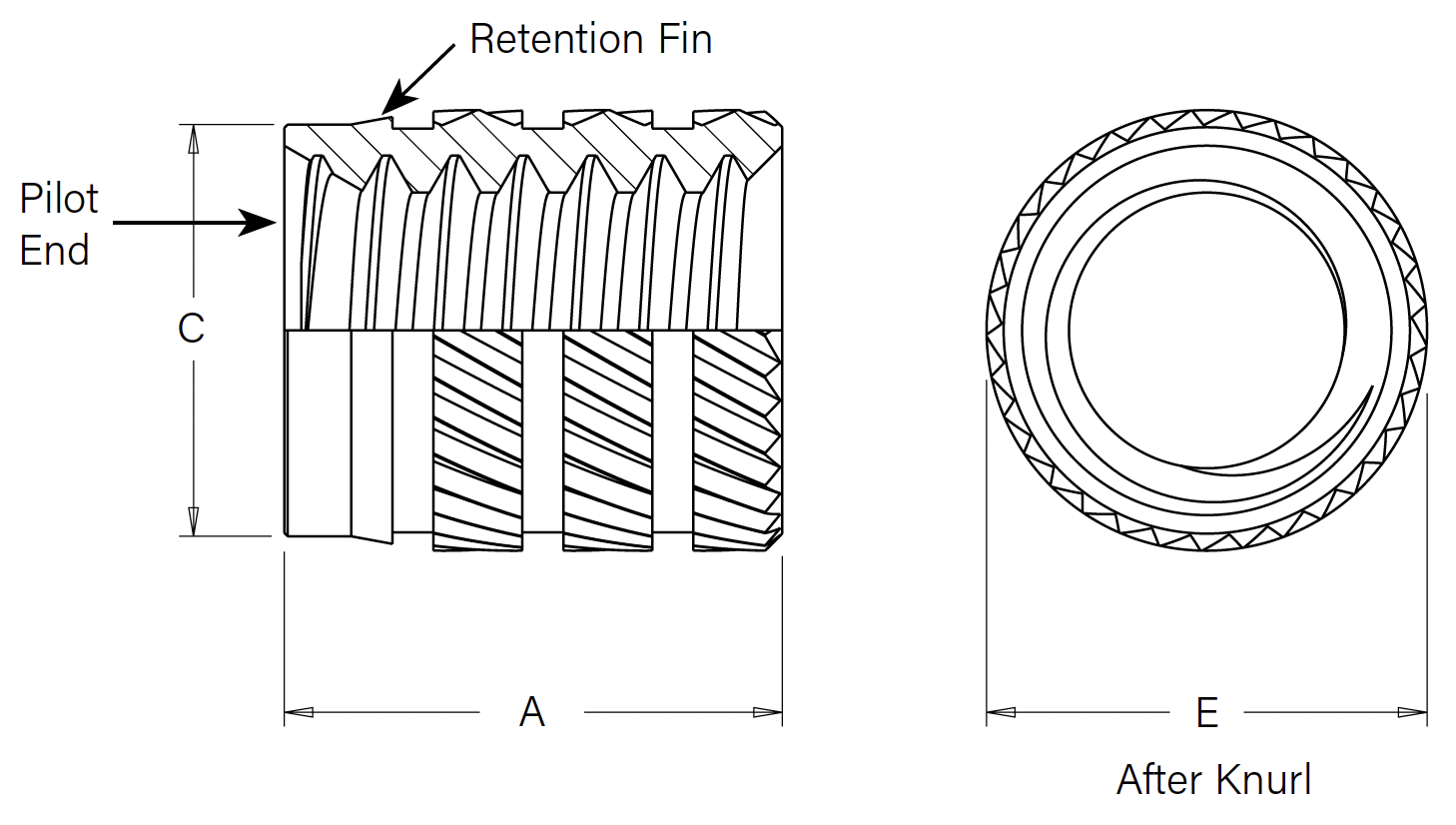

- A ± .005_in
- 0.364in
- E ± .005_in
- 0.383in
- Hole Dia. ± .002_in
- 0.368in
- Min. Hole Depth_in
- 0.394in
- C Max._in
- 0.367in
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (lbs.) | Pullout (lbs.) | Torque-out (in. lbs.) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | 0518 | Polycarbonate | 1200 | 340 | 6.7 |
| IPA, IPB, IPC | 0518 | ABS | 700 | 142 | 36.7 |
