IPA-M8
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
IPA-M8
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
PRESS-IN INSERT, ALUMINUM
Specifications
- Gewinde Code
- M8
- Thread Size(x Pitch)
- M8 x 1.25
- Thread Specification
- 6H, ASME B1.13M
- Fastener Material
- Aluminum
- Standard Finish
- Plain
- Product Category
- SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPA
- Product Type
- Einsätze

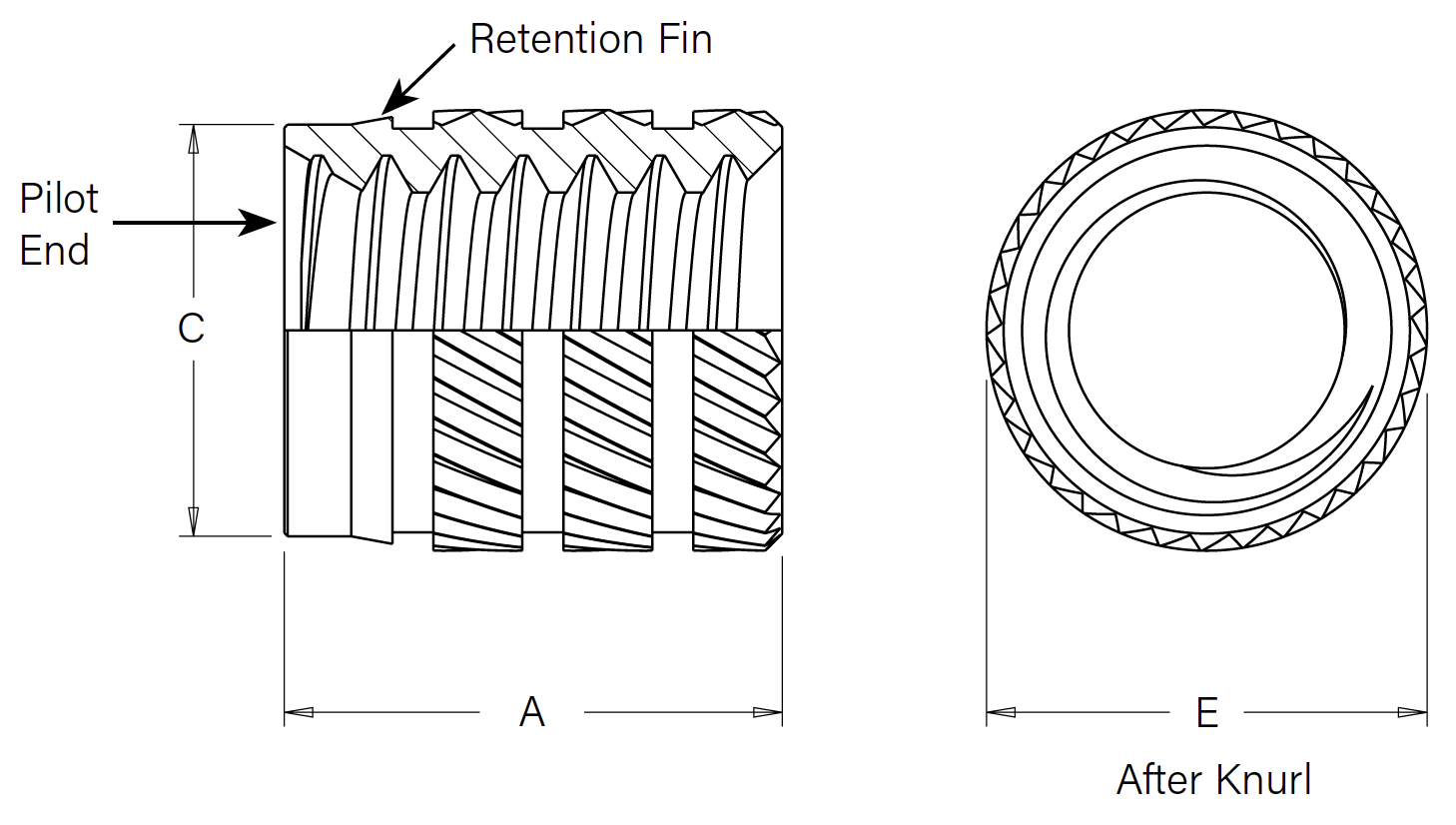

- A ± 0.13_mm
- 9.25mm
- E ± 0.13_mm
- 9.73mm
- Hole Dia. ± 0.05_mm
- 9.35mm
- Min. Hole Depth_mm
- 10mm
- C Max._mm
- 9.32mm
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (kN) | Pullout (N) | Torque-out (N•m) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | M8 | ABS | 3.1 | 634 | 4.15 |
| IPA, IPB, IPC | M8 | Polycarbonate | 5.35 | 1510 |
