IPB-0420

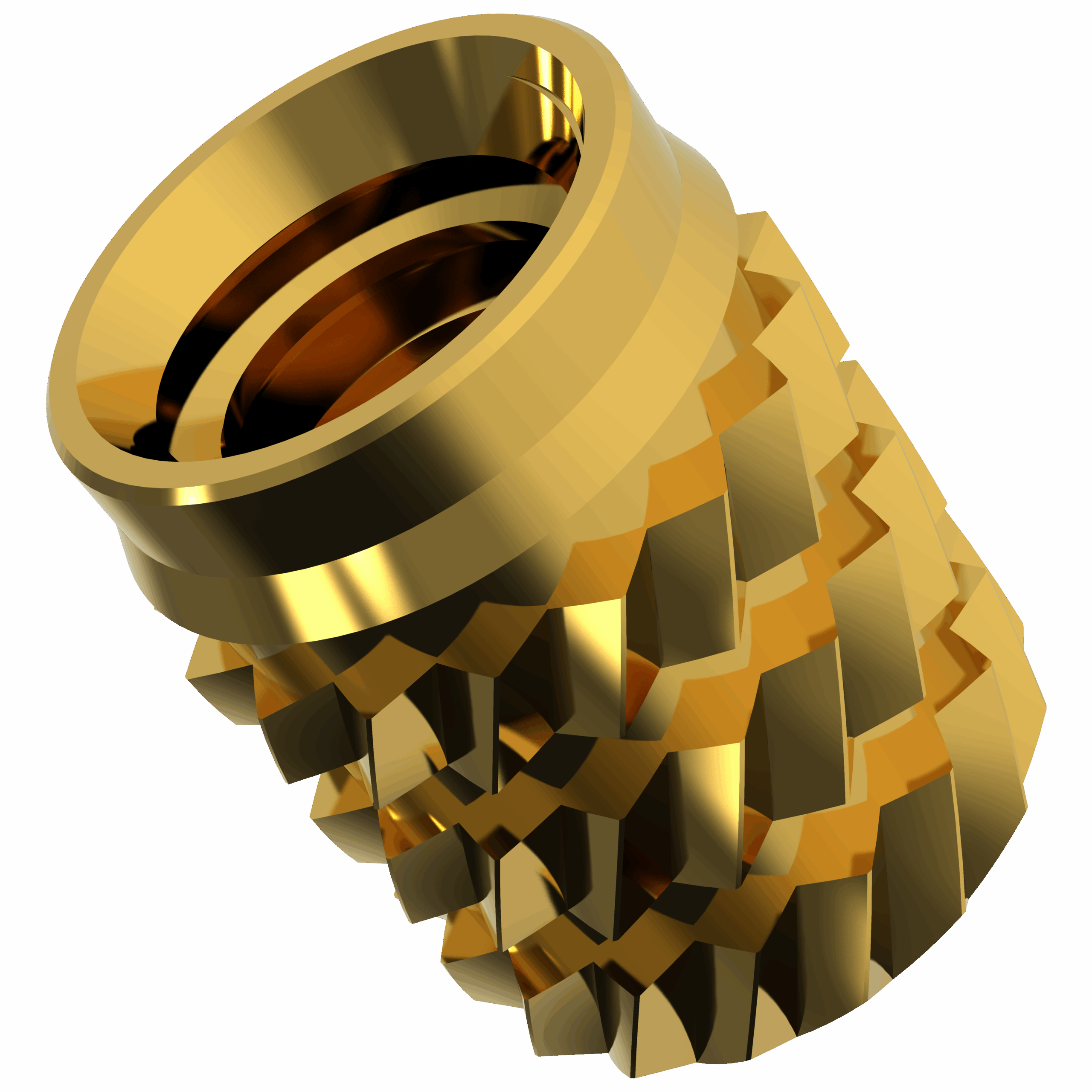

SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
IPB-0420
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
PRESS-IN INSERT, BRASS
Specifications
- Gewinde Code
- 0420
- Thread Size(x Pitch)
- .250-20 (1/4-20)
- Thread Specification
- 2B, ASME B1.1
- Fastener Material
- Brass
- Standard Finish
- Plain
- Product Category
- SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPB
- Product Type
- Einsätze

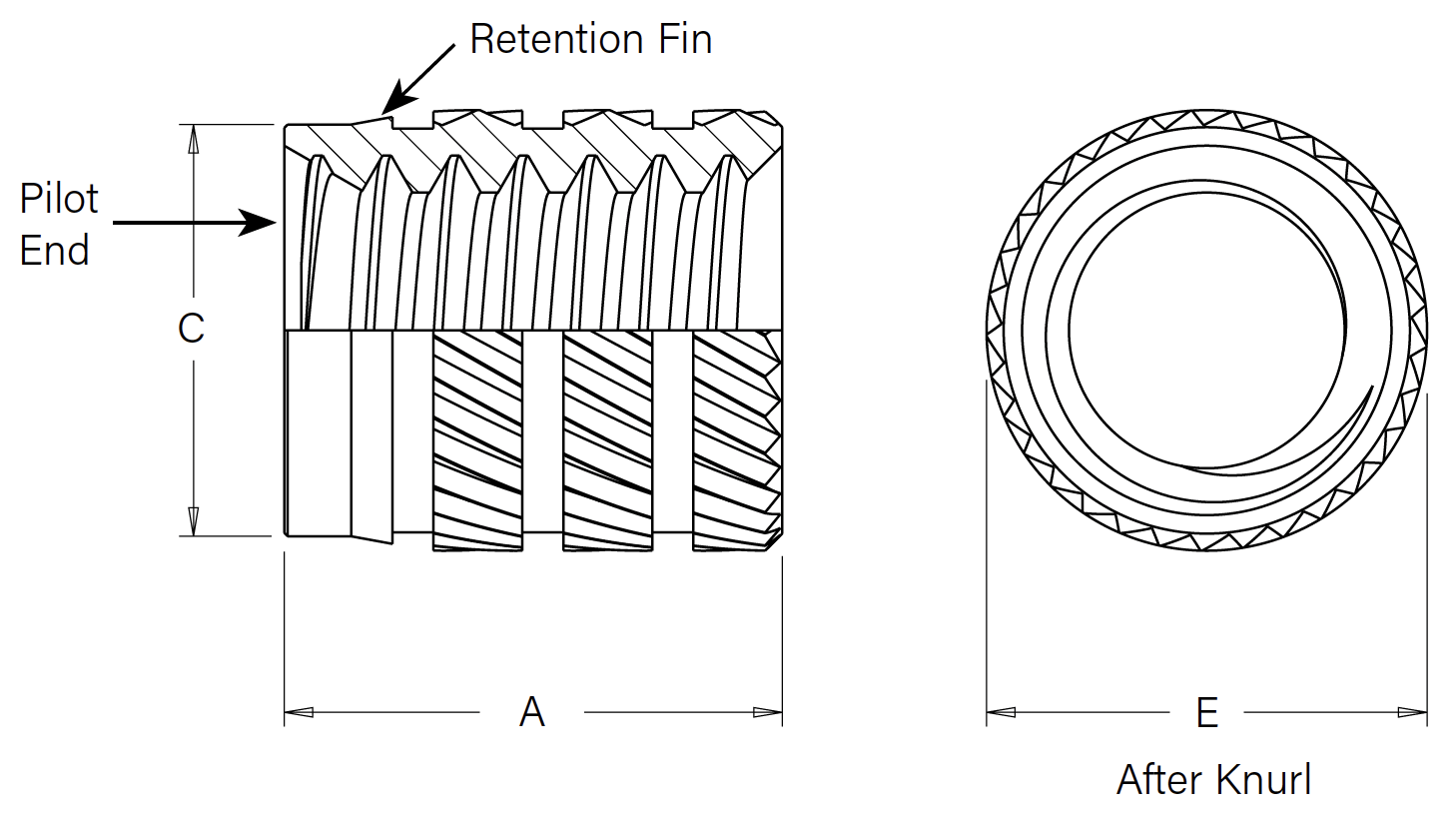

- A ± .005_in
- 0.364in
- E ± .005_in
- 0.322in
- Hole Dia. ± .002_in
- 0.307in
- Min. Hole Depth_in
- 0.394in
- C Max._in
- 0.306in
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (lbs.) | Pullout (lbs.) | Torque-out (in. lbs.) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | 0420 | Polycarbonate | 1000 | 290 | 6.7 |
| IPA, IPB, IPC | 0420 | ABS | 500 | 95.2 | 25.6 |
