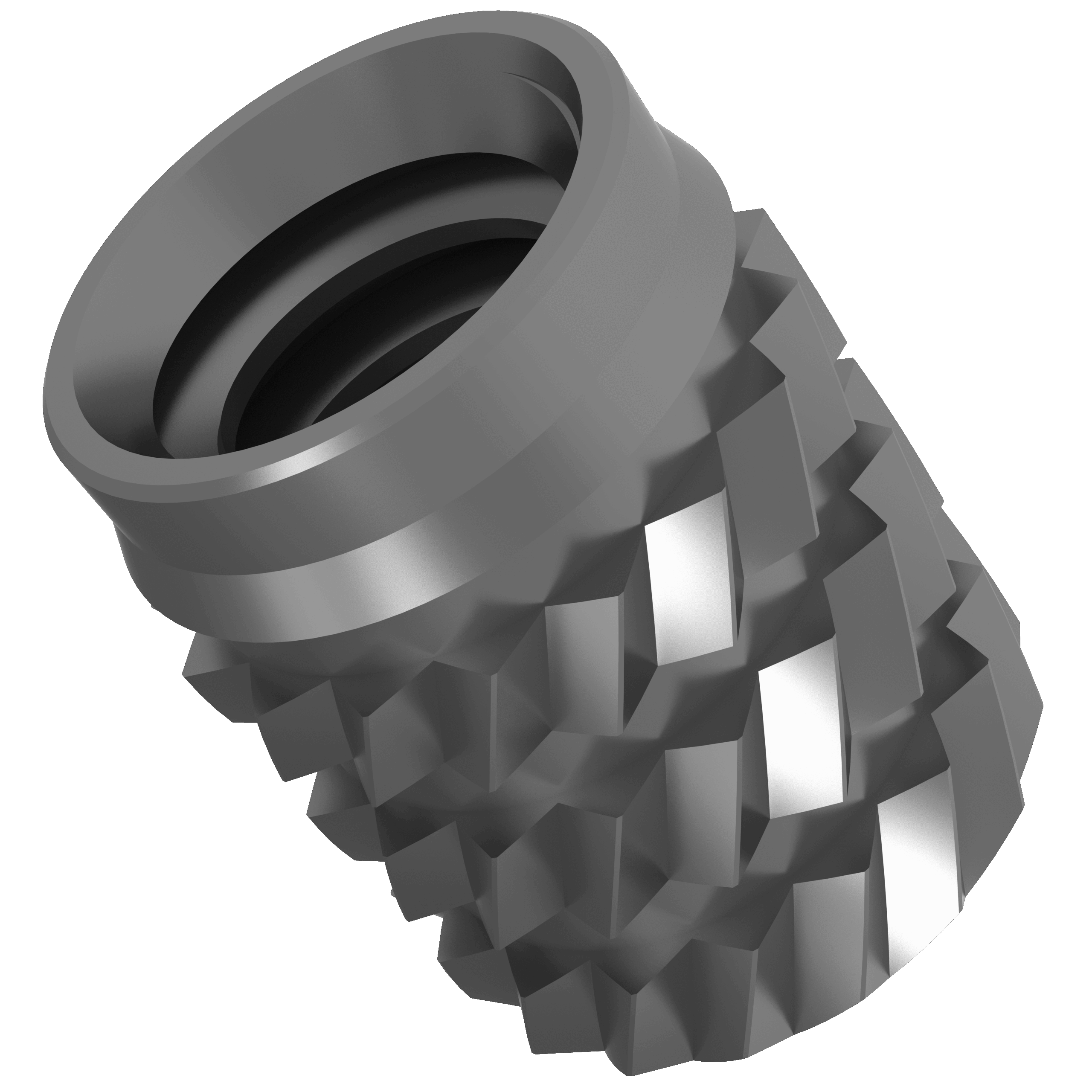

IPC-M2.5
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
IPC-M2.5
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
PRESS-IN INSERT, STAINLESS
Specifications
- Gewinde Code
- M2.5
- Thread Size(x Pitch)
- M2.5 x 0.45
- Thread Specification
- 6H, ASME B1.13M
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- Product Category
- SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPC
- Product Type
- Einsätze

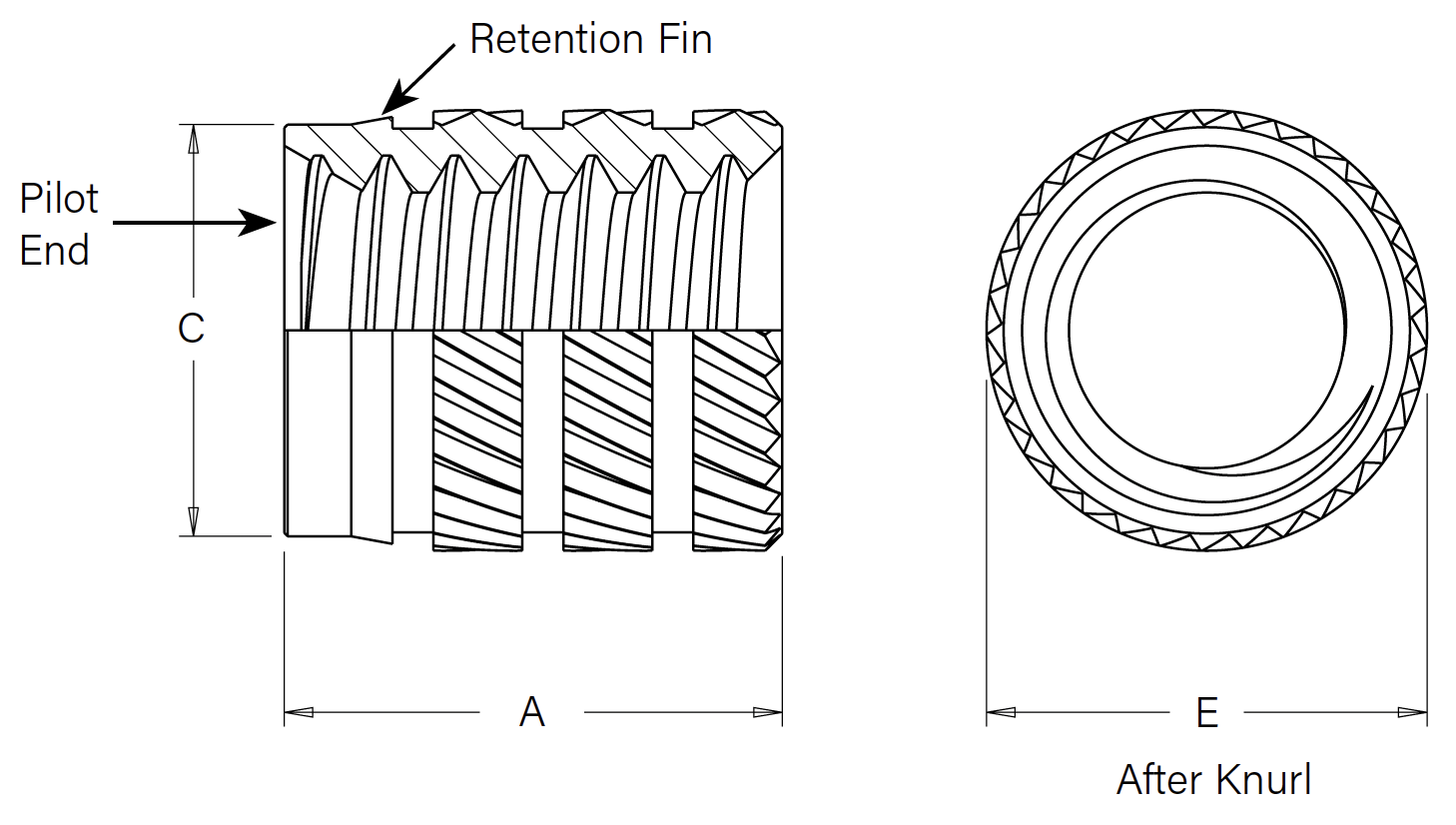

- A ± 0.13_mm
- 5.28mm
- E ± 0.13_mm
- 4.19mm
- Hole Dia. ± 0.05_mm
- 3.81mm
- Min. Hole Depth_mm
- 6.05mm
- C Max._mm
- 3.78mm
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (kN) | Pullout (N) | Torque-out (N•m) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | M3 | ABS | 1.3 | 257 | 0.49 |
| IPA, IPB, IPC | M3 | Polycarbonate | 2.7 | 337 | 1.42 |
