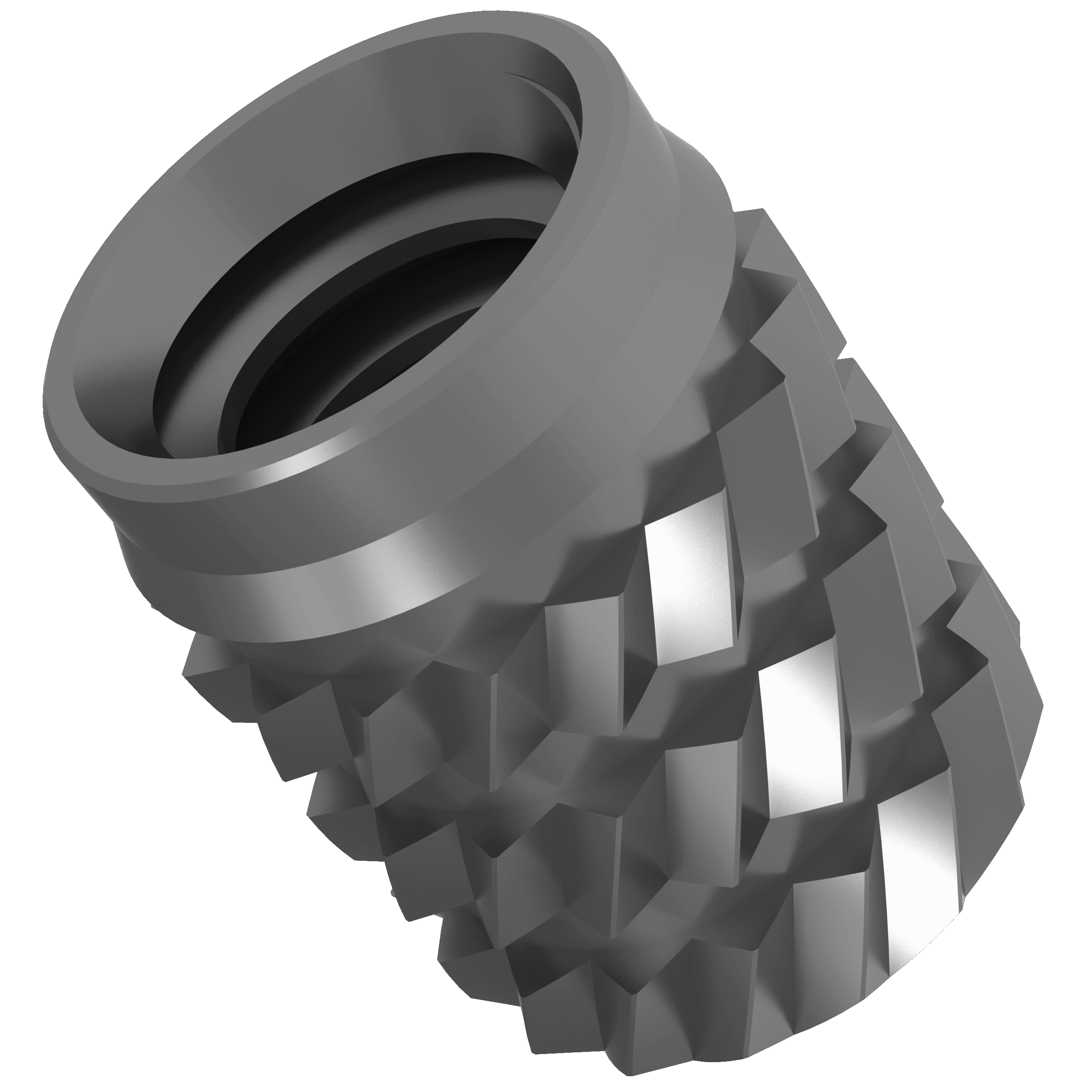

IPC-M2
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
IPC-M2
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
PRESS-IN INSERT, STAINLESS
Specifications
- Gewinde Code
- M2
- Thread Size(x Pitch)
- M2 x 0.4
- Thread Specification
- 6H, ASME B1.13M
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- Product Category
- SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPC
- Product Type
- Einsätze

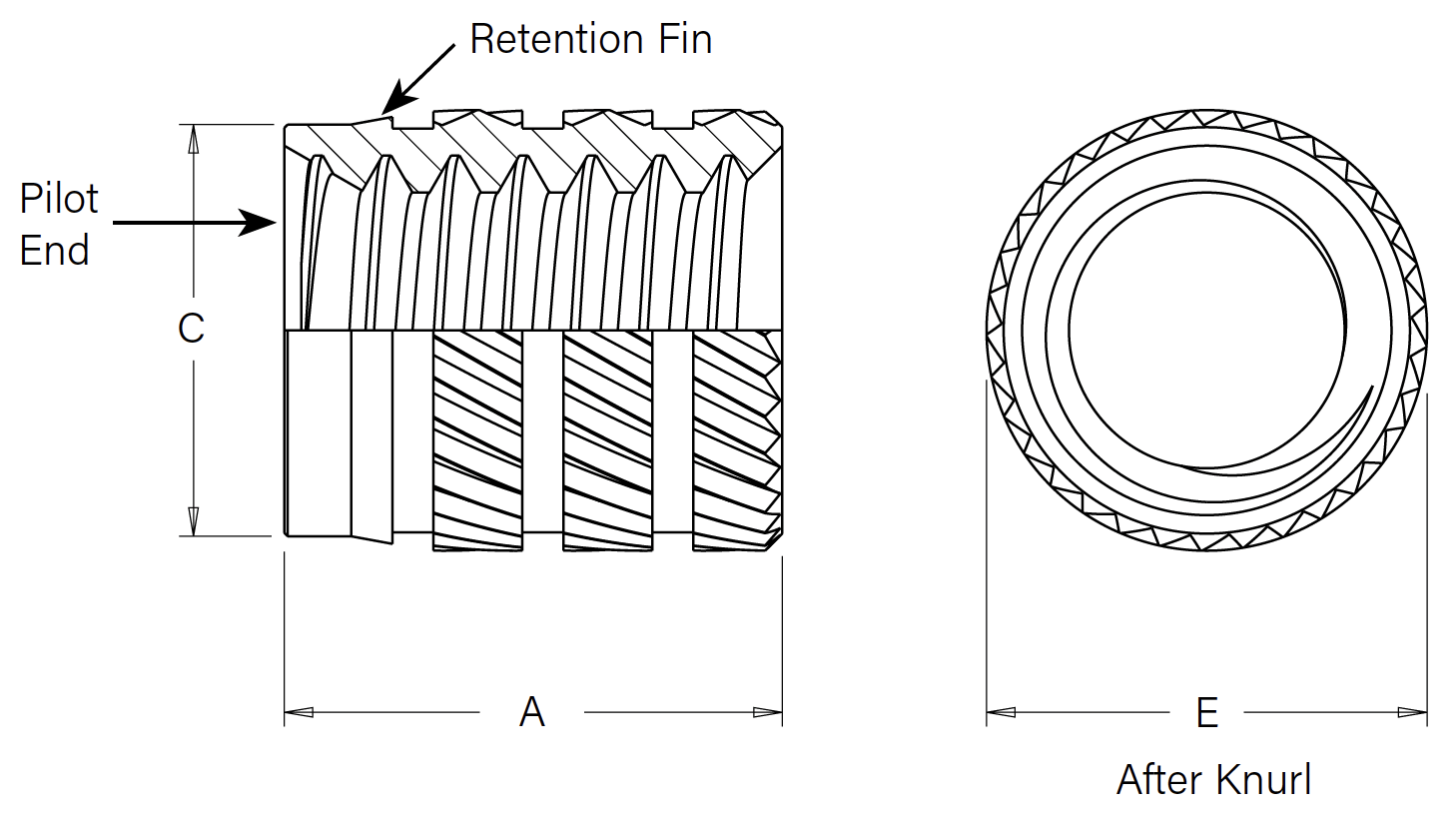

- A ± 0.13_mm
- 3.99mm
- E ± 0.13_mm
- 3.4mm
- Hole Dia. ± 0.05_mm
- 3.07mm
- Min. Hole Depth_mm
- 4.75mm
- C Max._mm
- 3.05mm
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (kN) | Pullout (N) | Torque-out (N•m) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | M2 | ABS | 1.1 | 57 | 0.35 |
| IPA, IPB, IPC | M2 | Polycarbonate | 2.25 | 288 | 0.75 |
