IPFB-832

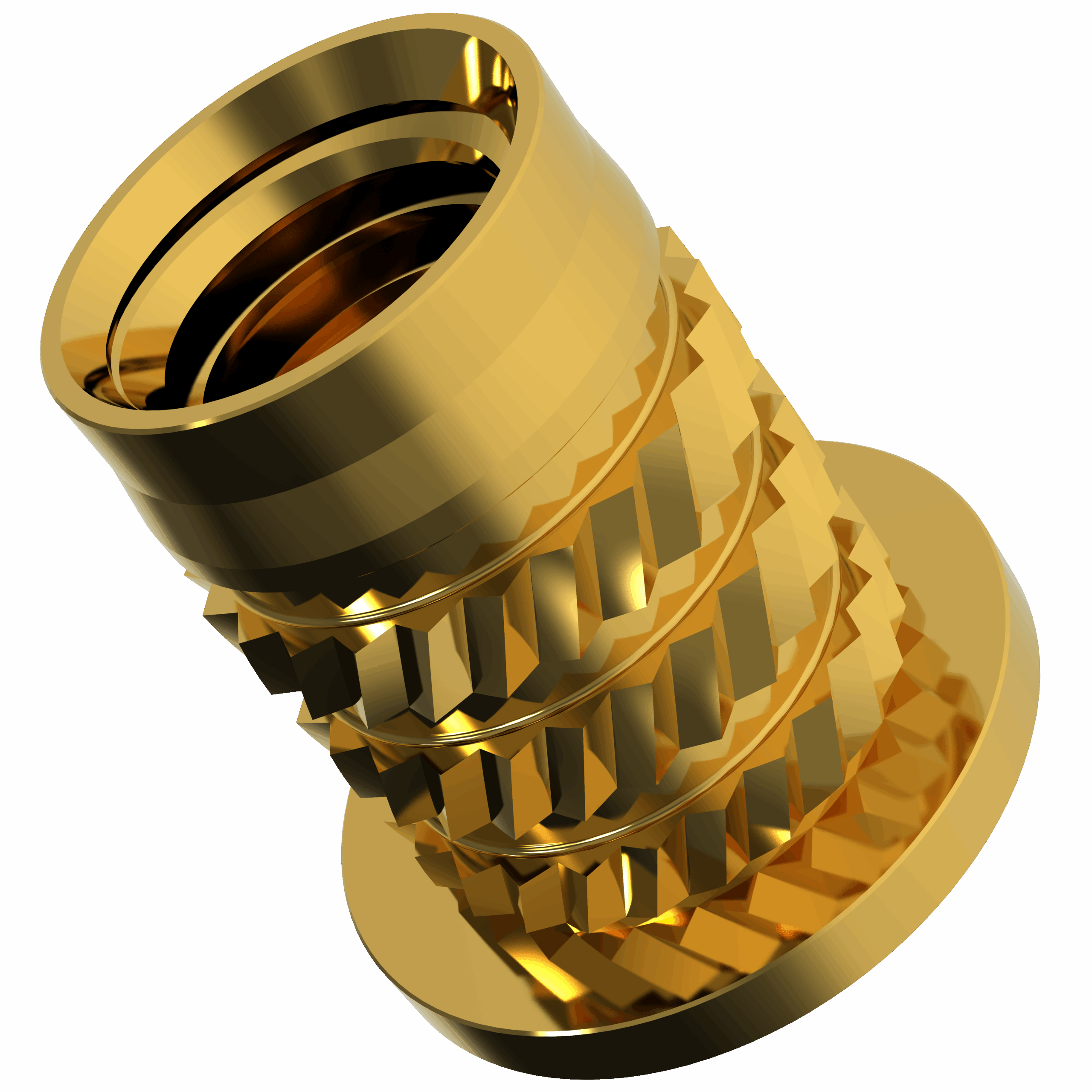

SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
IPFB-832
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
PRESS IN INSERT, BRASS
Specifications
- Gewinde Code
- 832
- Thread Size(x Pitch)
- .164-32 (#8-32)
- Thread Specification
- 2B, ASME B1.1
- Fastener Material
- Brass
- Standard Finish
- Plain
- Product Category
- SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPFB
- Product Type
- Einsätze

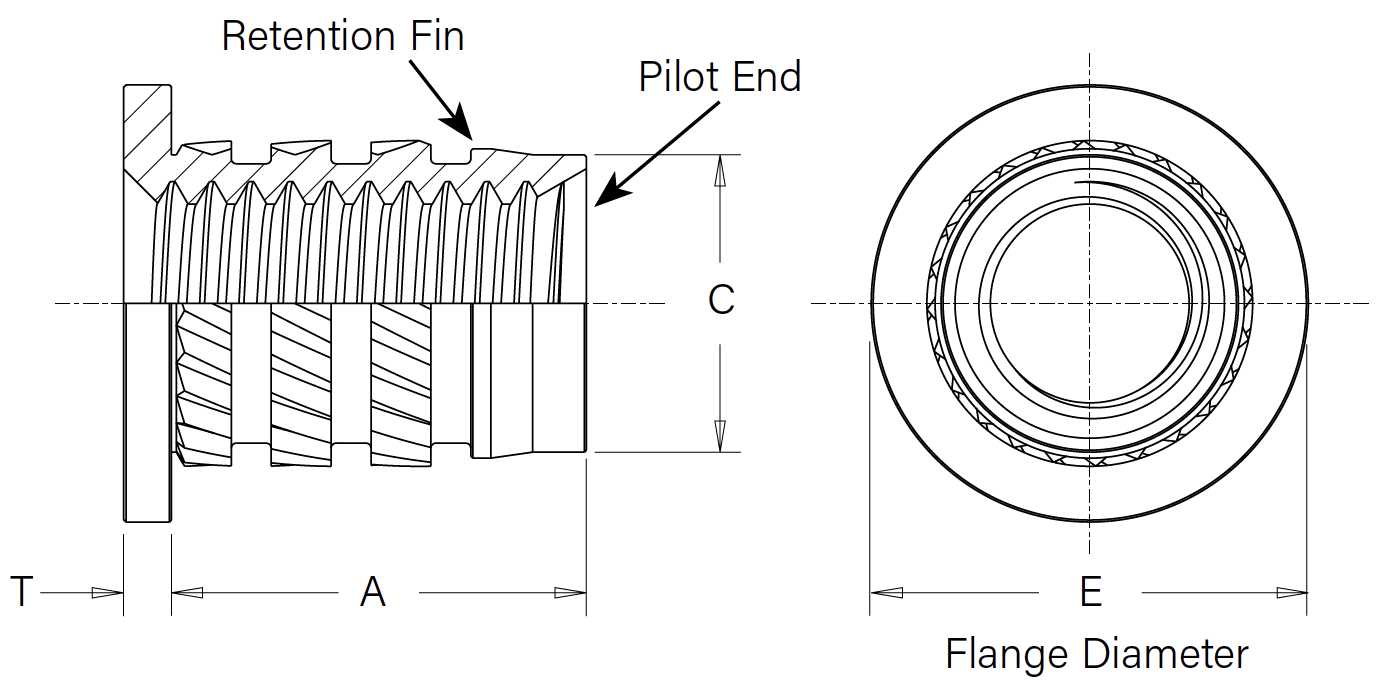

- A ± .005_in
- 0.292in
- E ± .005_in
- 0.25in
- Hole Dia. ± .002_in
- 0.213in
- Min. Hole Depth_in
- 0.322in
- C Max._in
- 0.212in
- T ± .005_in
- 0.04in
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (lbs.) | Pullout (lbs.) | Torque-out (in. lbs.) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | 832 | Polycarbonate | 700 | 256 | 47.2 |
| IPA, IPB, IPC | 832 | ABS | 400 | 72.7 | 20.8 |
