IPFB-M3.5
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
IPFB-M3.5
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC

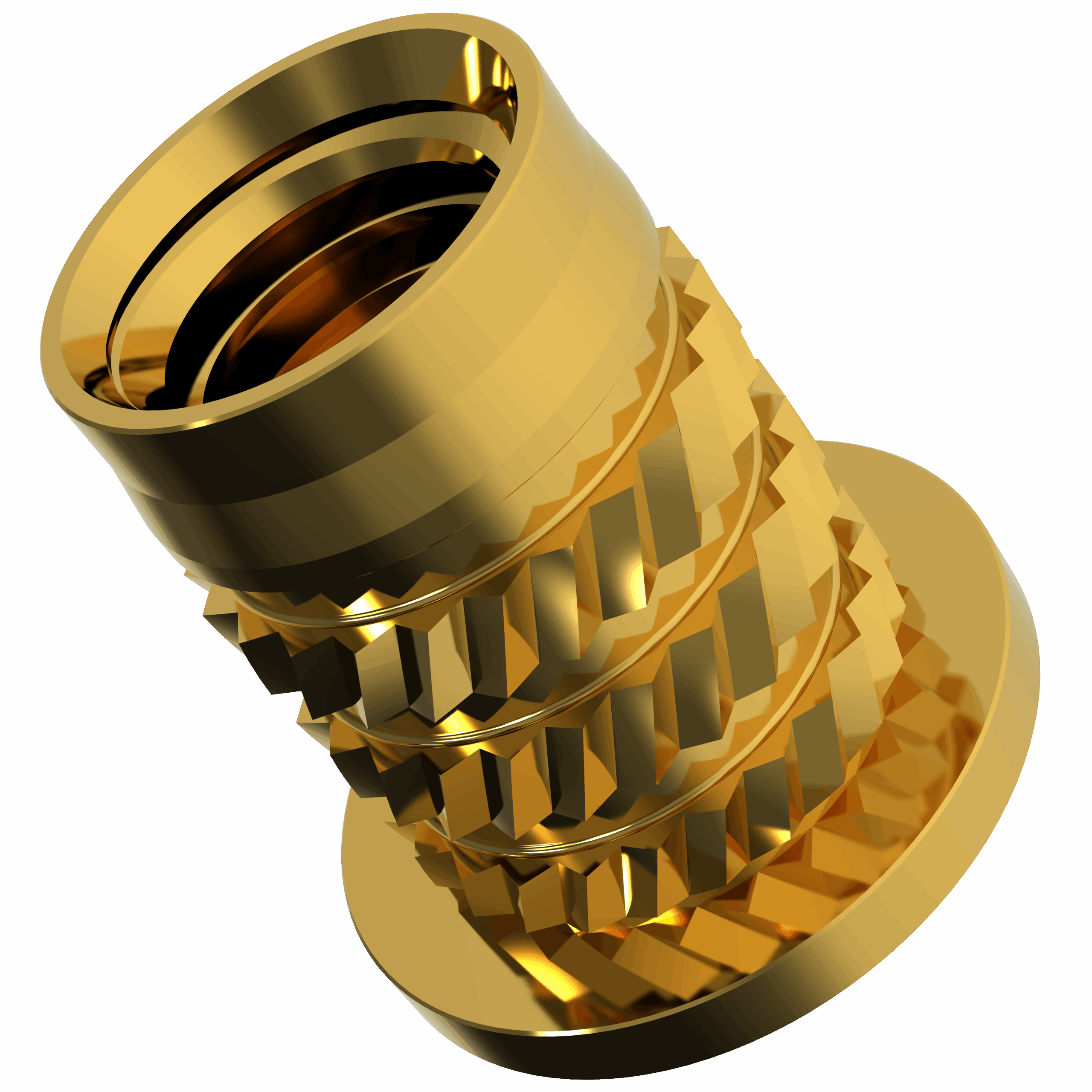

PRESS IN INSERT, BRASS
Specifications
- Gewinde Code
- M3.5
- Thread Size(x Pitch)
- M3.5 x 0.6
- Thread Specification
- 6H, ASME B1.13M
- Fastener Material
- Brass
- Standard Finish
- Plain
- Product Category
- SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPFB
- Product Type
- Einsätze

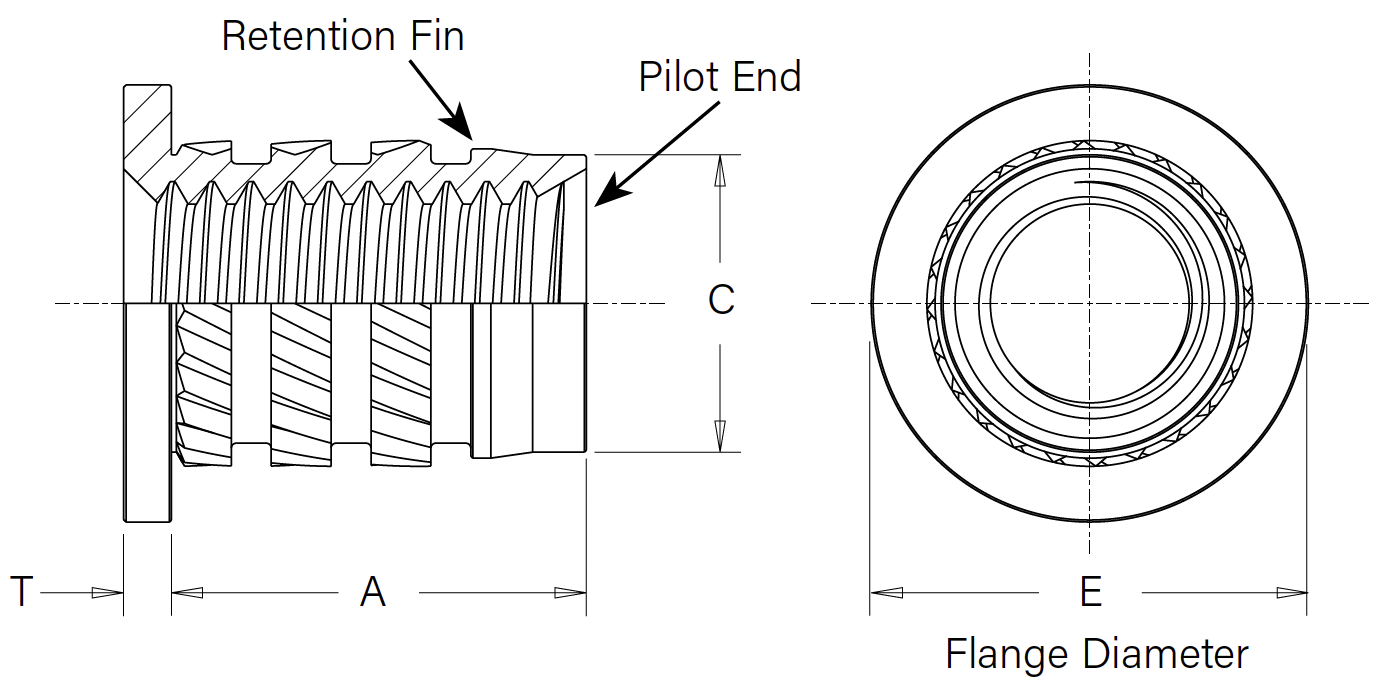

- A ± 0.13_mm
- 6.27mm
- E ± 0.13_mm
- 5.54mm
- Hole Dia. ± 0.05_mm
- 4.62mm
- Min. Hole Depth_mm
- 7.04mm
- C Max._mm
- 4.6mm
- T ± 0.13_mm
- 0.86mm
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (kN) | Pullout (N) | Torque-out (N•m) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | M3.5 | ABS | 1.5 | 307 | 1.3 |
| IPA, IPB, IPC | M3.5 | Polycarbonate | 2.8 | 929 | 2.9 |
