IPFB-M6
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
IPFB-M6
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
PRESS IN INSERT, BRASS
Specifications
- Gewinde Code
- M6
- Thread Size(x Pitch)
- M6 x 1
- Thread Specification
- 6H, ASME B1.13M
- Fastener Material
- Brass
- Standard Finish
- Plain
- Product Category
- SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPFB
- Product Type
- Einsätze

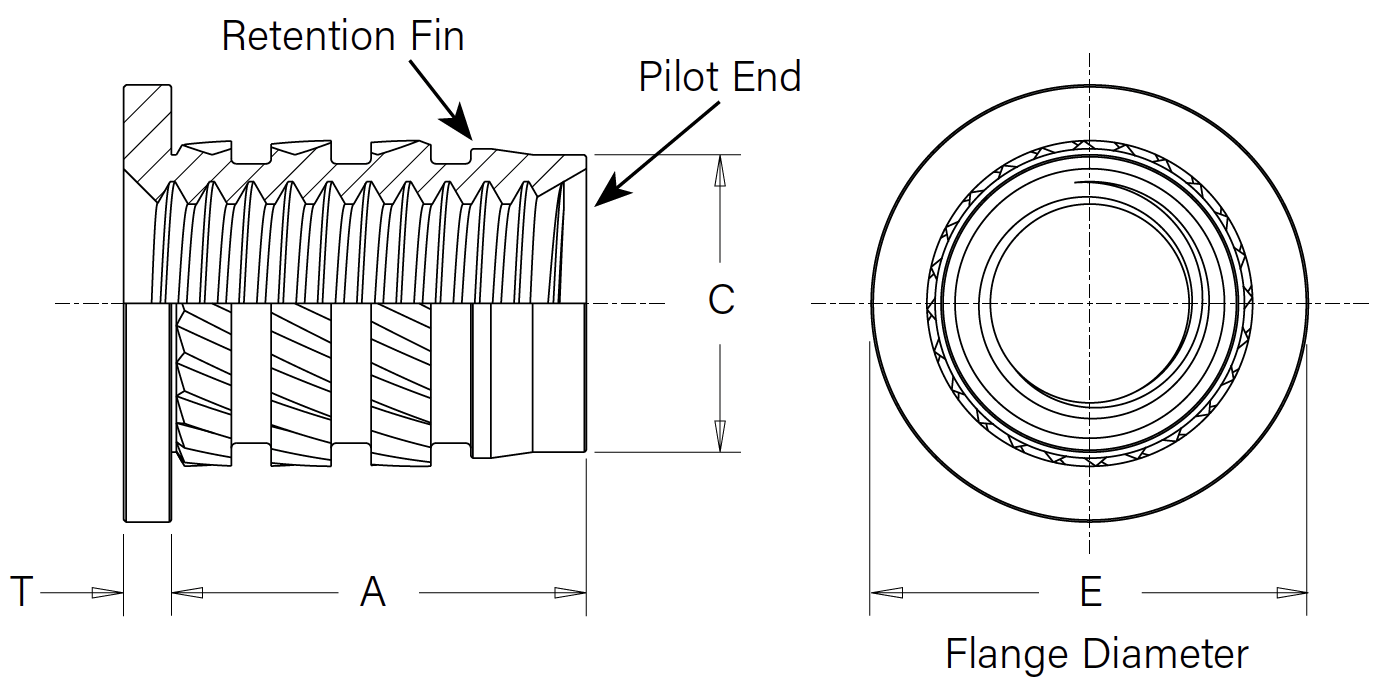

- A ± 0.13_mm
- 9.25mm
- E ± 0.13_mm
- 9.53mm
- Hole Dia. ± 0.05_mm
- 7.8mm
- Min. Hole Depth_mm
- 10mm
- C Max._mm
- 7.77mm
- T ± 0.13_mm
- 1.63mm
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (kN) | Pullout (N) | Torque-out (N•m) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | M6 | ABS | 2.2 | 424 | 2.89 |
| IPA, IPB, IPC | M6 | Polycarbonate | 4.45 | 1290 |
