IPB-M4

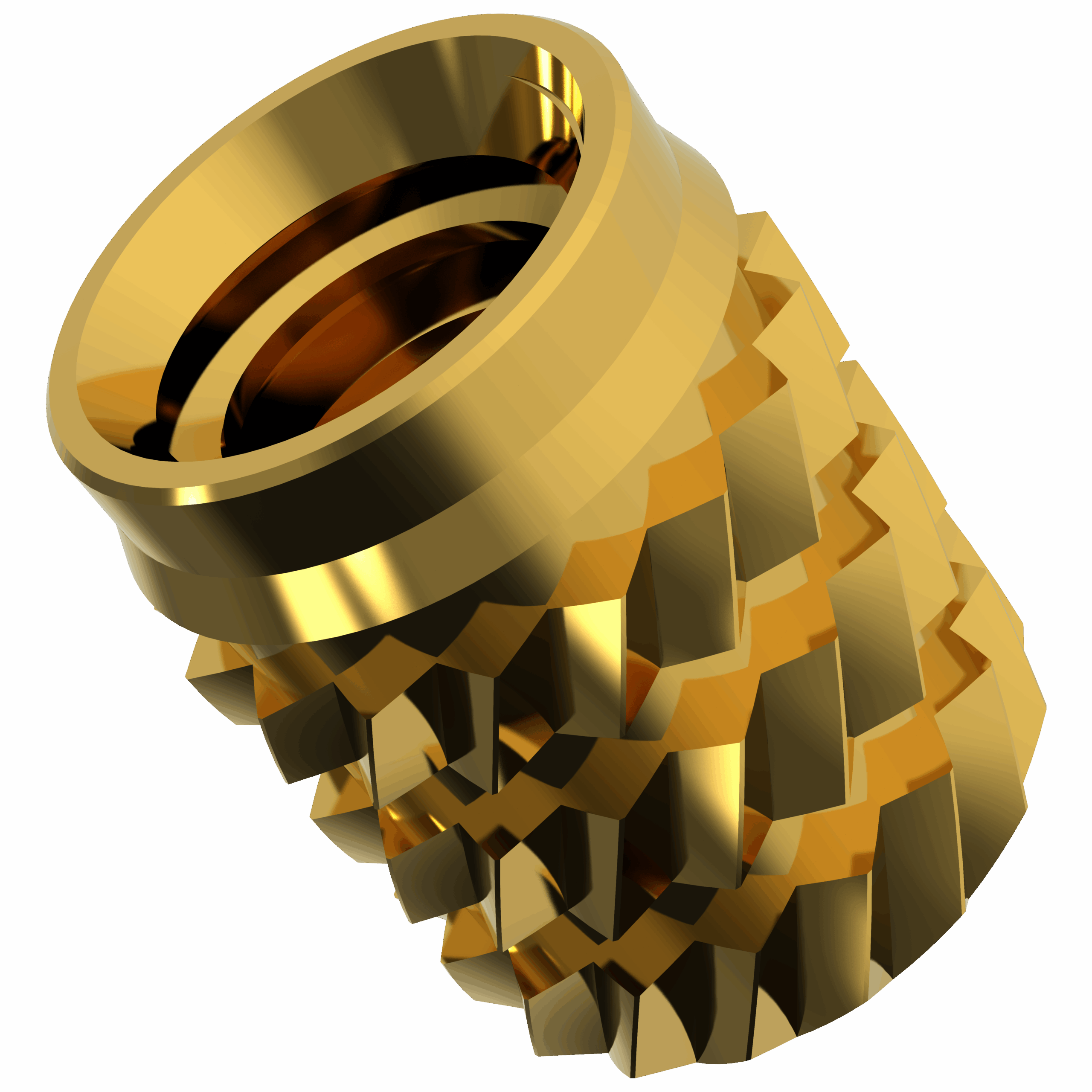

SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
IPB-M4
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
PRESS-IN INSERT, BRASS
Specifications
- Thread Code
- M4
- Thread Size(x Pitch)
- M4 x 0.7
- Thread Specification
- 6H, ASME B1.13M
- Fastener Material
- Brass
- Standard Finish
- Plain
- Product Category
- SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPB
- Product Type
- Inserts

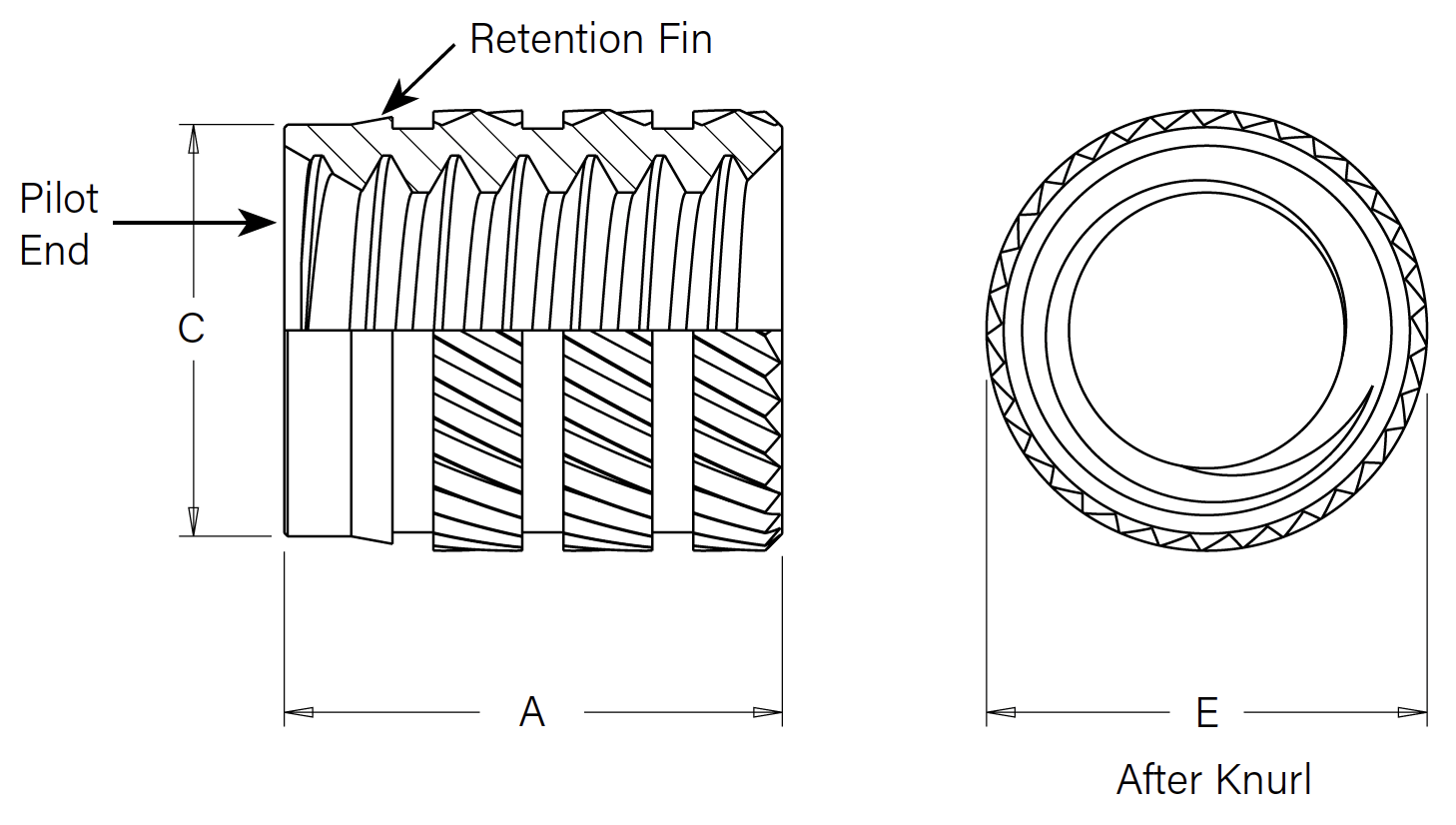

- A ± 0.13_mm
- 7.42mm
- E ± 0.13_mm
- 5.79mm
- Hole Dia. ± 0.05_mm
- 5.41mm
- Min. Hole Depth_mm
- 8.18mm
- C Max._mm
- 5.38mm
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (kN) | Pullout (N) | Torque-out (N•m) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | M4 | ABS | 1.8 | 324 | 2.35 |
| IPA, IPB, IPC | M4 | Polycarbonate | 3.1 | 1140 | 5.33 |
