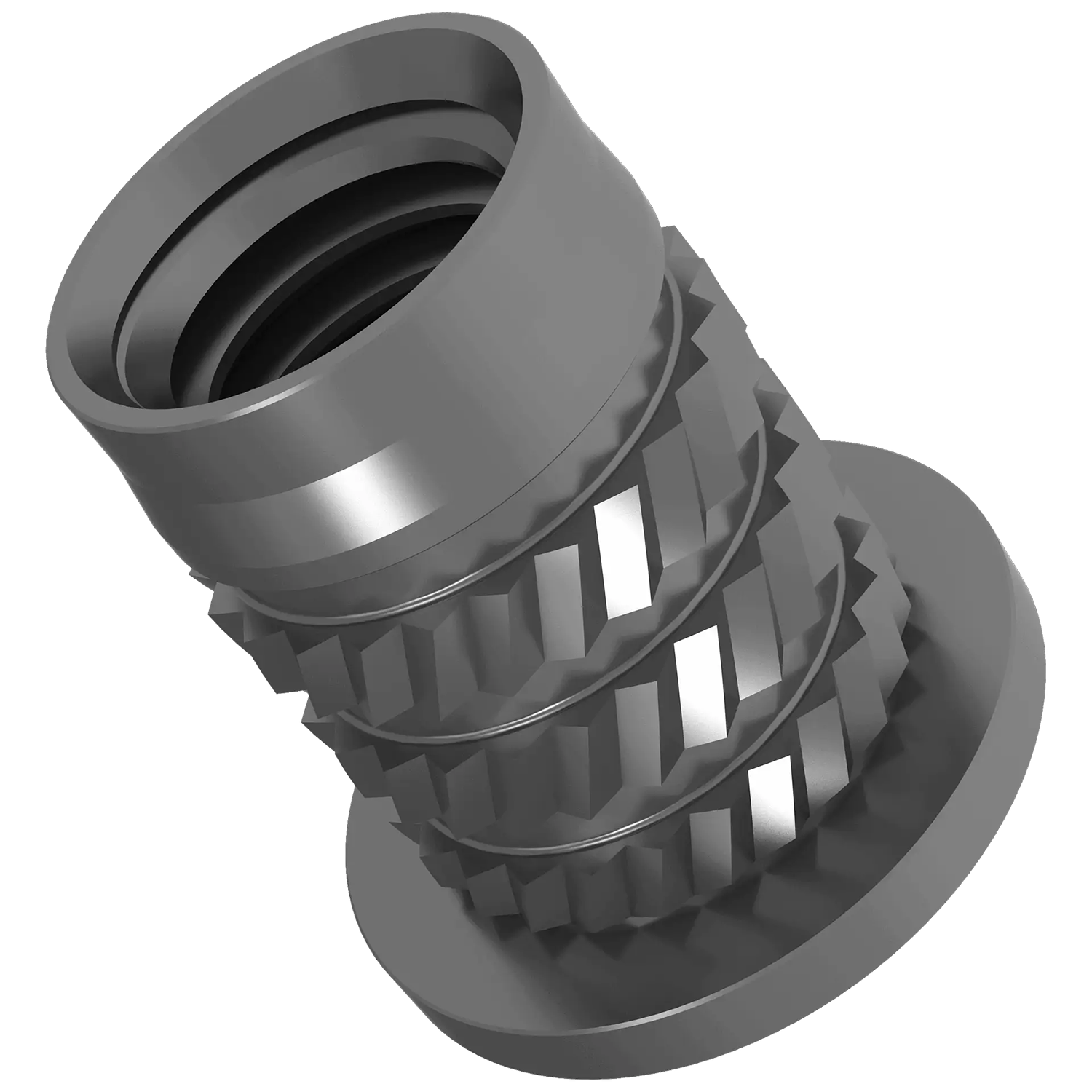

IPFC-632
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
IPFC-632
SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
PRESS IN INSERT, STAINLESS
Specifications
- Thread Code
- 632
- Thread Size(x Pitch)
- .138-32 (#6-32)
- Thread Specification
- 2B, ASME B1.1
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- Product Category
- SI® Solid Body Press-in Insert, Flanged – Types IPFA, IPFB and IPFC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPFC
- Product Type
- Inserts

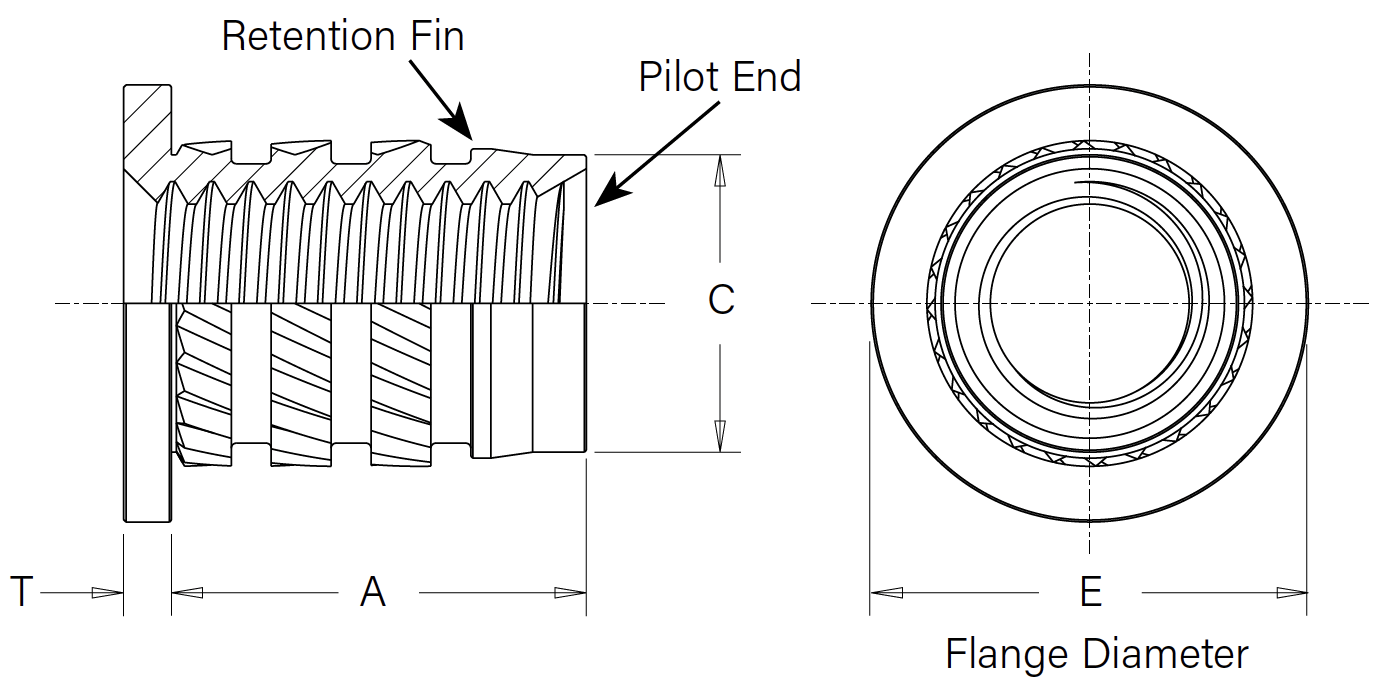

- A ± .005_in
- 0.247in
- E ± .005_in
- 0.218in
- Hole Dia. ± .002_in
- 0.182in
- Min. Hole Depth_in
- 0.277in
- C Max._in
- 0.181in
- T ± .005_in
- 0.034in
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (lbs.) | Pullout (lbs.) | Torque-out (in. lbs.) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | 632 | ABS | 350 | 68.9 | 11.5 |
| IPA, IPB, IPC | 632 | Polycarbonate | 625 | 209 | 25.7 |
