MRPS-1.2MM-400 - PEM® GHOST™ Floating Pins - MRPS™, MRHPS™ - PEM® Fastening Products

Para uso en láminas de dureza: HRB 70 / HB 125 or less
Categoría del producto: PEM® GHOST™ Floating Pins – MRPS™, MRHPS™
Axial Float – Total (in): 0.006
Axial Float – Total (mm): 0.15
G Air Gap RAnge (mm): 3.58 – 3.89
G Air Gap Range (in): 0.141 – 0.153
L – Length ± .008_in: 0.157in
L – Length ± 0.2_mm: 4mm
Min Sheet Thickness – Cosmetic (in): 0.065
Min Sheet Thickness – Cosmetic (mm): 1.65
Min Sheet Thickness – Non-cosmetic (in): 0.04
Min Sheet Thickness – Non-cosmetic (mm): 1
Radial Float – All Directions From Center / Total (in): 0.011
Radial Float – All Directions From Center / Total (mm): 0.28

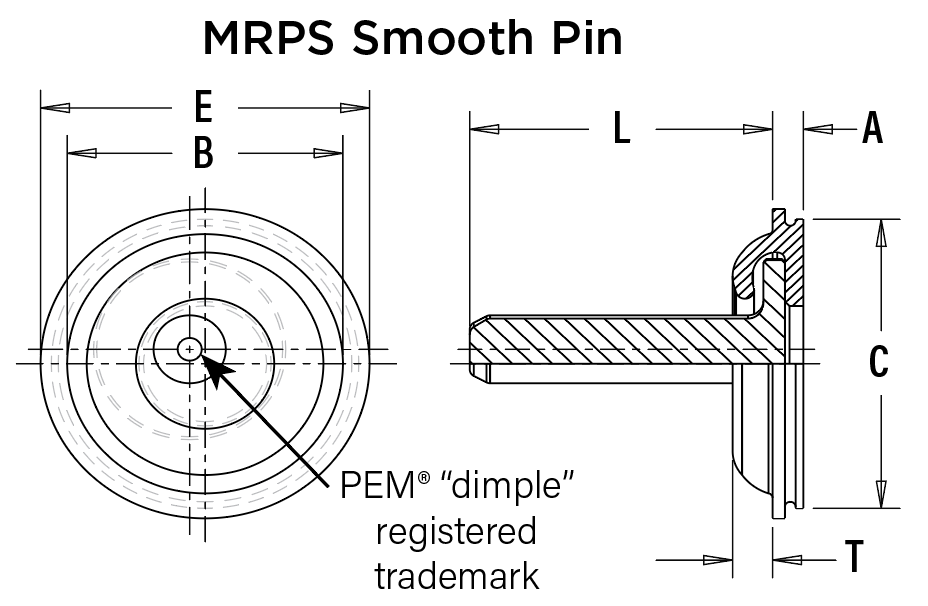

B Max._in: 0.183in
B Max._mm: 4.65mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.201in
E Nom._in: 0.214in
E Nom._mm: 5.44mm
Min. Depth of Blind Hole_in: 0.023in
Min. Depth of Blind Hole_mm: 0.59mm
Min. Dist. Hole C/L to Edge_in: 0.142in
Dist. Mín orificio cercano al borde_mm: 3.61mm
C Max._in: 0.2in
C Máx._mm: 5.08mm
Pin Dia. Code: 1.2MM
T Max._in: 0.029in
T Max._mm: 0.74mm

Test Sheet Material	FLOATING PIN TYPE	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
											MRFS	MRPS	1.2MM	5.3 LBS / 24 N	0.024 in / 0.6 mm	28.7 LBS / 128 N	0.071 in / 1.8 mm
.039” / 1mm 5052-H34 Aluminum	MRPS	1.2MM	0.185	4.7	H-187-GB185	H-108-0019L	8026790	975200048	450 lbs. / 2 kN	39.5 lbs / 176 N
