IPC-256

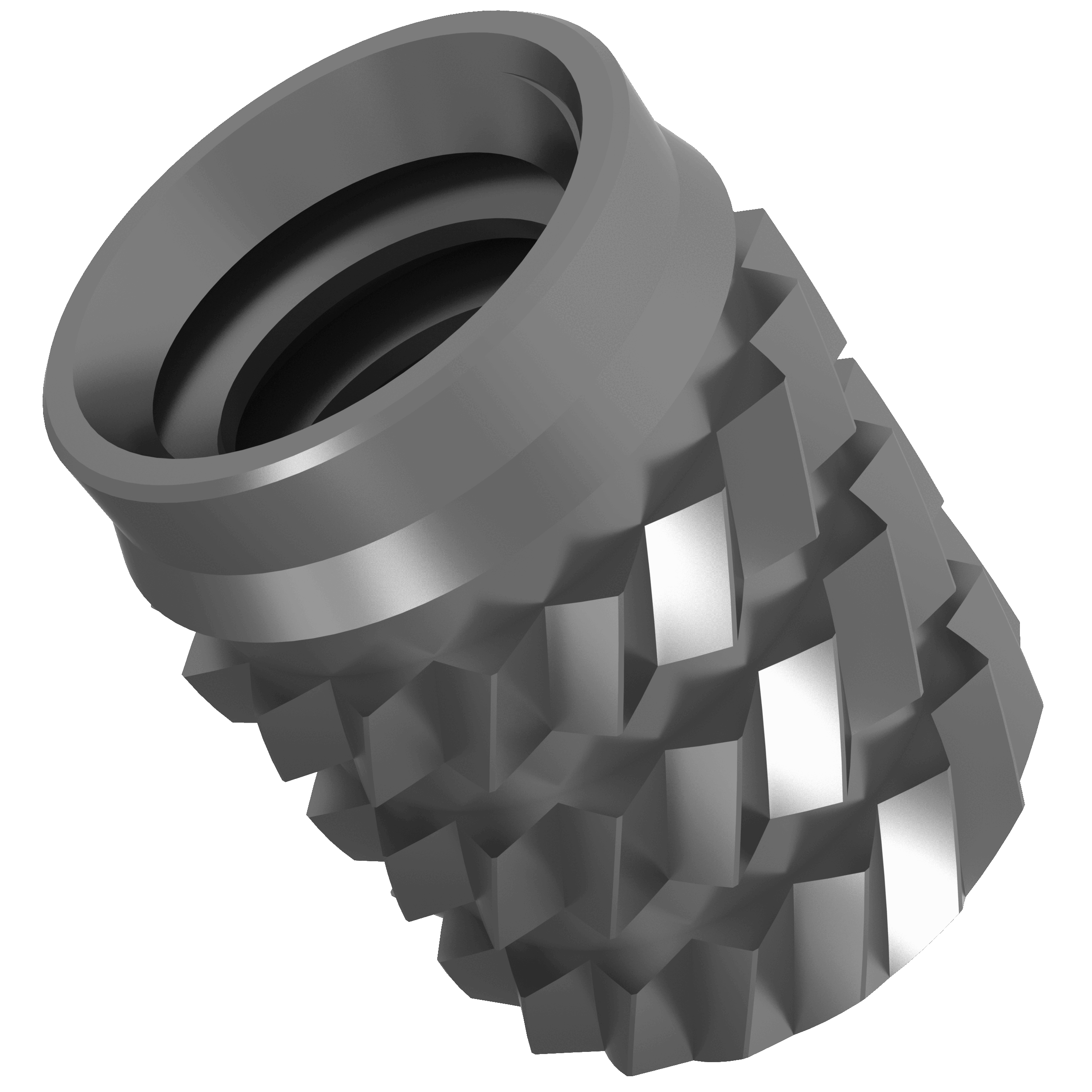

SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
IPC-256
SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
PRESS-IN INSERT, STAINLESS
Specifications
- Thread Code
- 256
- Thread Size(x Pitch)
- .086-56 (#2-56)
- Thread Specification
- 2B, ASME B1.1
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- Product Category
- SI® Solid Body Press-in Insert – Types IPA, IPB and IPC
- Brand
- SI
- Installation Method
- Press-In
- PEM Product Family
- IPC
- Product Type
- Inserts

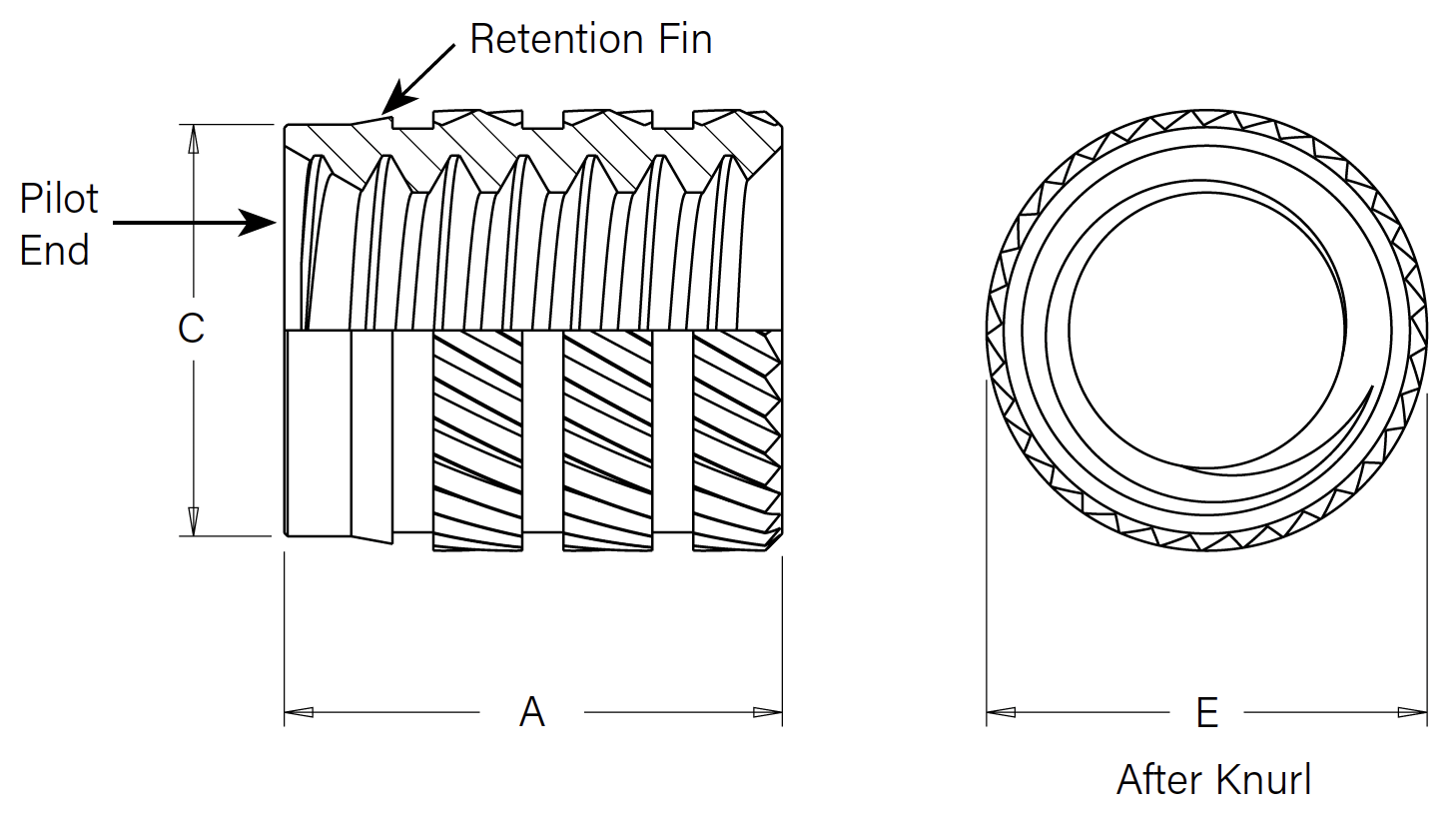

- A ± .005_in
- 0.157in
- E ± .005_in
- 0.134in
- Hole Dia. ± .002_in
- 0.121in
- Min. Hole Depth_in
- 0.187in
- C Max._in
- 0.12in
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Install. Force (lbs.) | Pullout (lbs.) | Torque-out (in. lbs.) |
|---|---|---|---|---|---|
| IPA, IPB, IPC | 256 | ABS | 250 | 12.9 | 3.1 |
| IPA, IPB, IPC | 256 | Polycarbonate | 500 | 64.8 | 6.7 |
