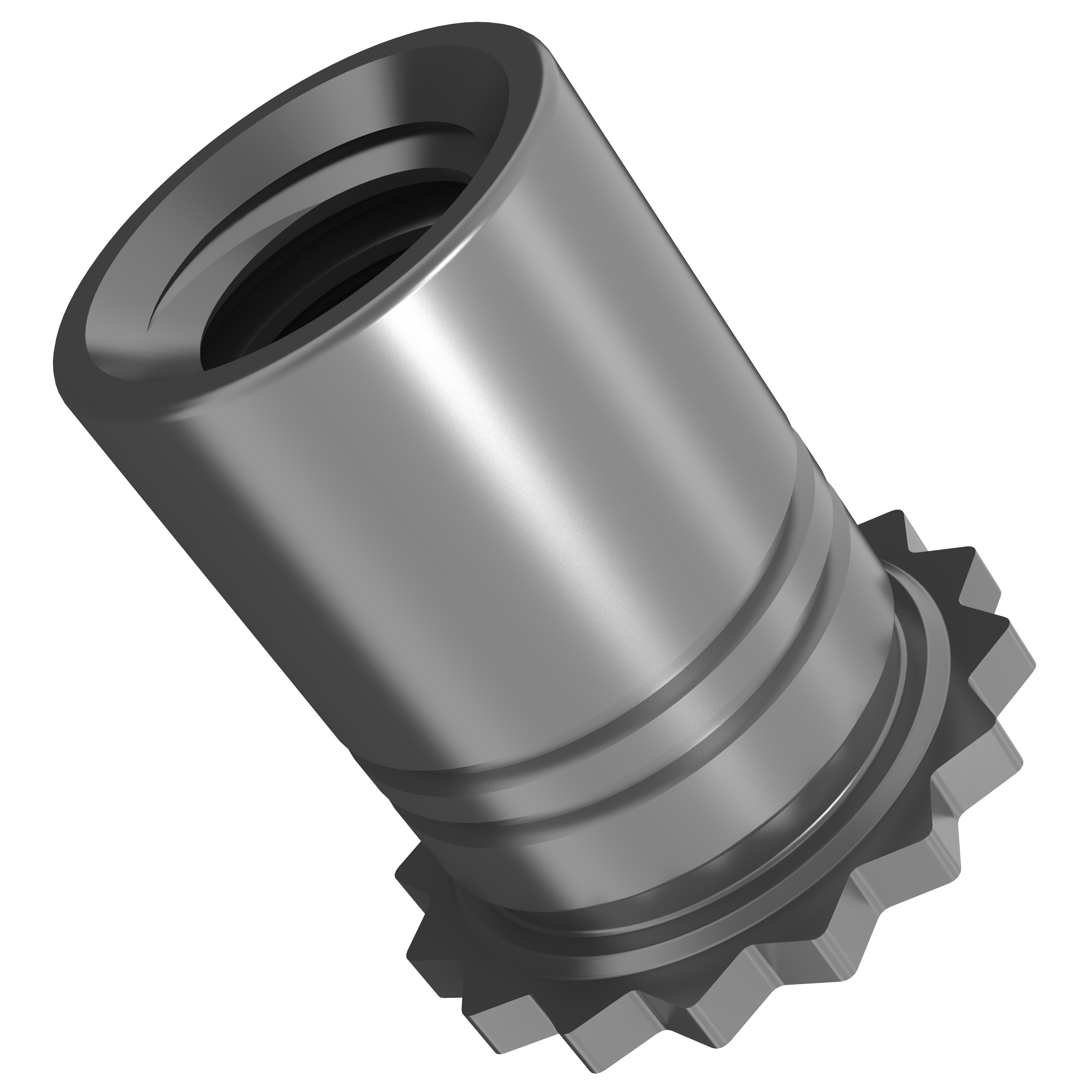

SOK-M3.5-5ZI
Threaded Standoffs for Close-To-Edge Applications – Types SOK, SOKS
SOK-M3.5-5ZI
Threaded Standoffs for Close-To-Edge Applications – Types SOK, SOKS
Specifications
- Thread Code
- M3.5
- For Use in Sheet Hardness
- HRB 80/ HB 150 or less
- Product Category
- Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS – Metric
- Thread Type
- Internal
- Grounding
- Not Grounding
- Hole Size in Sheet +.003 / +0.08mm_mm
- 5.41mm
- Non-Magnetic
- Magnetic
- PEM Product Family
- SO
- Product Type
- Standoffs
- Through Hole/Blind
- Through Hole

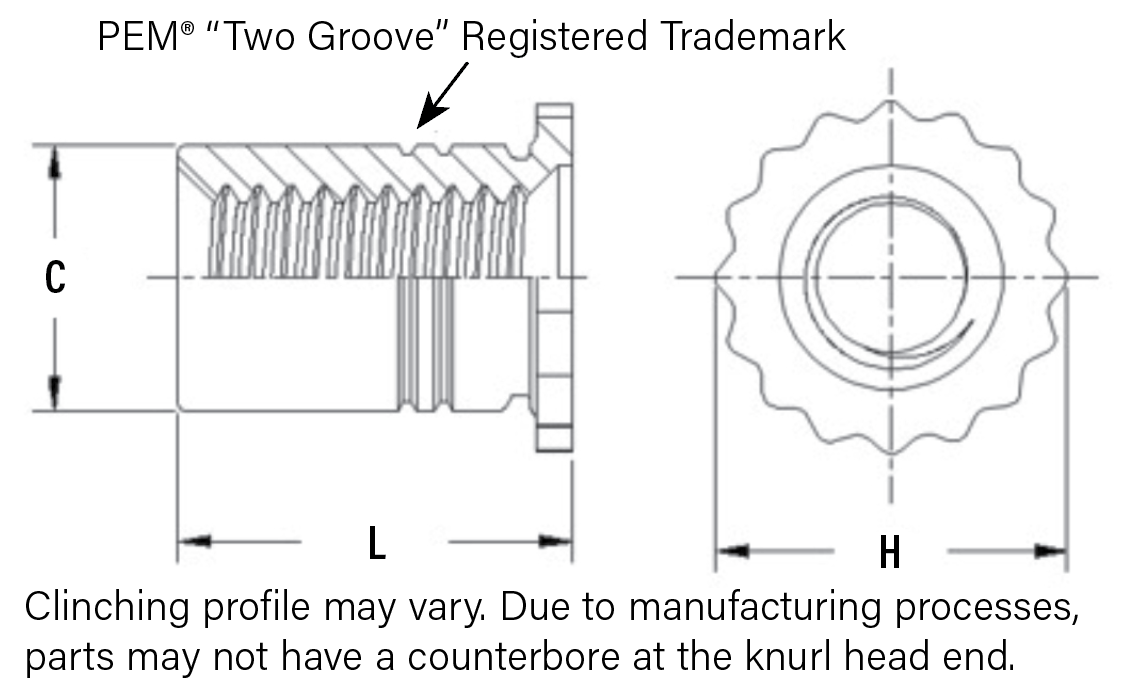

- H – Nom._mm
- 6.4mm
- Hole Size in Sheet + 0.08_mm
- 5.41mm
- L +0.05 -0.13_mm
- 5mm
- Min. Dist. Hole C/L to Edge_mm
- 4.8mm
- C Max._mm
- 5.39mm
- Sheet Thickness
- 0.94 Min.
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Haeger Part Number Anvil | Haeger Part Number Punch | Pemserter Part Number Anvil | Pemserter Part Number Punch | Installation (kN) | PULL THRU (N) | Pushout (N) | Standoff Material | Torque-out (N•m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SOK | M3.5 | 1 mm Cold-rolled Steel | H-109-6/M3.5L | H-108-0020L | 970200012300 | 975200048 | 13.4 | 2450 | 900 | Steel | 2.15 |
| SOK | M3.5 | 1 mm 5052-H34 Aluminum | H-109-6/M3.5L | H-108-0020L | 970200012300 | 975200048 | 6.7 | 1750 | 760 | Steel | 2.15 |
