CKS-256-2
PEM® CASTSERT® Press-in Inserts
CKS-256-2
PEM® CASTSERT® Press-in Inserts

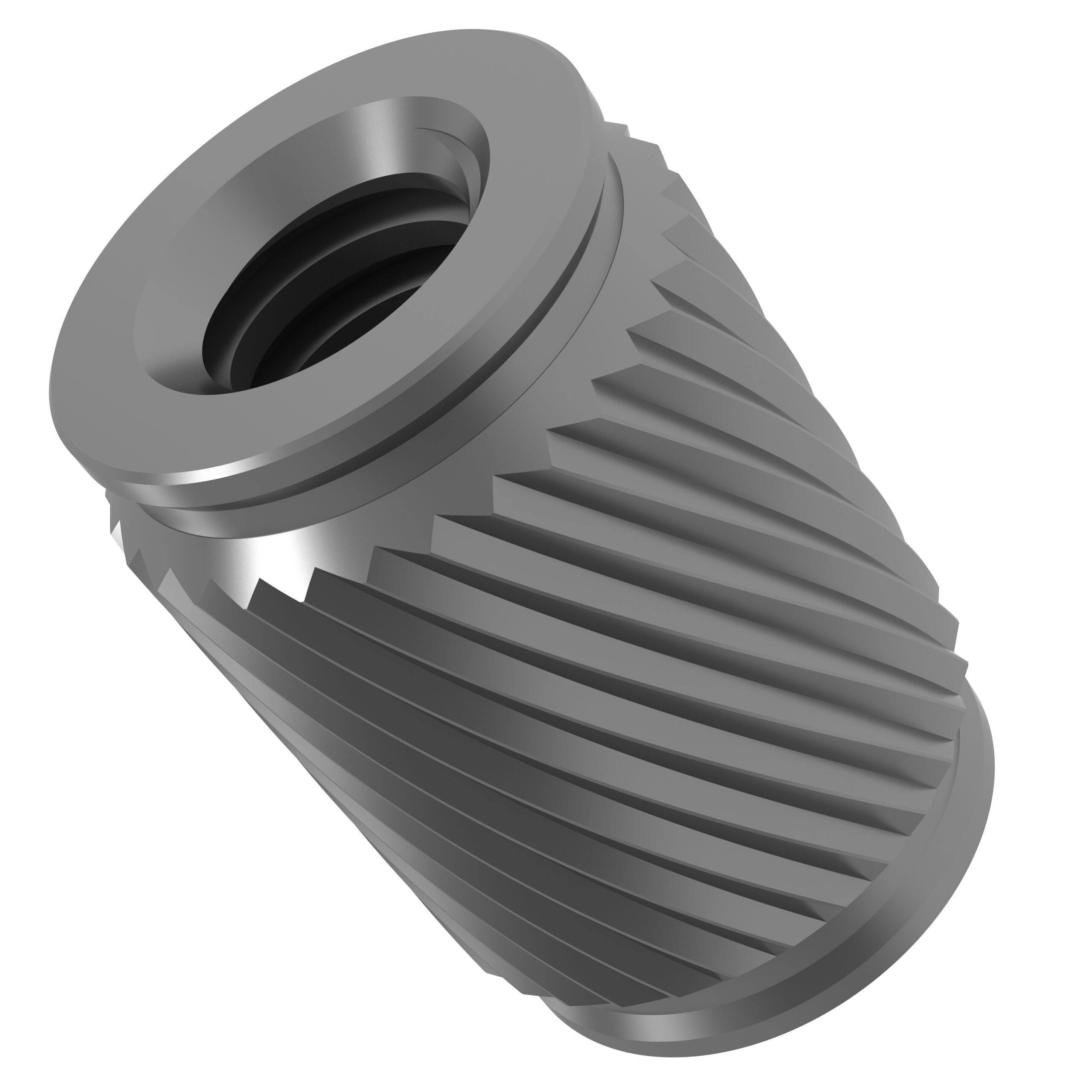

For Castings and Soft Metals HRB 70 / HB 125 or less PEM® 300 Series Stainless Steel CASTSERT® inserts provide strong, durable metal threads in soft metals and die-cast alloys. The simple press-in and rapid installation process for these inserts uses a flat punch and anvil to install all sizes and lengths, approximately 80% faster than other methods.
- Designed for flush installation with flat punch and anvil into blind holes or thru-holes
- Process cost savings vs. coil inserts or thread tapping
- Installed into drilled holes or as-cast holes with low draft angle
- Pilot for rapid seating and self-alignment
- Symmetric for auto-feed capability
Fastener drawings and models are available at devaws.pemnet.com
仕様
- Thread Code.jp
- 256
- ねじ径
- .086-56 (#2-56)
- ねじの仕様
- 2B, ASME B1.1
- ファスナー材質
- 300 Series Stainless Steel
- 表面処理
- Passivated and/or tested per ASTM A380
- For Use in Sheet Hardness
- For Use in Castings and Soft Metals HRB 70 / HB 125 or Less
- Product Category
- PEM® CASTSERT® Press-in Inserts – Unified
- Thread Type
- Internal

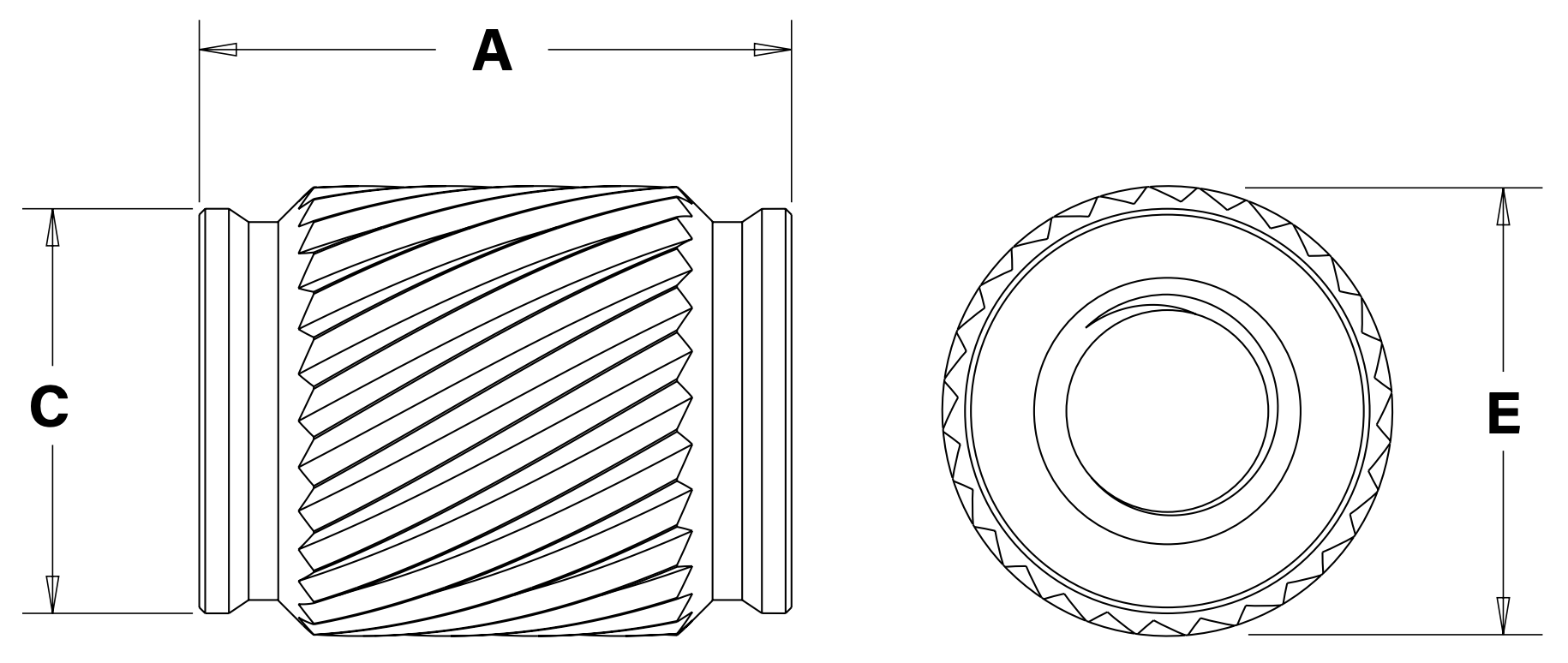

- After Knurl E Nom_in
- 0.196in
- ブランド
- PEM
- Length A ± .005_in
- 0.25in
- Min. Sheet Thickness R_in
- 0.255in

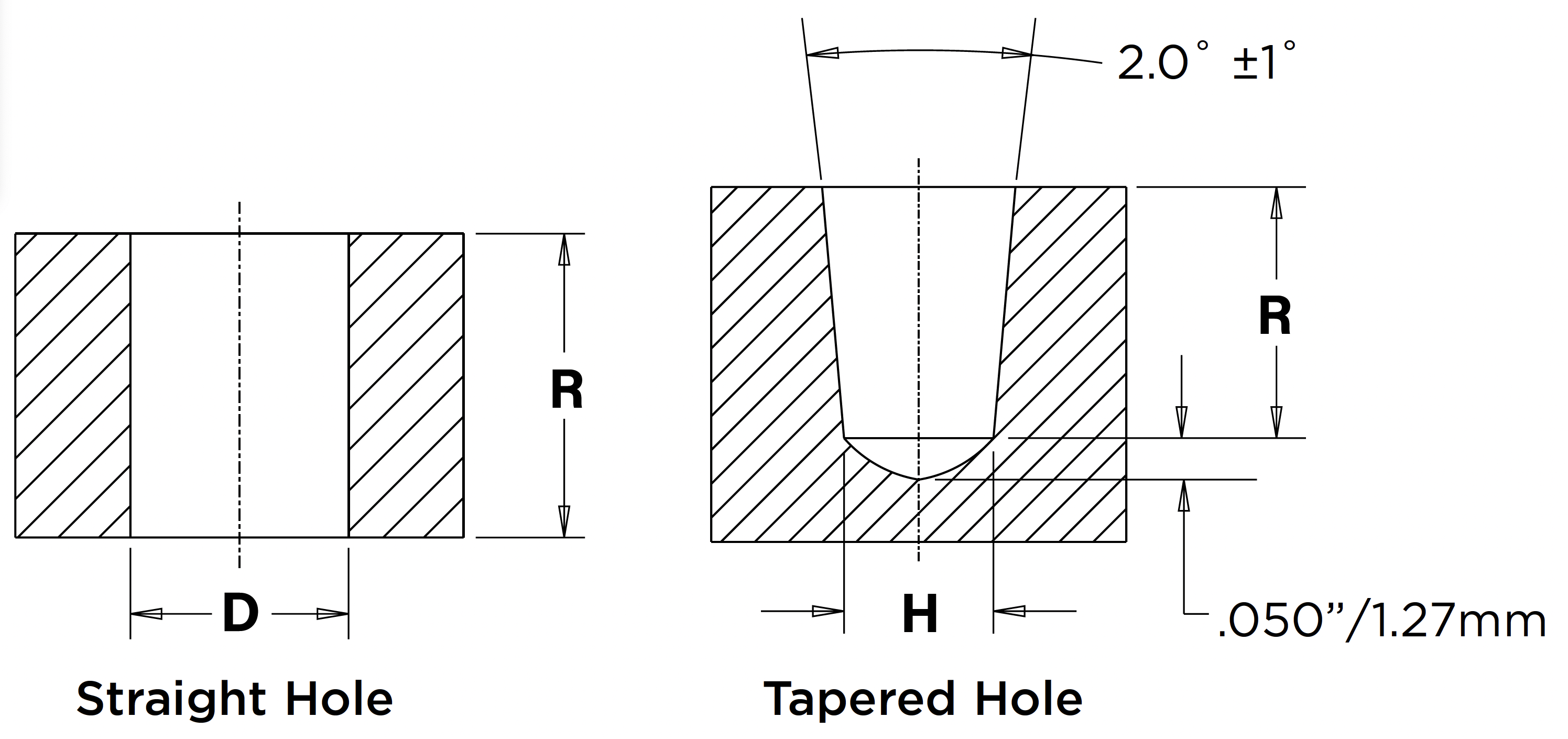

- Min Dia H of Tapered Hole at Length R (in)
- 0.18
- PEM®製品
- CKS
- Pilot C Max._in
- 0.179in
- 製品
- インサート
- Straight Hole Dia. D Tolerance +/- (in)
- .003-.000
- Min. Dist. Hole C/L to Edge_in
- 0.151in
データシート
| Type | Thread Code | Test Sheet Material | Installation (lbs.) | Anvil Dim A (in.) | Anvil Dim B (in.) | Anvil Dim C (in.) | Haeger Part Number Anvil | Haeger Part Number Punch | Length Code | Pullout (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| CKS | 256 | ADC12 Die Cast Aluminum (A383 Equivalent) | 1415 | 3 | 2.5 | 1 | H-108-0020L | H-108-0020L | 2 | 135 |
