PEM® CASTSERT® Press-in Inserts
CKS-M5-2
PEM® CASTSERT® Press-in Inserts

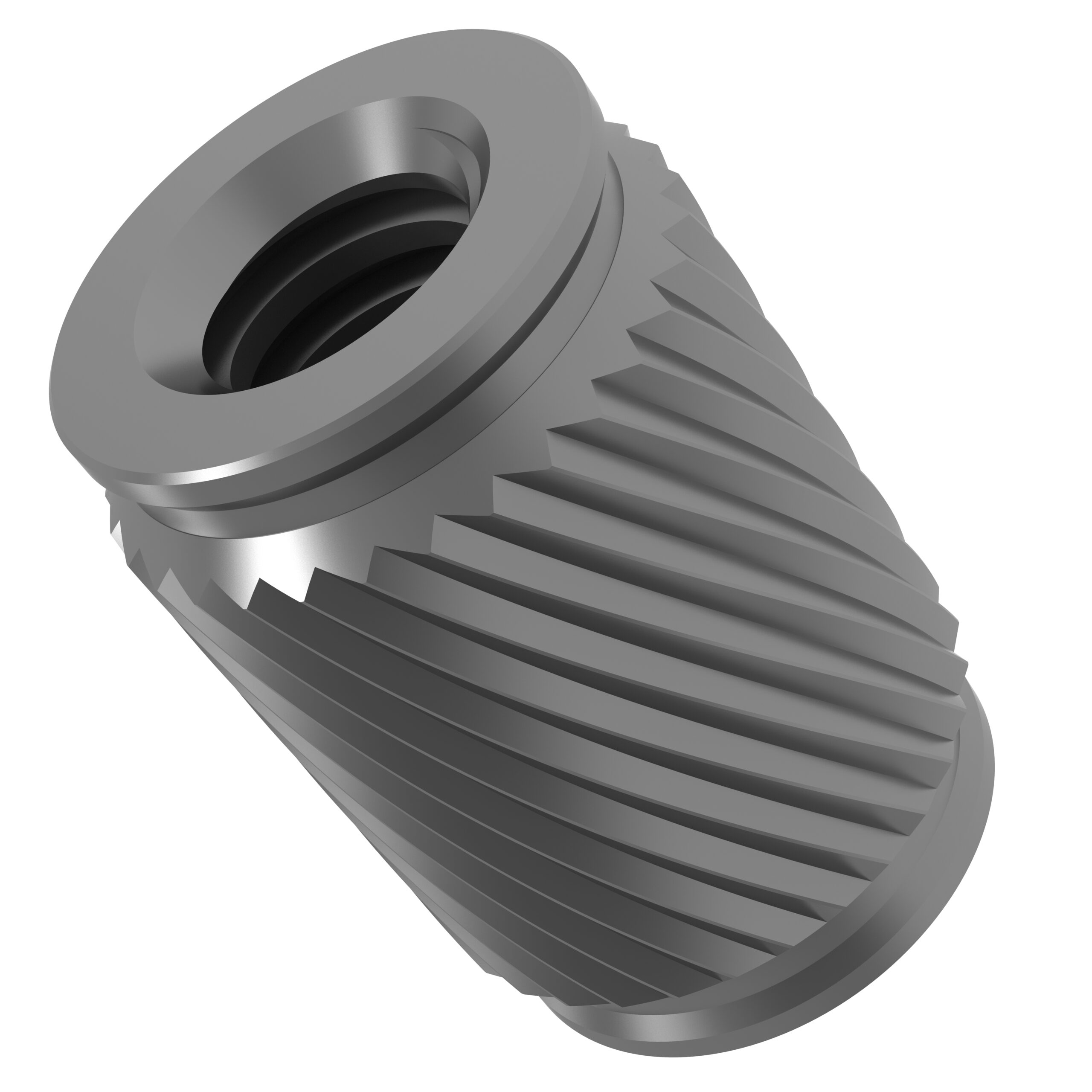

For Castings and Soft Metals HRB 70 / HB 125 or less PEM® 300 Series Stainless Steel CASTSERT® inserts provide strong, durable metal threads in soft metals and die-cast alloys. The simple press-in and rapid installation process for these inserts uses a flat punch and anvil to install all sizes and lengths, approximately 80% faster than other methods.
- Designed for flush installation with flat punch and anvil into blind holes or thru-holes
- Process cost savings vs. coil inserts or thread tapping
- Installed into drilled holes or as-cast holes with low draft angle
- Pilot for rapid seating and self-alignment
- Symmetric for auto-feed capability
Fastener drawings and models are available at devaws.pemnet.com
仕様
- Thread Code.jp
- M5
- ねじ径
- M5 x 0.8
- ねじの仕様
- 6H, ASME B1.13M
- ファスナー材質
- 300 Series Stainless Steel
- 表面処理
- Passivated and/or tested per ASTM A380
- For Use in Sheet Hardness
- For Use in Castings and Soft Metals HRB 70 / HB 125 or Less
- Product Category
- PEM® CASTSERT® Press-in Inserts – Metric
- Thread Type
- Internal

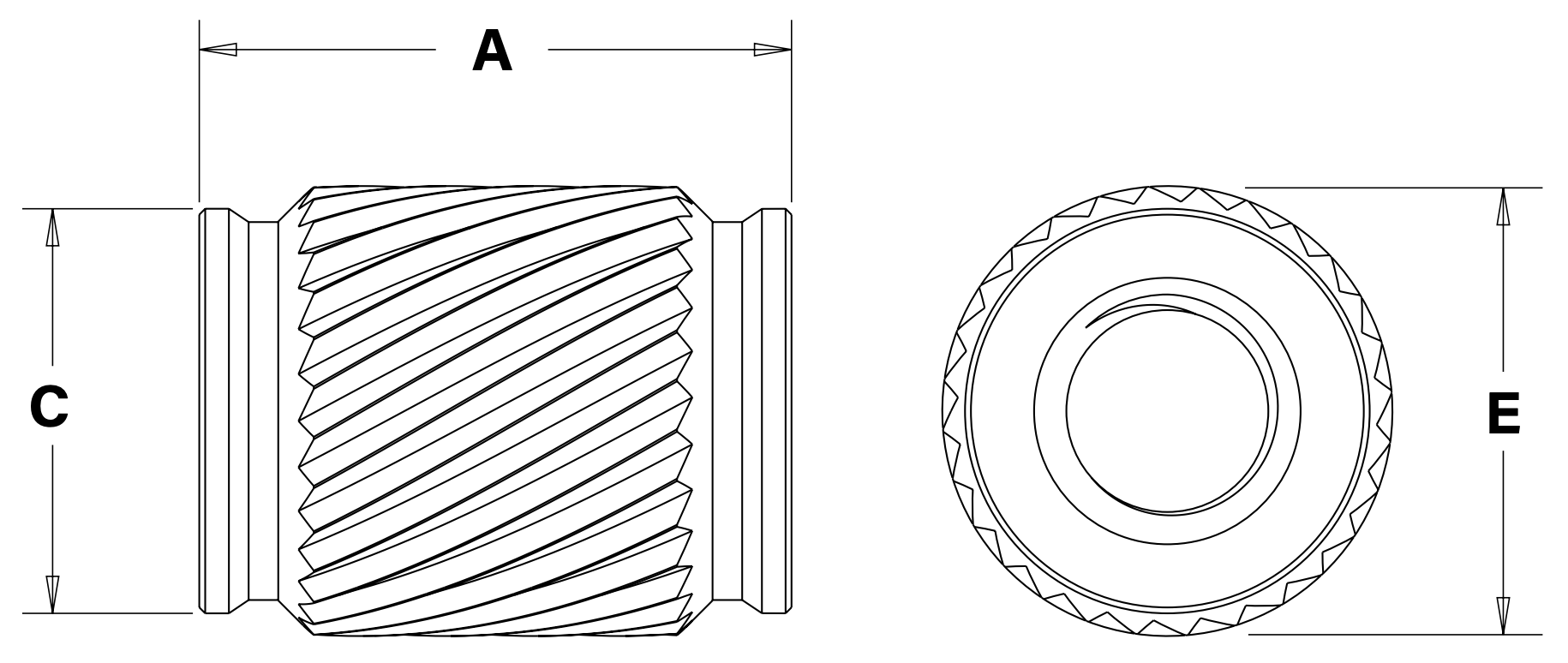

- After Knurl E Nom_mm
- 9.09mm
- ブランド
- PEM
- Length A ± 0.13_mm
- 13.34mm
- Min. Sheet Thickness R_mm
- 13.46mm

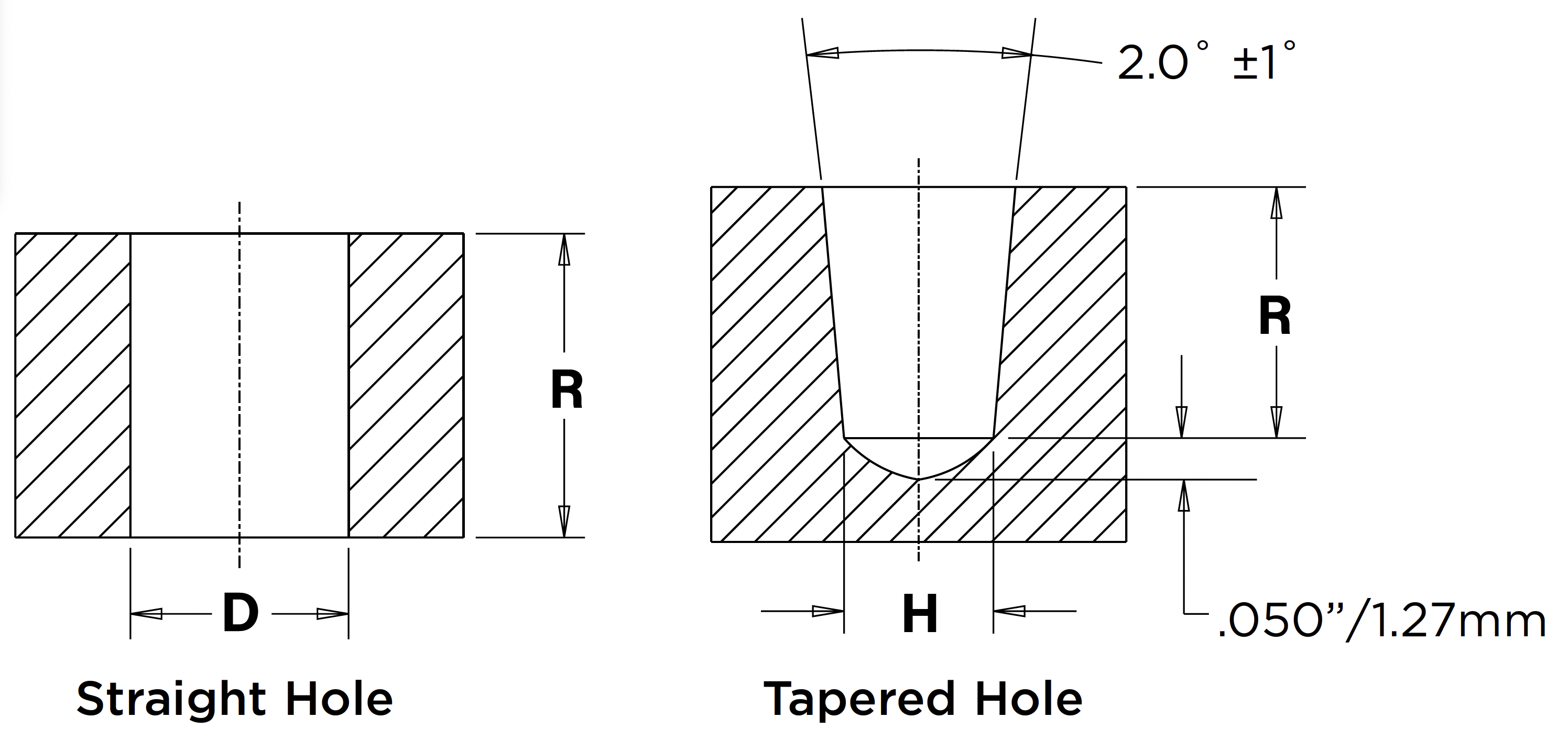

- Min Dia H of Tapered Hole at Length R (mm)
- 8.38
- PEM®製品
- CKS
- Pilot C Max._mm
- 8.37mm
- 製品
- インサート
- Min. Dist. Hole C/L to Edge_mm
- 6.92mm
データシート
| Type | Thread Code | Test Sheet Material | Anvil Dim A (mm) | Anvil Dim B (mm) | Anvil Dim C (mm) | Haeger Part Number Anvil | Haeger Part Number Punch | Installation (kN) | Length Code | Pullout (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| CKS | M5 | ADC12 Die Cast Aluminum (A383 Equivalent) | 76.2 | 63.5 | 25.4 | H-108-0020L | H-108-0020L | 18.3 | 2 | 3000 |
