M2LR08-365504-U

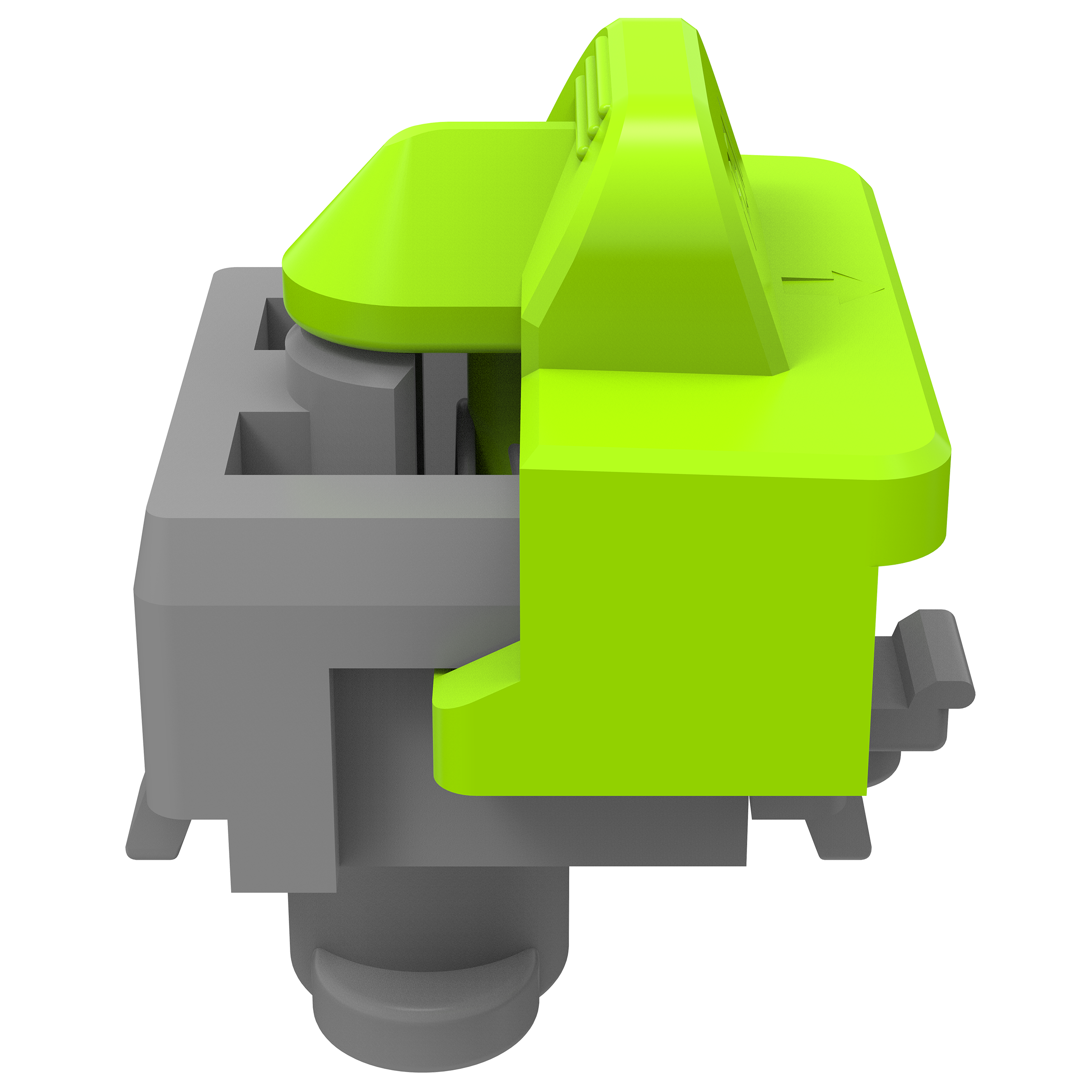

PEM M.2 Board Latch Fasteners
M2LR08-365504-U
PEM M.2 Board Latch Fasteners
PEM® M.2 tool-less board latch fasteners provide rapid daughterboard installation and removal – without tools, delays, or compromising structural integrity.
仕様
- Product Category
- PEM M.2 Board Latch Fasteners

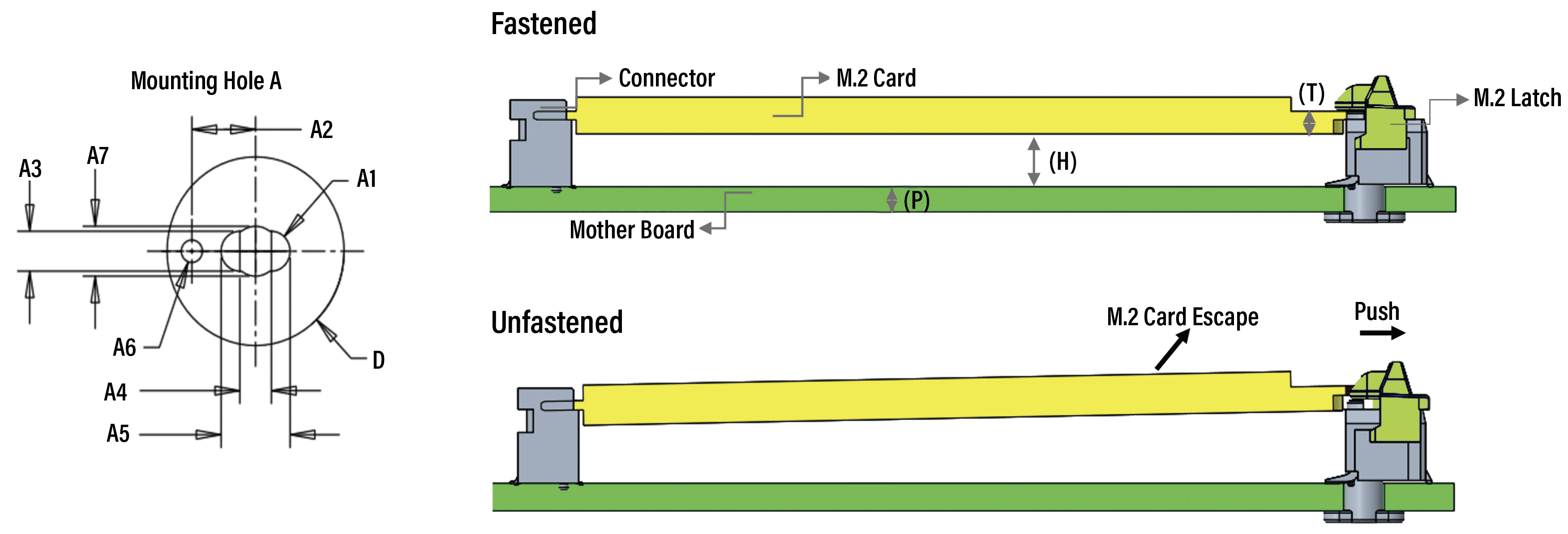

- A1 Nom._mm
- 1.6mm
- A2 ± 0.05mm
- 5.45mm
- A3 ± 0.1mm
- 3.2mm
- A4 ± 0.05mm
- 2.7mm
- A5 ± 0.1mm
- 5.9mm
- A6 ± 0.05mm
- 1.8mm
- A7 + 0.1mm
- 4mm
- Board to Board Gap (H) Nom
- 5.04
- ブランド
- PEM
- M.2 Card Thickness (T) ± 0.08 mm
- 0.8mm
- Motherboard Installation Area Min OD
- 16
- Motherboard Material
- P.C. Board
- Motherboard Thickness Tolerance ± 0.15mm
- 3.65mm
- PEM®製品
- M2L
- 製品
- OtherFasteners
