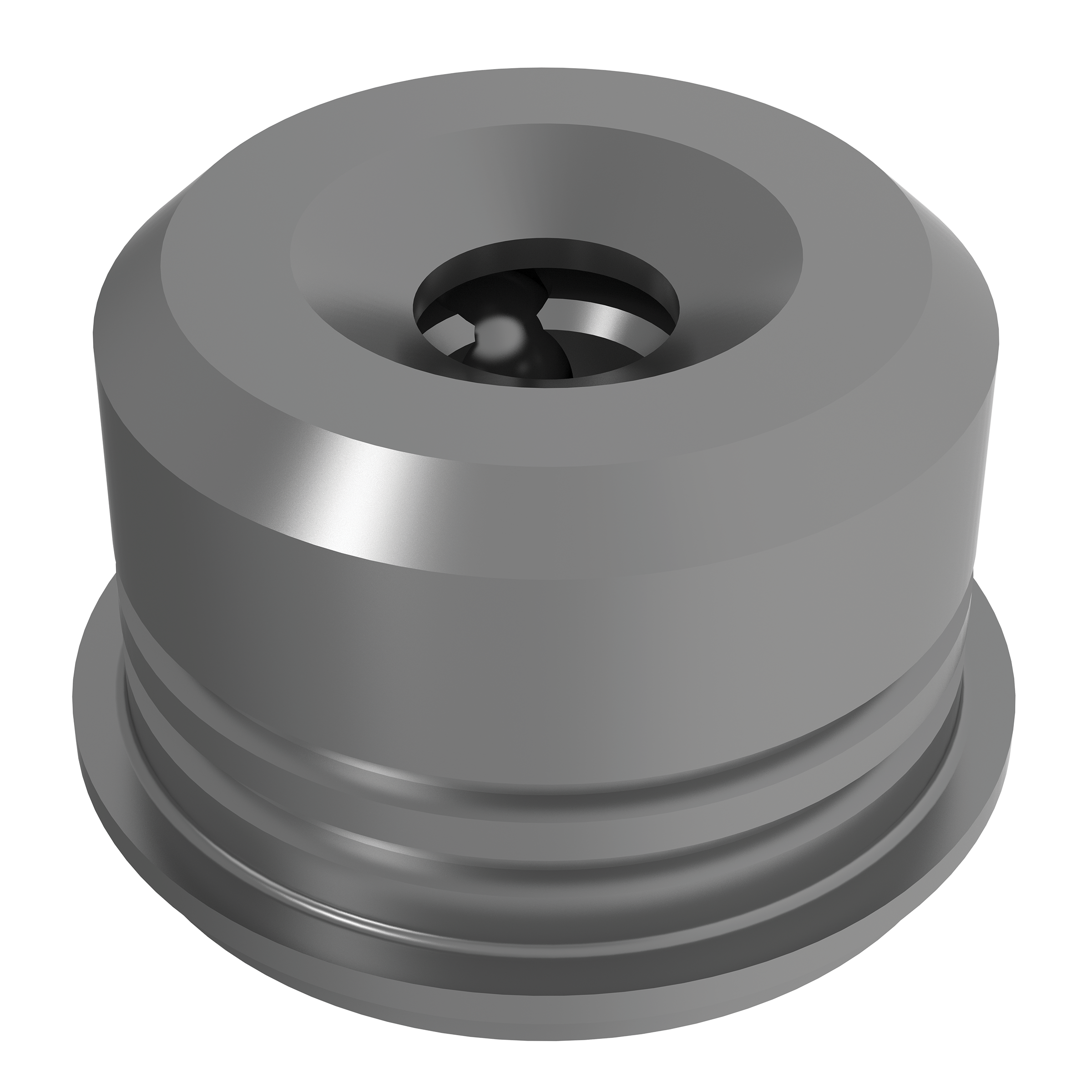

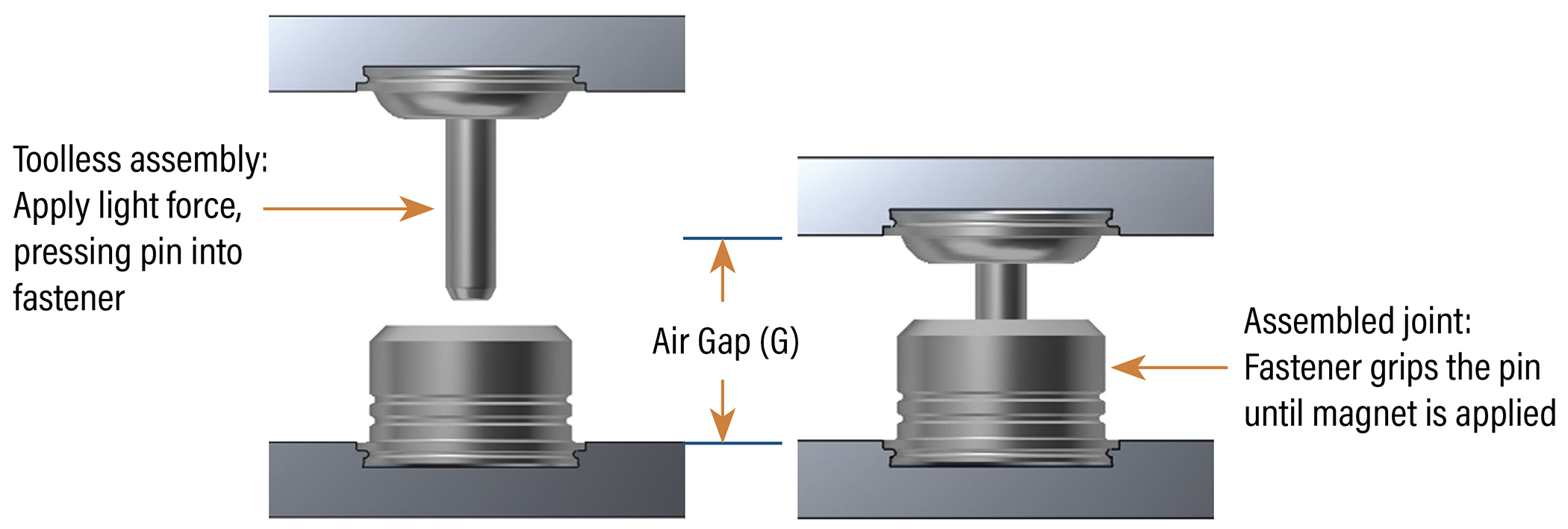

MRFS-1.6-405 - PEM® GHOST™ Retainer Assembly - MRFS™ - PEM® Fastening Products

For Use in Sheet Hardness: HRB 70 / HB 125 or less
Product Category: PEM® GHOST™ Retainer Assembly – MRFS™
ブランド: PEM

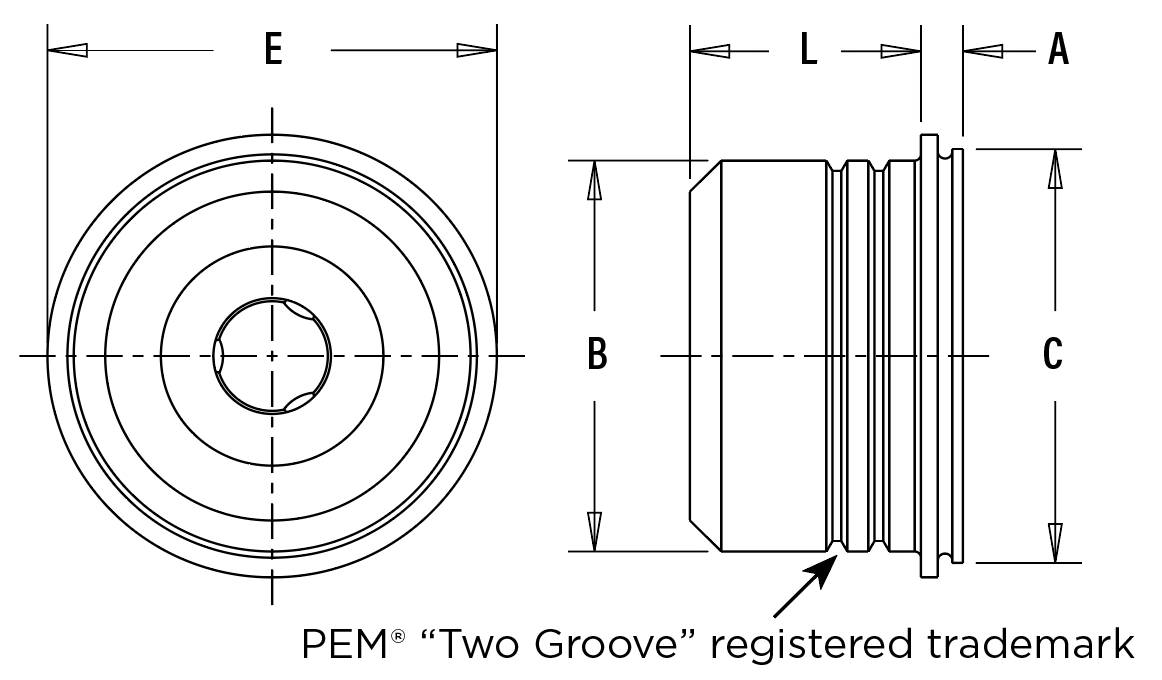

L – Length Nom._in: 0.16in
L – Length Nom._mm: 4.06mm
Magnet Dimensions (diameter x thickness), (in): 1/2 x 1/2
Magnet Material & Grade: Neodymium N52
Magnetization Direction: Through Thickness (Axial)
Max. Sheet Thickness For Release_in: 0.181in
Max. Sheet Thickness For Release_mm: 4.6mm
Min Sheet Thickness – Cosmetic (in): 0.069
Min Sheet Thickness – Cosmetic (mm): 1.75
Min Sheet Thickness – Non-cosmetic (in): 0.044
Min Sheet Thickness – Non-cosmetic (mm): 1.1
PEM®製品: MRFS
製品: OtherFasteners
技術: セルフクリンチ

A Shank Max: 0.029in, 0.74mm
B Max._in: 0.24in
B Max._mm: 6.1mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.265in
E Nom._in: 0.279in
E Nom._mm: 7.09mm
Min. Depth of Blind Hole_in: 0.03in
Min. Depth of Blind Hole_mm: 0.76mm
Min. Dist. Hole C/L to Edge_in: 0.19in
Min. Dist. Hole C/L to Edge_mm: 4.83mm
C Max._in: 0.264in
C Max._mm: 6.71mm
Pin Dia. Code: 1.6

Test Sheet Material	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
										MRFS	MRHPS	1.6MM	47.5 lbs / 211 N	0.031 in. / 0.8 mm	70.6 lbs / 314 N	0.050 in. / 1.3 mm
										MRFS	MRPS	1.6MM	10.4 lbs / 46 N	0.031 in / 0.8 mm	48.6 lbs / 216 N	0.094 in / 2.4 mm
.055” / 1.4mm 5052-H34 Aluminum	1.6	0.244	6.2	H-155-1.6	H-108-062L	8027213	975200048	600 lbs. / 2.7 kN	99.5 lbs / 443 N
