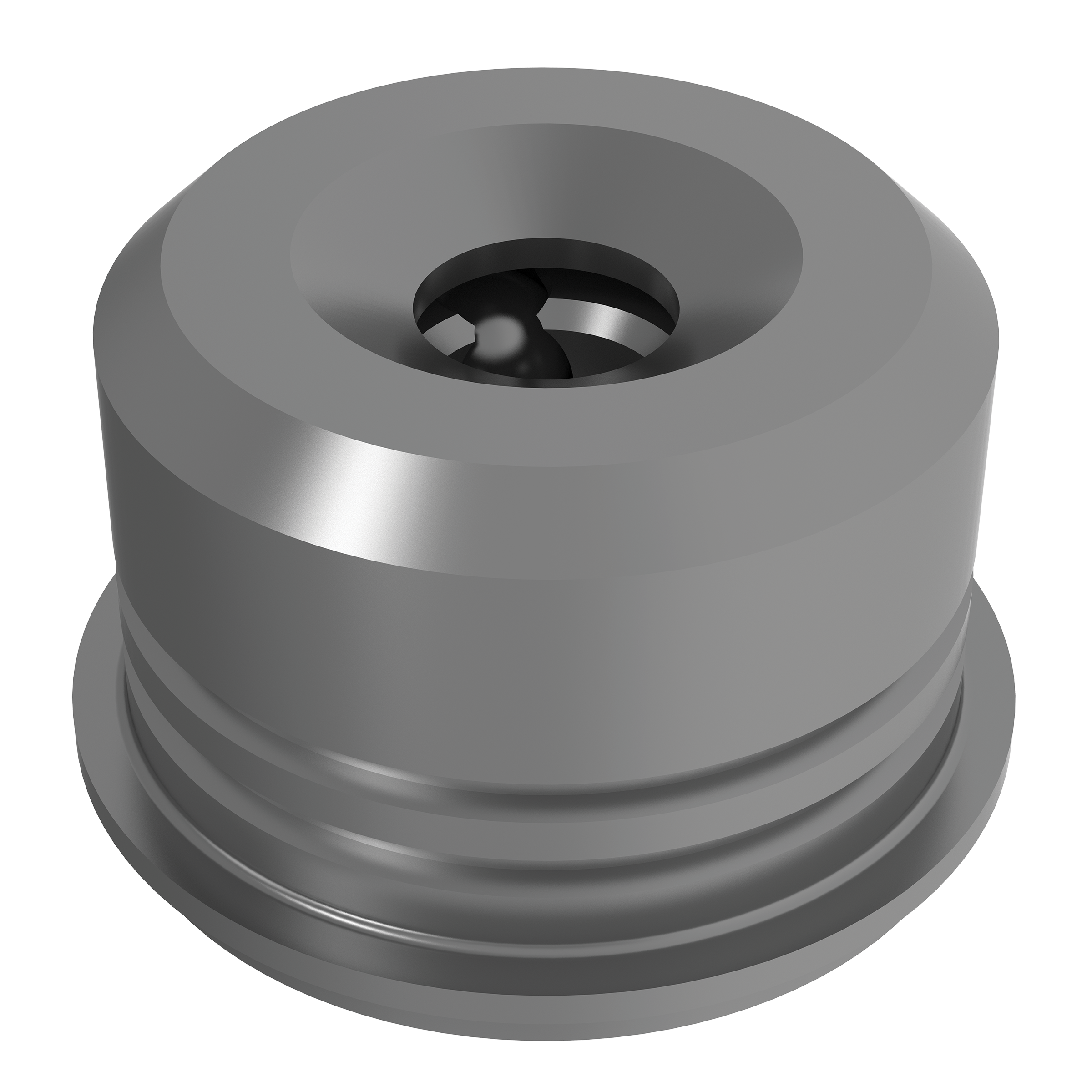

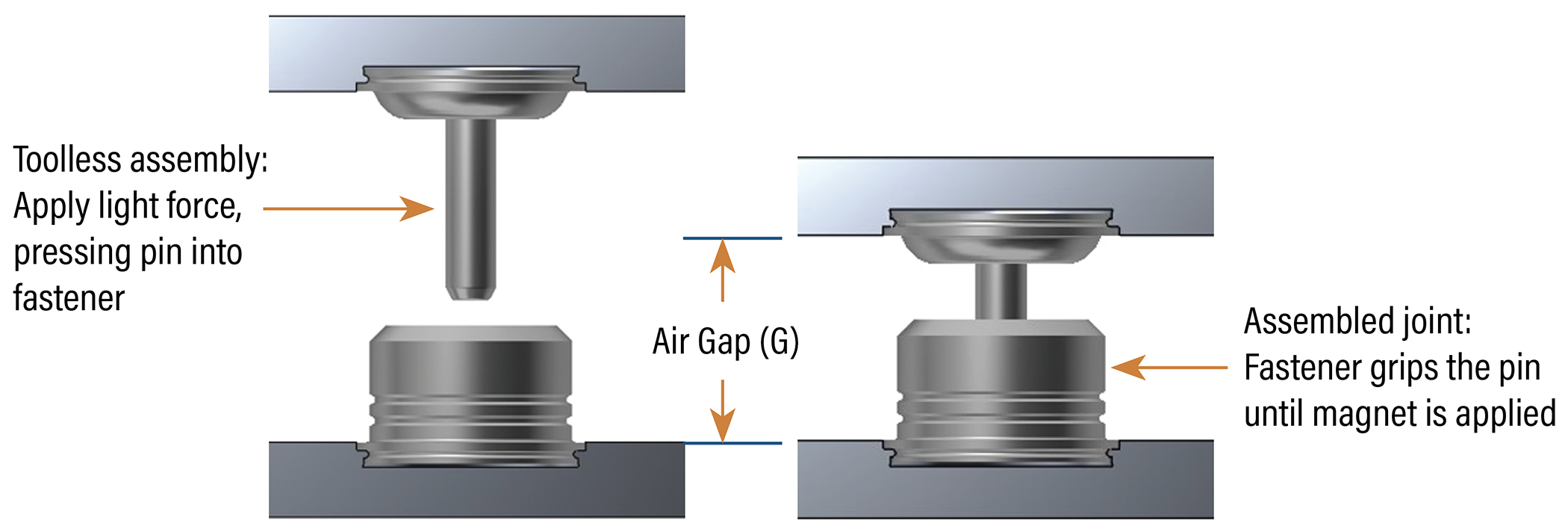

MRFS-2.0-485 - PEM® GHOST™ Retainer Assembly - MRFS™ - PEM® Fastening Products

For Use in Sheet Hardness: HRB 70 / HB 125 or less
Product Category: PEM® GHOST™ Retainer Assembly – MRFS™
ブランド: PEM

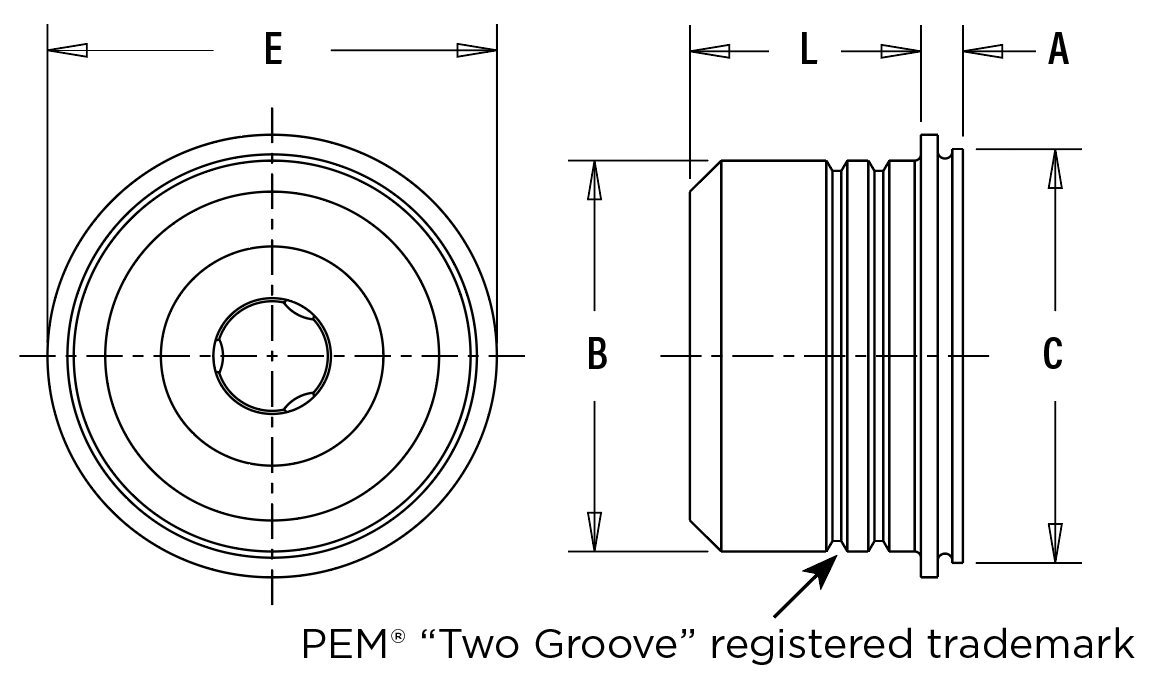

L – Length Nom._in: 0.191in
L – Length Nom._mm: 4.85mm
Magnet Dimensions (diameter x thickness), (in): 1/2 x 1/2
Magnet Material & Grade: Neodymium N52
Magnetization Direction: Through Thickness (Axial)
Max. Sheet Thickness For Release_in: 0.205in
Max. Sheet Thickness For Release_mm: 5.2mm
Min Sheet Thickness – Cosmetic (in): 0.079
Min Sheet Thickness – Cosmetic (mm): 2
Min Sheet Thickness – Non-cosmetic (in): 0.05
Min Sheet Thickness – Non-cosmetic (mm): 1.26
PEM®製品: MRFS
製品: OtherFasteners
技術: セルフクリンチ

A Shank Max: 0.037in, 0.94mm
B Max._in: 0.302in
B Max._mm: 7.67mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.328in
E Nom._in: 0.345in
E Nom._mm: 8.76mm
Min. Depth of Blind Hole_in: 0.038in
Min. Depth of Blind Hole_mm: 0.97mm
Min. Dist. Hole C/L to Edge_in: 0.225in
Min. Dist. Hole C/L to Edge_mm: 5.72mm
C Max._in: 0.327in
C Max._mm: 8.31mm
Pin Dia. Code: 2.0

Test Sheet Material	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
										MRFS	MRPS	2.0MM	16.8 lbs / 75 N	0.039 in / 1 mm	82.6 lbs / 368 N	0.123 in / 3.1 mm
.071” / 1.8mm 5052-H34 Aluminum	2.0	0.306	7.77	H-155-2.0	H-108-062L	8027214	975200048	800 lbs. / 3.6 kN	173 lbs / 770 N
