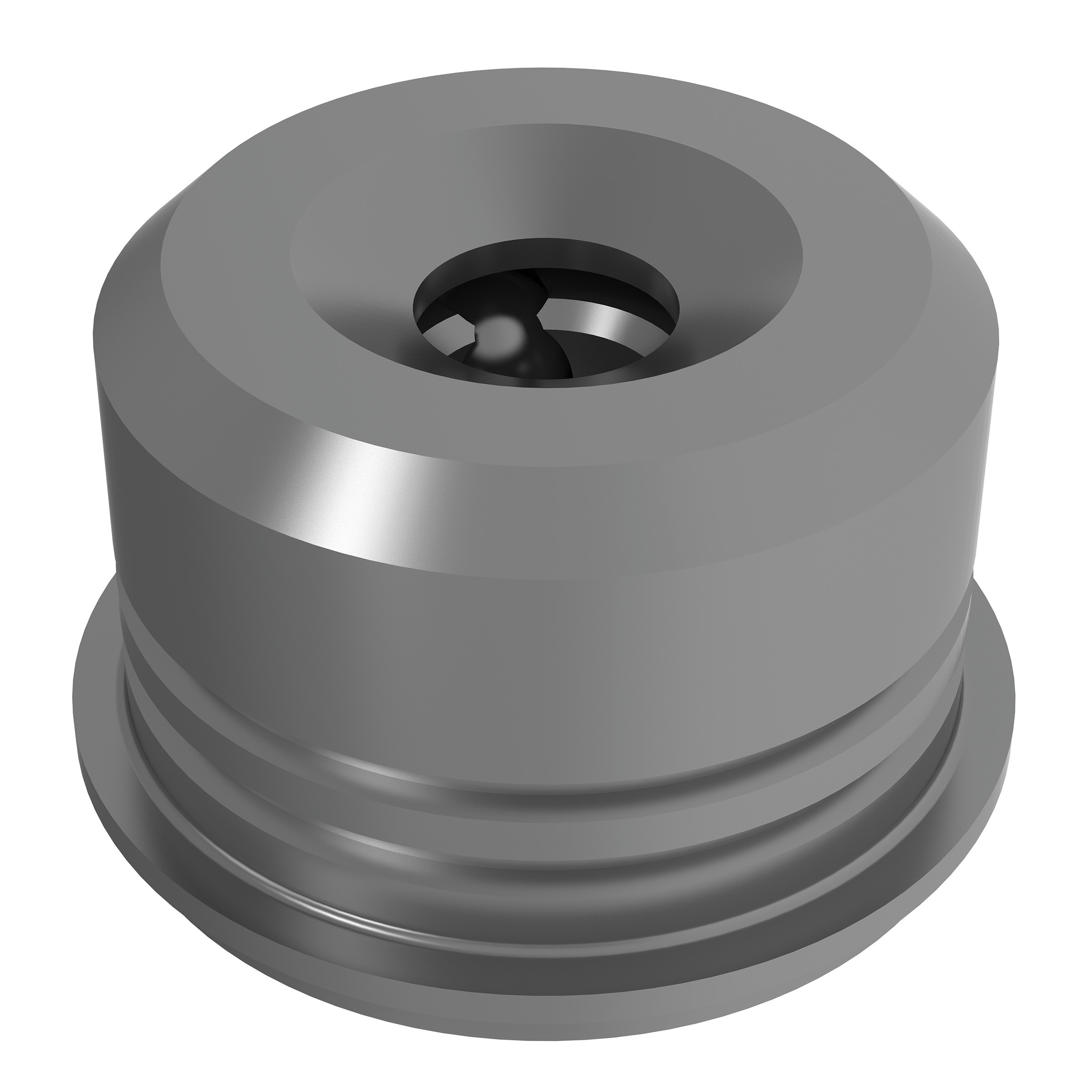

MRFS-2.4-600 - PEM® GHOST™ Retainer Assembly - MRFS™ - PEM® Fastening Products

For Use in Sheet Hardness: HRB 70 / HB 125 or less
Product Category: PEM® GHOST™ Retainer Assembly – MRFS™
ブランド: PEM
L – Length Nom._in: 0.236in
L – Length Nom._mm: 5.99mm
Magnet Dimensions (diameter x thickness), (in): 1/2 x 1/2
Magnet Material & Grade: Neodymium N52
Magnetization Direction: Through Thickness (Axial)
Max. Sheet Thickness For Release_in: 0.232in
Max. Sheet Thickness For Release_mm: 5.9mm
Min Sheet Thickness – Cosmetic (in): 0.111
Min Sheet Thickness – Cosmetic (mm): 2.8
Min Sheet Thickness – Non-cosmetic (in): 0.058
Min Sheet Thickness – Non-cosmetic (mm): 1.47
PEM®製品: MRFS
製品: OtherFasteners
技術: セルフクリンチ

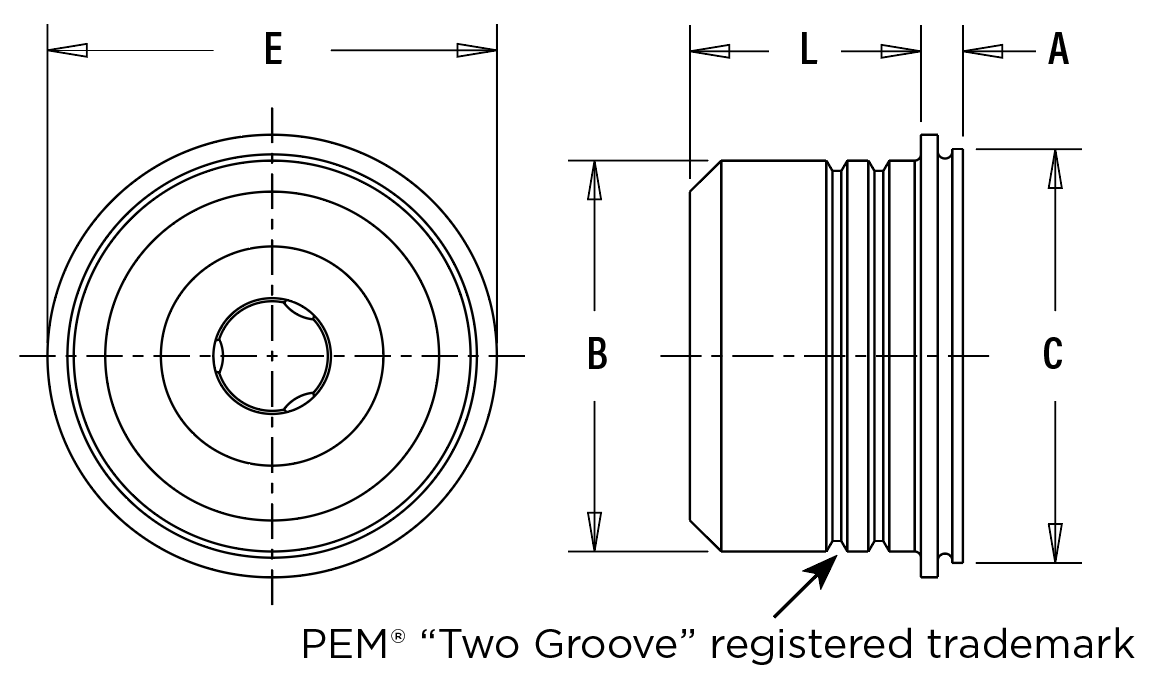

A Shank Max: 0.042in, 1.07mm
B Max._in: 0.37in
B Max._mm: 9.4mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.406in
E Nom._in: 0.426in
E Nom._mm: 10.82mm
Min. Depth of Blind Hole_in: 0.043in
Min. Depth of Blind Hole_mm: 1.09mm
Min. Dist. Hole C/L to Edge_in: 0.29in
Min. Dist. Hole C/L to Edge_mm: 7.37mm
C Max._in: 0.405in
C Max._mm: 10.29mm
Pin Dia. Code: 2.4

Test Sheet Material	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
.079” / 2mm 5052-H34 Aluminum	2.4	0.375	9.53	H-155-2.4	H-108-075L	8027215	8012030	1150 lbs. / 5.1 kN	291 lbs / 1294 N
										MRFS	MRPS	2.4MM	23.8 lbs / 106 N	0.047 in / 1.2 mm	125 lbs / 554 N	0.153 in / 3.9 mm
