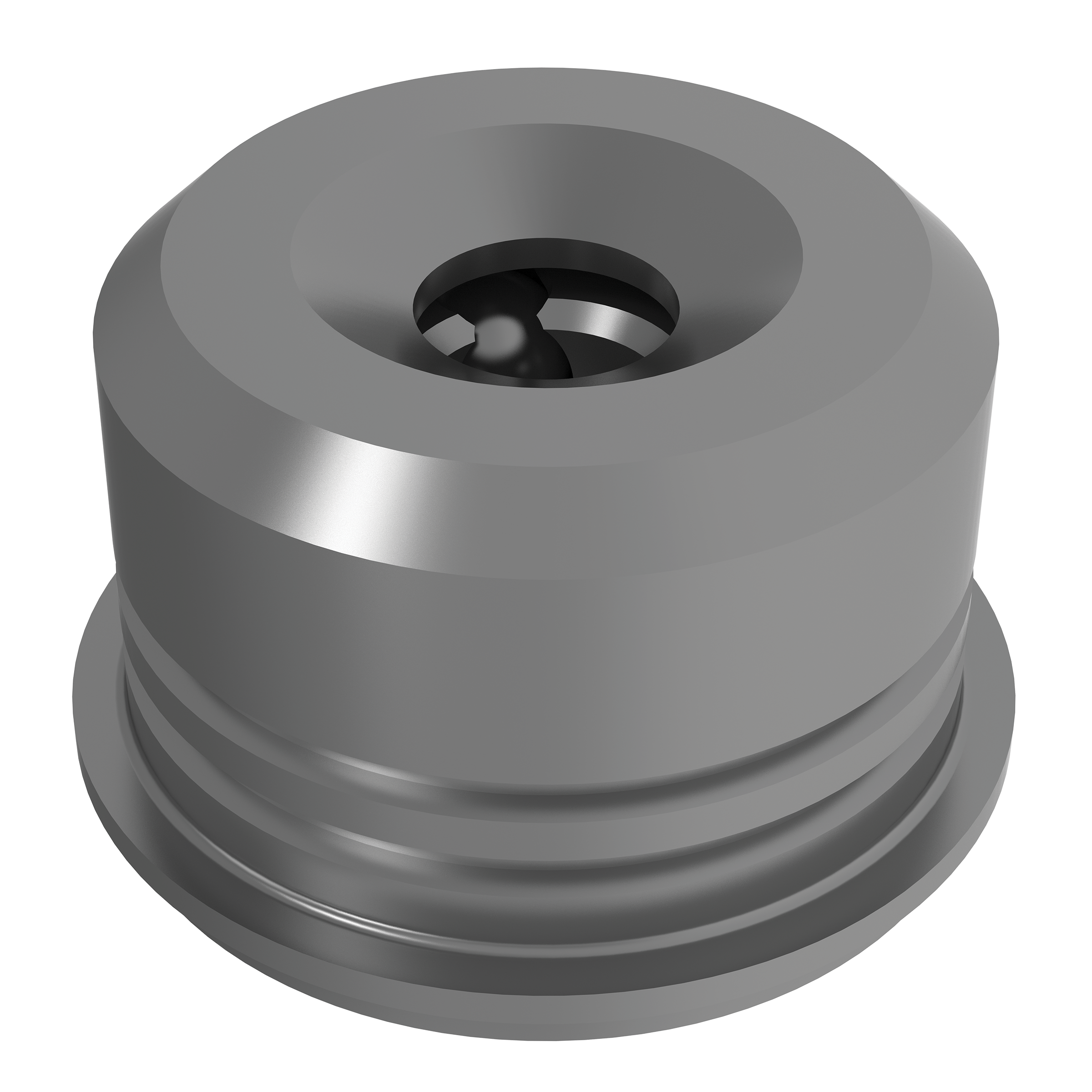

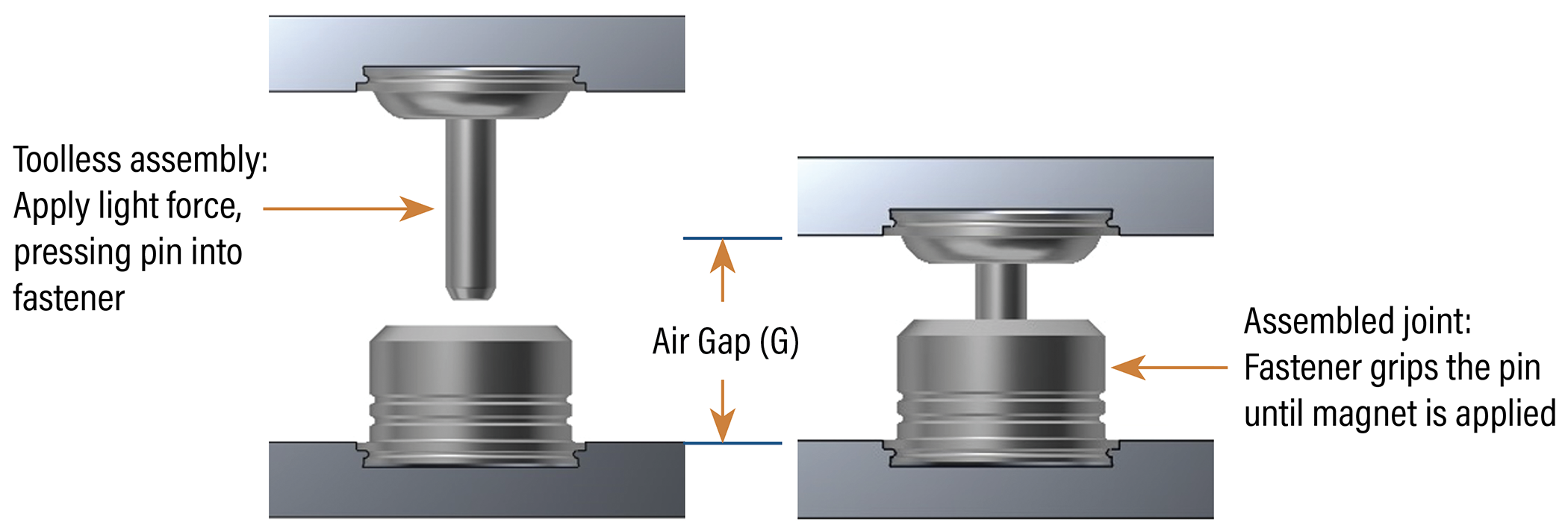

MRFS-2.8-720 - PEM® GHOST™ Retainer Assembly - MRFS™ - PEM® Fastening Products

For Use in Sheet Hardness: HRB 70 / HB 125 or less
Product Category: PEM® GHOST™ Retainer Assembly – MRFS™
ブランド: PEM
L – Length Nom._in: 0.284in
L – Length Nom._mm: 7.21mm
Magnet Dimensions (diameter x thickness), (in): 1/2 x 1/2
Magnet Material & Grade: Neodymium N52
Magnetization Direction: Through Thickness (Axial)
Max. Sheet Thickness For Release_in: 0.236in
Max. Sheet Thickness For Release_mm: 6mm
Min Sheet Thickness – Cosmetic (in): 0.119
Min Sheet Thickness – Cosmetic (mm): 3
Min Sheet Thickness – Non-cosmetic (in): 0.063
Min Sheet Thickness – Non-cosmetic (mm): 1.59
PEM®製品: MRFS
製品: OtherFasteners
技術: セルフクリンチ

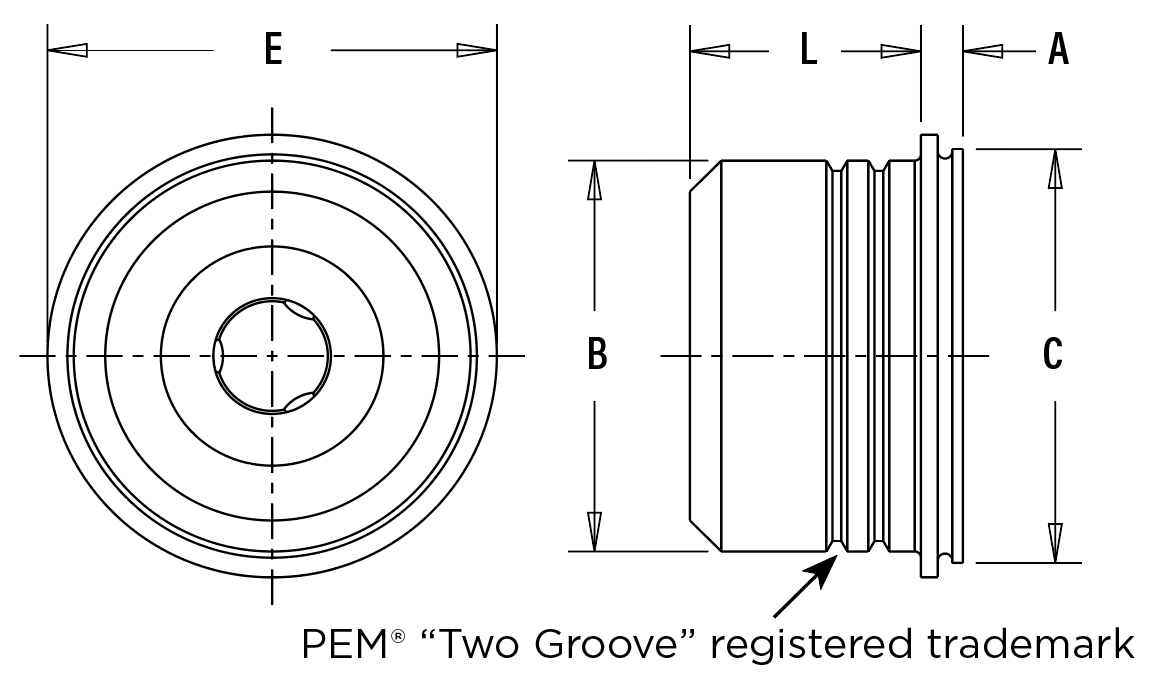

A Shank Max: 0.047in, 1.19mm
B Max._in: 0.41in
B Max._mm: 10.41mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.453in
E Nom._in: 0.479in
E Nom._mm: 12.17mm
Min. Depth of Blind Hole_in: 0.048in
Min. Depth of Blind Hole_mm: 1.22mm
Min. Dist. Hole C/L to Edge_in: 0.315in
Min. Dist. Hole C/L to Edge_mm: 8mm
C Max._in: 0.452in
C Max._mm: 11.48mm
Pin Dia. Code: 2.8

Test Sheet Material	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
.091” / 2.3mm 5052-H34 Aluminum	2.8	0.415	10.54	H-155-2.8	H-108-075L	8027216	8012030	1750 lbs. / 7.8 kN	397 lbs / 1766 N
										MRFS	MRPS	2.8MM	31.9 lbs / 142 N	0.055 in / 1.4 mm	223.4 lbs / 994 N	0.200 in / 5.1 mm
