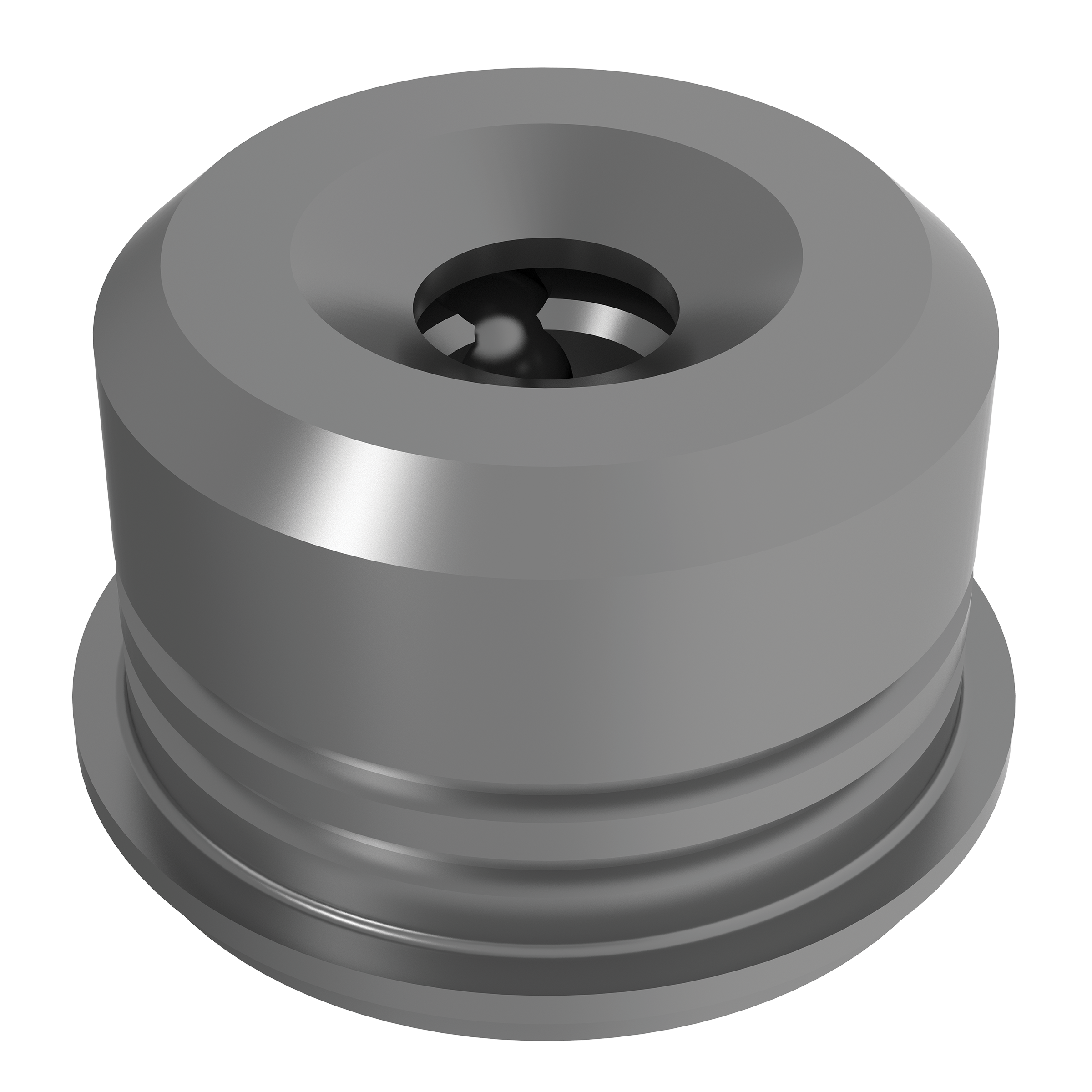

MRFS-4.8-1230 - PEM® GHOST™ Retainer Assembly - MRFS™ - PEM® Fastening Products

For Use in Sheet Hardness: HRB 70 / HB 125 or less
Product Category: PEM® GHOST™ Retainer Assembly – MRFS™
ブランド: PEM

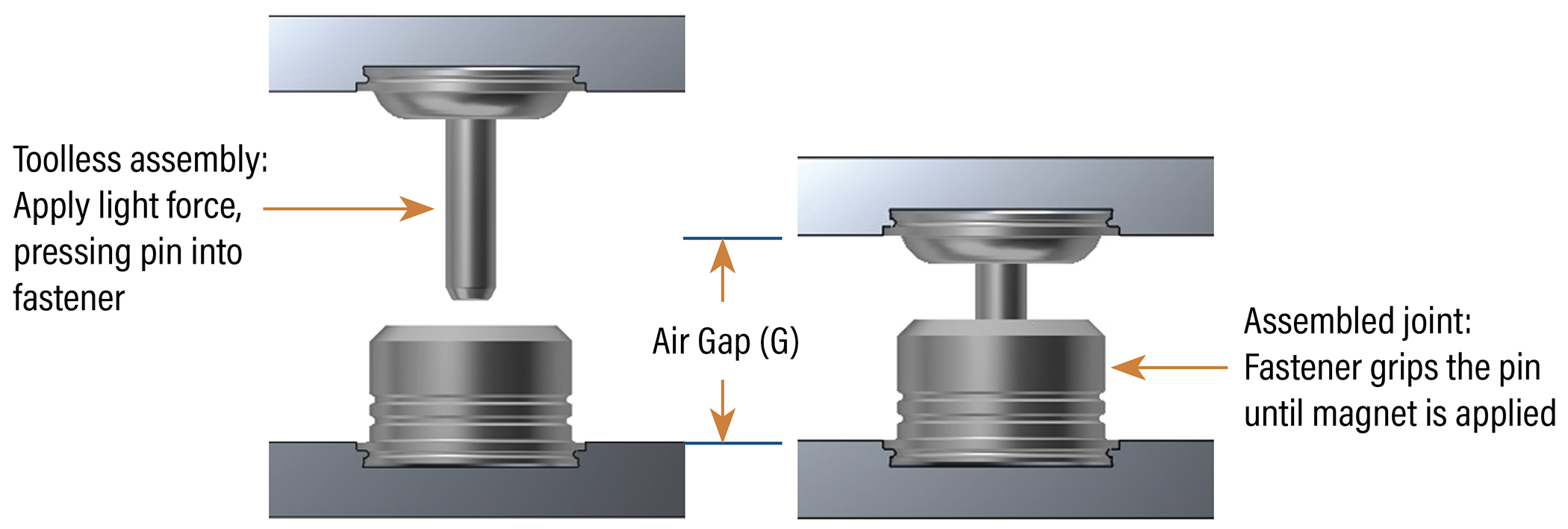

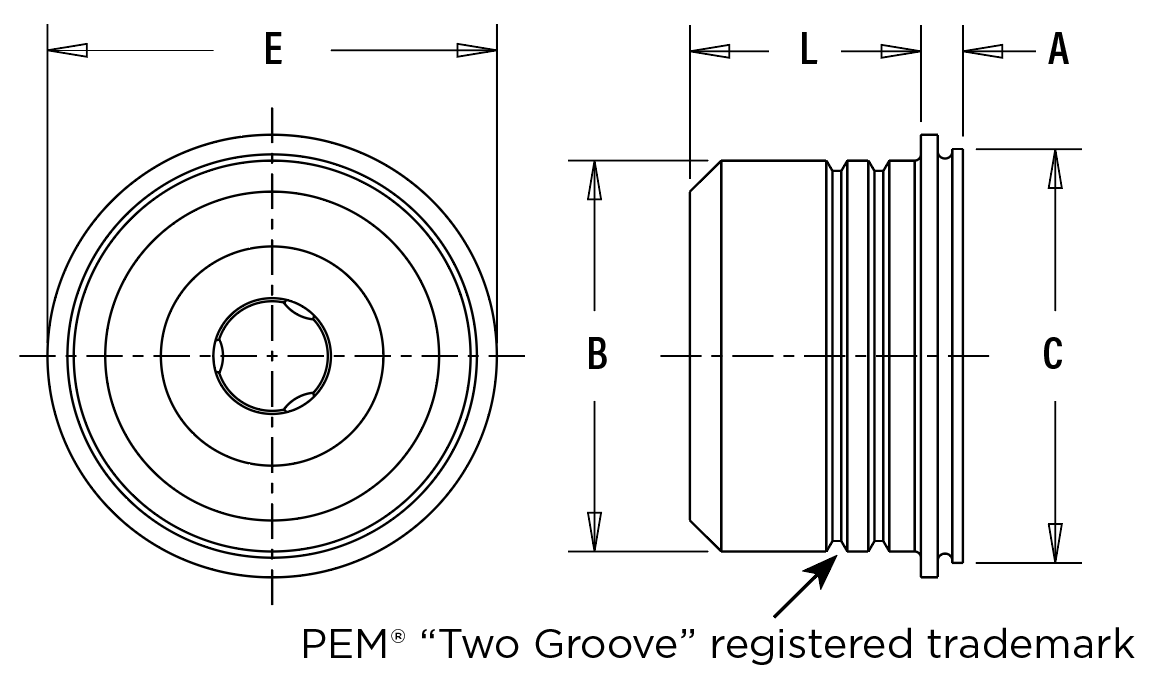

L – Length Nom._in: 0.484in
L – Length Nom._mm: 12.29mm
Magnet Dimensions (diameter x thickness), (in): 5/8 x 3/4
Magnet Material & Grade: Neodymium N52
Magnetization Direction: Through Thickness (Axial)
Max. Sheet Thickness For Release_in: 0.315in
Max. Sheet Thickness For Release_mm: 8mm
Min Sheet Thickness – Cosmetic (in): 0.193
Min Sheet Thickness – Cosmetic (mm): 4.9
Min Sheet Thickness – Non-cosmetic (in): 0.068
Min Sheet Thickness – Non-cosmetic (mm): 1.72
PEM®製品: MRFS
製品: OtherFasteners
技術: セルフクリンチ

A Shank Max: 0.068in, 1.73mm
B Max._in: 0.7in
B Max._mm: 17.78mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.765in
E Nom._in: 0.804in
E Nom._mm: 20.42mm
Min. Depth of Blind Hole_in: 0.069in
Min. Depth of Blind Hole_mm: 1.75mm
Min. Dist. Hole C/L to Edge_in: 0.5in
Min. Dist. Hole C/L to Edge_mm: 12.7mm
C Max._in: 0.764in
C Max._mm: 19.41mm
Pin Dia. Code: 4.8

Test Sheet Material	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
										MRFS	MRPS	4.8MM	99.1 lbs / 441 N	0.094 in / 2.4 mm	525 lbs / 2336 N	0.301 in / 7.6 mm
.130” / 3.3mm 5052-H34 Aluminum	4.8	0.705	17.91	H-155-4.8	H-108-5	8027217	8027342	5150 lbs. / 22.9 kN	1060 lbs / 4715 N
