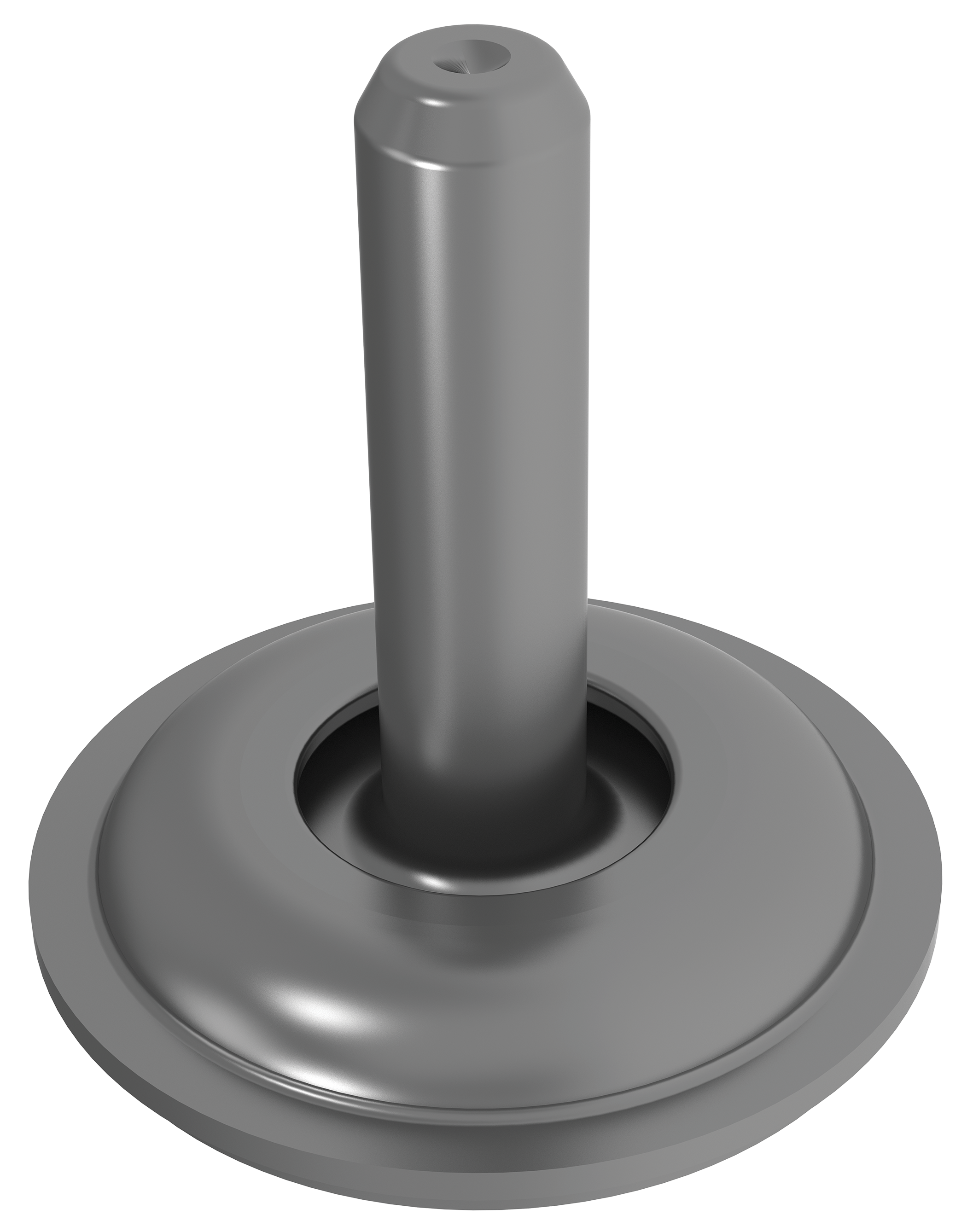

MRPS-1.6MM-610 - PEM® GHOST™ Floating Pins - MRPS™, MRHPS™ - PEM® Fastening Products

For Use in Sheet Hardness: HRB 70 / HB 125 or less
Product Category: PEM® GHOST™ Floating Pins – MRPS™, MRHPS™
Axial Float – Total (in): 0.006
Axial Float – Total (mm): 0.15
ブランド: PEM

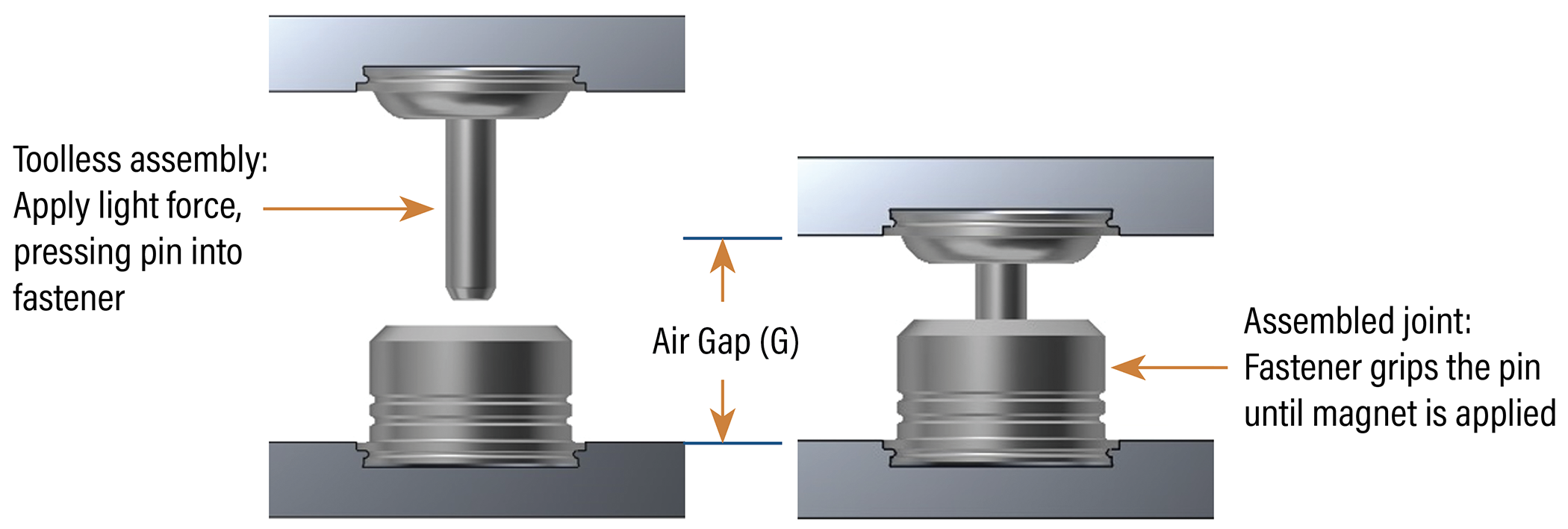

G Air Gap RAnge (mm): 5.87 – 6.27
G Air Gap Range (in): 0.231 – 0.247
L – Length ± .008_in: 0.24in
L – Length ± 0.2_mm: 6.1mm
Min Sheet Thickness – Cosmetic (in): 0.069
Min Sheet Thickness – Cosmetic (mm): 1.75
Min Sheet Thickness – Non-cosmetic (in): 0.044
Min Sheet Thickness – Non-cosmetic (mm): 1.1
PEM®製品: MRF, MRPS
製品: ピン
Radial Float – All Directions From Center / Total (in): 0.016
Radial Float – All Directions From Center / Total (mm): 0.41

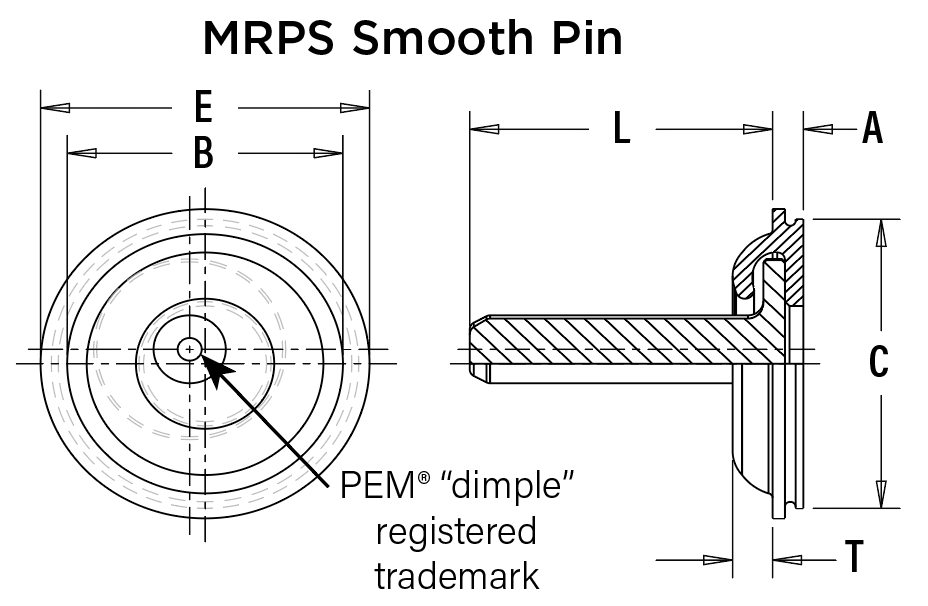

A Shank Max: 0.029in, 0.74mm
B Max._in: 0.246in
B Max._mm: 6.25mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.272in
E Nom._in: 0.287in
E Nom._mm: 7.29mm
Min. Depth of Blind Hole_in: 0.03in
Min. Depth of Blind Hole_mm: 0.76mm
Min. Dist. Hole C/L to Edge_in: 0.19in
Min. Dist. Hole C/L to Edge_mm: 4.83mm
C Max._in: 0.271in
C Max._mm: 6.88mm
Pin Dia. Code: 1.6MM
T Max._in: 0.027in
T Max._mm: 0.69mm

Test Sheet Material	FLOATING PIN TYPE	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
.055” / 1.4mm 5052-H34 Aluminum	MRPS	1.6MM	0.25	6.35	H-156-1.6	H-108-062L	8027219	975200048	700 lbs. / 3.1 kN	108 lbs / 480 N
											MRFS	MRPS	1.6MM	10.4 lbs / 46 N	0.031 in / 0.8 mm	48.6 lbs / 216 N	0.094 in / 2.4 mm
