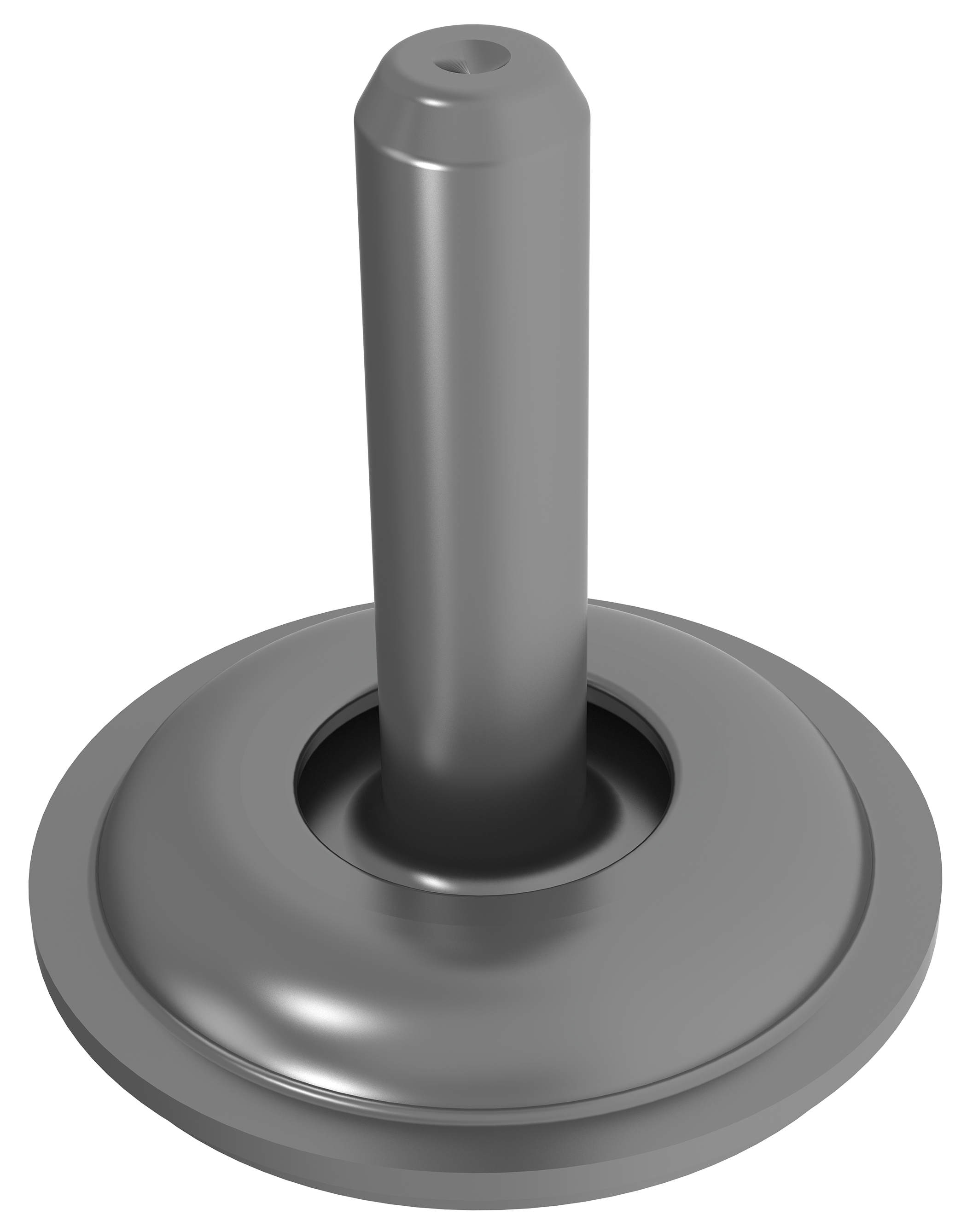

MRPS-2.4MM-840 - PEM® GHOST™ Floating Pins - MRPS™, MRHPS™ - PEM® Fastening Products

For Use in Sheet Hardness: HRB 70 / HB 125 or less
Product Category: PEM® GHOST™ Floating Pins – MRPS™, MRHPS™
Axial Float – Total (in): 0.006
Axial Float – Total (mm): 0.15
ブランド: PEM

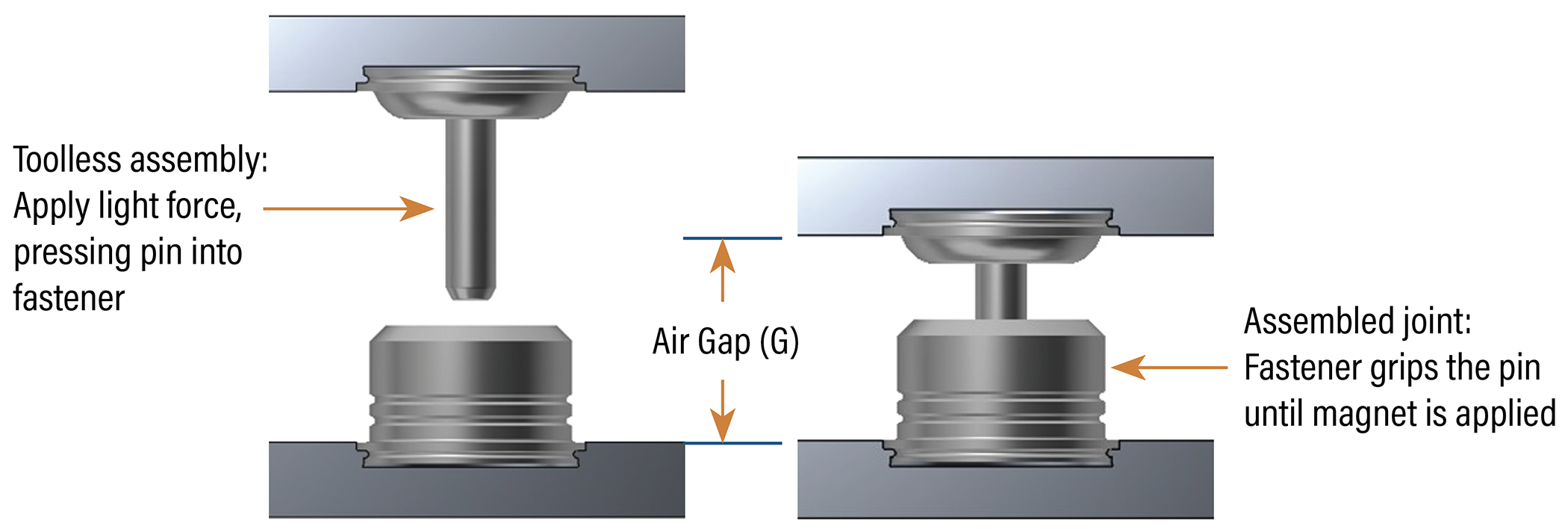

G Air Gap RAnge (mm): 7.95 – 8.51
G Air Gap Range (in): 0.313 – 0.335
L – Length ± .008_in: 0.33in
L – Length ± 0.2_mm: 8.39mm
Min Sheet Thickness – Cosmetic (in): 0.111
Min Sheet Thickness – Cosmetic (mm): 2.8
Min Sheet Thickness – Non-cosmetic (in): 0.058
Min Sheet Thickness – Non-cosmetic (mm): 1.47
PEM®製品: MRF, MRPS
製品: ピン
Radial Float – All Directions From Center / Total (in): 0.022
Radial Float – All Directions From Center / Total (mm): 0.56

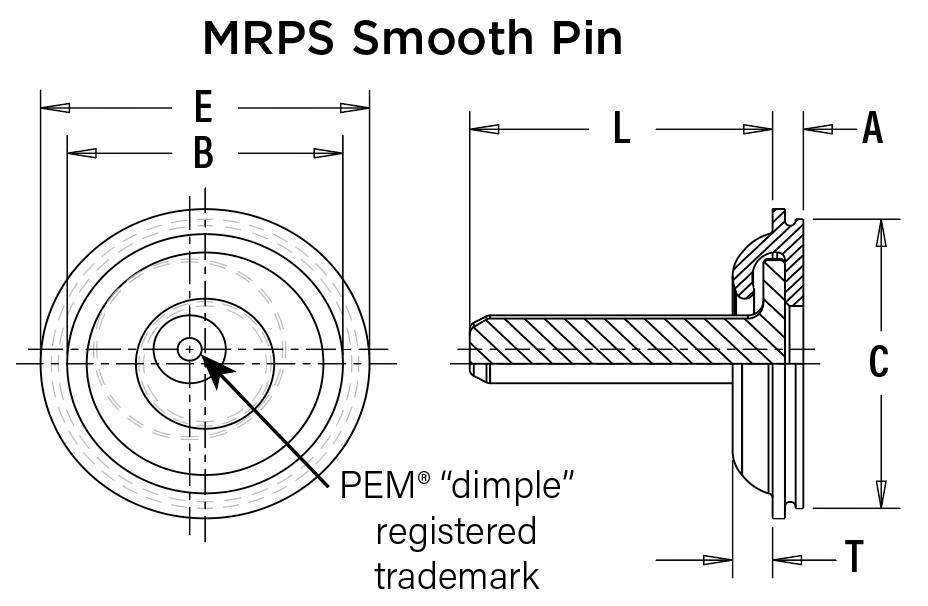

A Shank Max: 0.042in, 1.07mm
B Max._in: 0.343in
B Max._mm: 8.71mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.374in
E Nom._in: 0.395in
E Nom._mm: 10.03mm
Min. Depth of Blind Hole_in: 0.043in
Min. Depth of Blind Hole_mm: 1.09mm
Min. Dist. Hole C/L to Edge_in: 0.29in
Min. Dist. Hole C/L to Edge_mm: 7.37mm
C Max._in: 0.373in
C Max._mm: 7.47mm
Pin Dia. Code: 2.4MM
T Max._in: 0.027in
T Max._mm: 0.69mm

Test Sheet Material	FLOATING PIN TYPE	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
.079” / 2mm 5052-H34 Aluminum	MRPS	2.4MM	0.347	8.81	H-156-2.4	H-108-062L	8027221	975200048	1200 lbs. / 5.3 kN	281 lbs / 1250 N
											MRFS	MRPS	2.4MM	23.8 lbs / 106 N	0.047 in / 1.2 mm	125 lbs / 554 N	0.153 in / 3.9 mm
