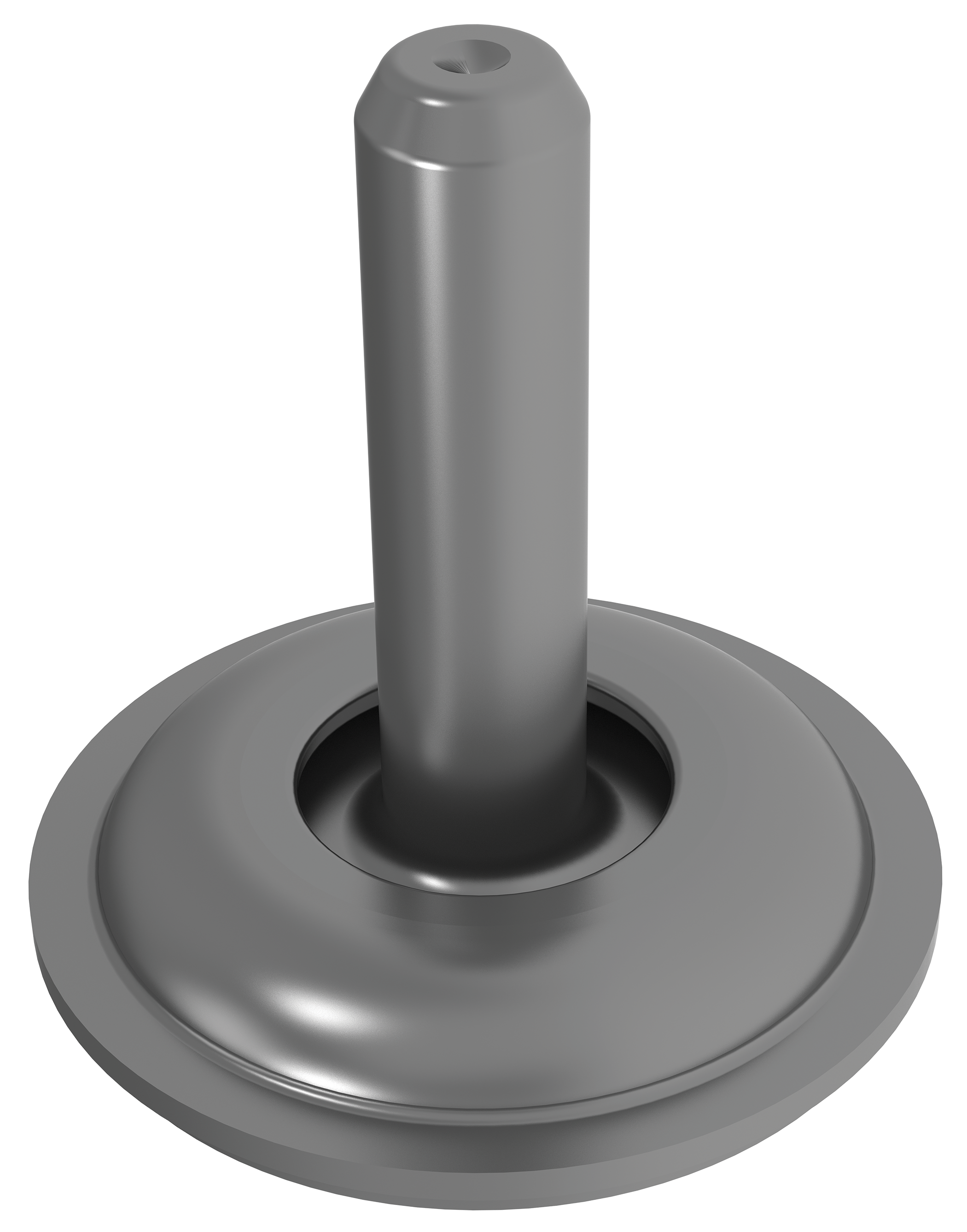

MRPS-2.8MM-990 - PEM® GHOST™ Floating Pins - MRPS™, MRHPS™ - PEM® Fastening Products

For Use in Sheet Hardness: HRB 70 / HB 125 or less
Product Category: PEM® GHOST™ Floating Pins – MRPS™, MRHPS™
Axial Float – Total (in): 0.006
Axial Float – Total (mm): 0.15
ブランド: PEM

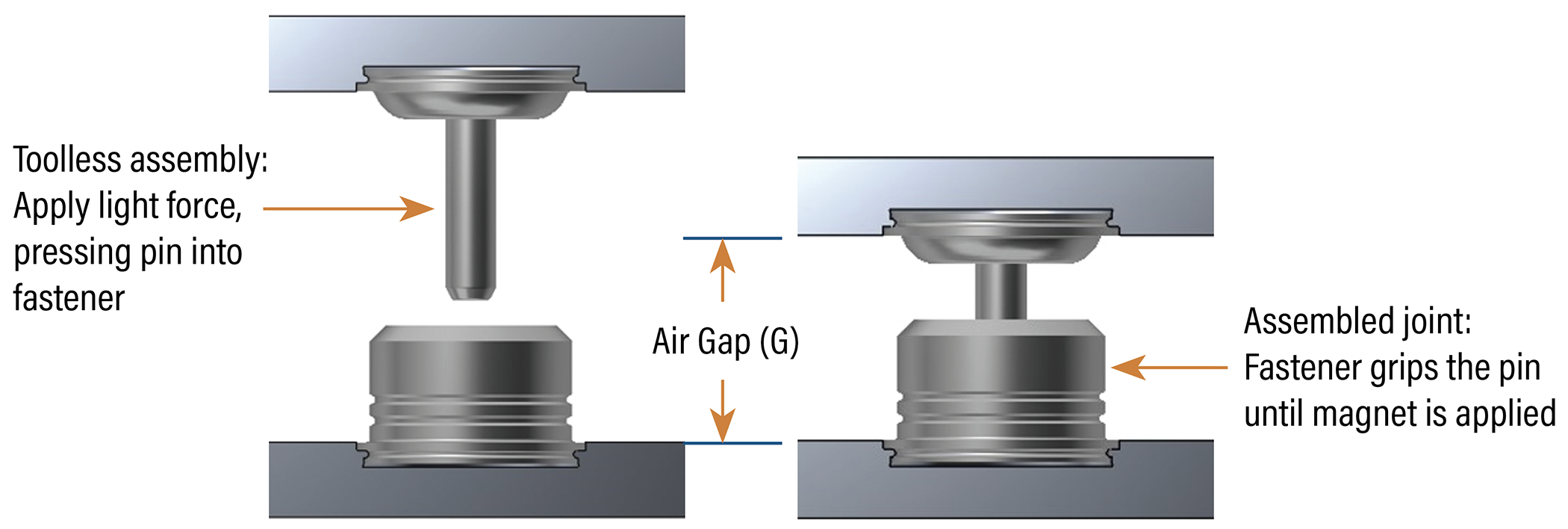

G Air Gap RAnge (mm): 9.37 – 10.01
G Air Gap Range (in): 0.369 – 0.394
L – Length ± .008_in: 0.39in
L – Length ± 0.2_mm: 9.91mm
Min Sheet Thickness – Cosmetic (in): 0.119
Min Sheet Thickness – Cosmetic (mm): 3
Min Sheet Thickness – Non-cosmetic (in): 0.063
Min Sheet Thickness – Non-cosmetic (mm): 1.59
PEM®製品: MRF, MRPS
製品: ピン
Radial Float – All Directions From Center / Total (in): 0.022
Radial Float – All Directions From Center / Total (mm): 0.56

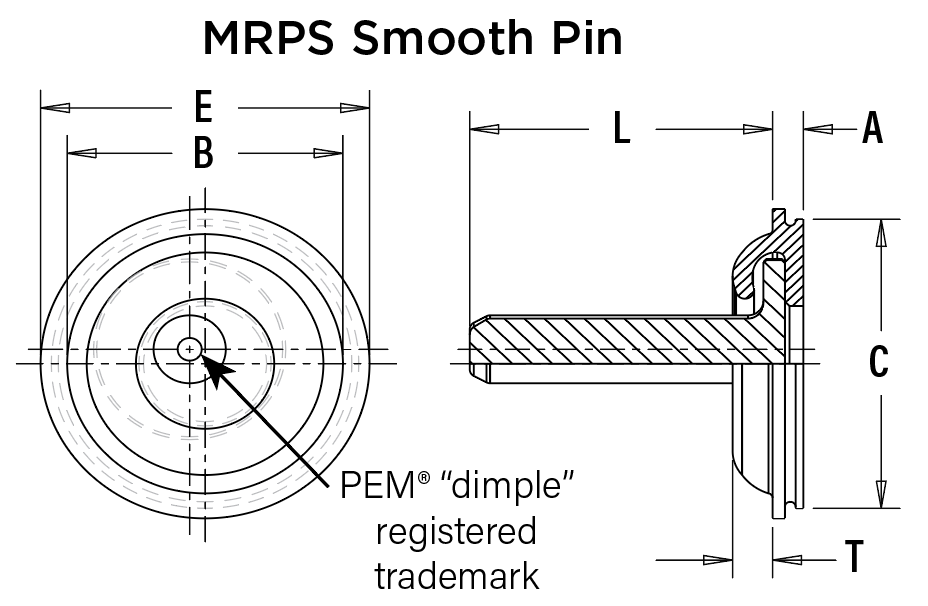

A Shank Max: 0.047in, 1.19mm
B Max._in: 0.395in
B Max._mm: 10.03mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.433in
E Nom._in: 0.464in
E Nom._mm: 11.79mm
Min. Depth of Blind Hole_in: 0.048in
Min. Depth of Blind Hole_mm: 1.22mm
Min. Dist. Hole C/L to Edge_in: 0.315in
Min. Dist. Hole C/L to Edge_mm: 8mm
C Max._in: 0.432in
C Max._mm: 10.97mm
Pin Dia. Code: 2.8MM
T Max._in: 0.032in
T Max._mm: 0.81mm

Test Sheet Material	FLOATING PIN TYPE	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
.091” / 2.3mm 5052-H34 Aluminum	MRPS	2.8MM	0.399	10.13	H-156-2.8	H-108-075L	8027222	8012030	1800 lbs. / 8 kN	397 lbs / 1766 N
											MRFS	MRPS	2.8MM	31.9 lbs / 142 N	0.055 in / 1.4 mm	223.4 lbs / 994 N	0.200 in / 5.1 mm
