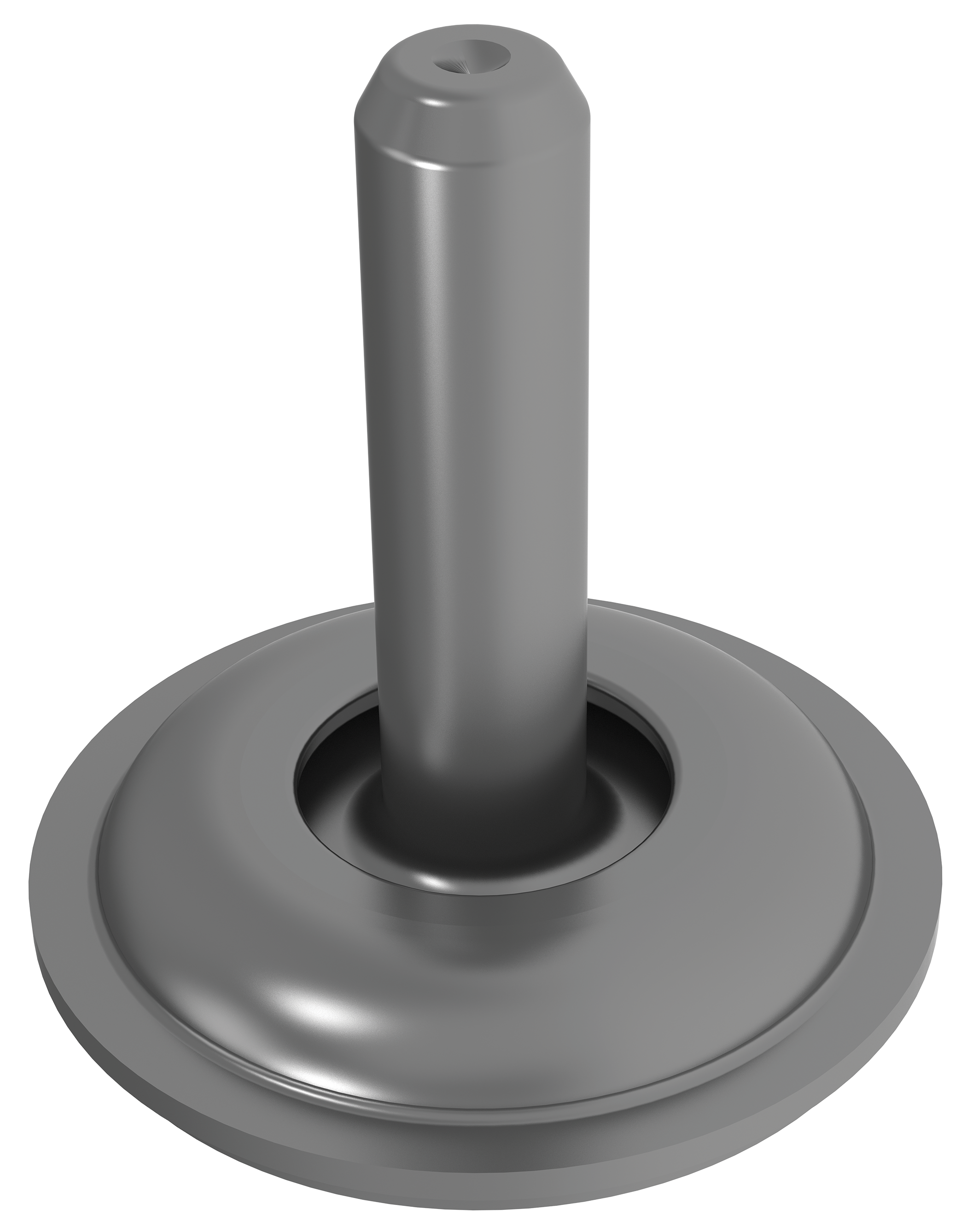

MRPS-4.8MM-1630 - PEM® GHOST™ Floating Pins - MRPS™, MRHPS™ - PEM® Fastening Products

For Use in Sheet Hardness: HRB 70 / HB 125 or less
Product Category: PEM® GHOST™ Floating Pins – MRPS™, MRHPS™
Axial Float – Total (in): 0.008
Axial Float – Total (mm): 0.2
ブランド: PEM

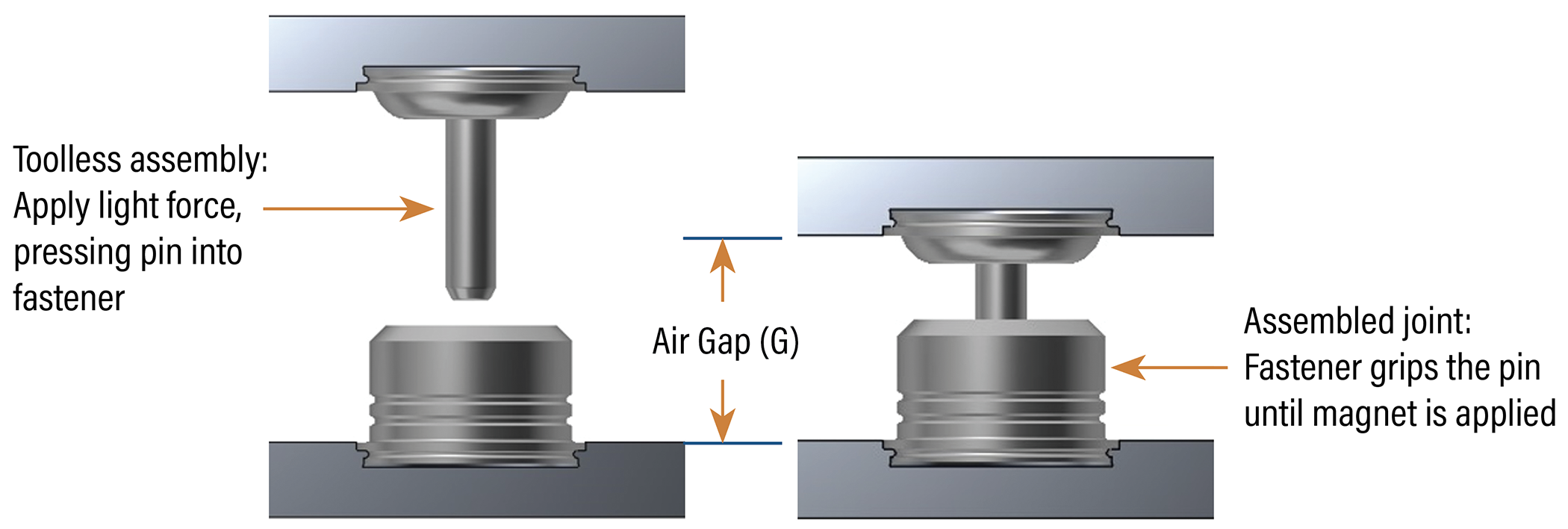

G Air Gap RAnge (mm): 15.37 – 16.71
G Air Gap Range (in): 0.605 – 0.658
L – Length ± .008_in: 0.641in
L – Length ± 0.2_mm: 16.29mm
Min Sheet Thickness – Cosmetic (in): 0.193
Min Sheet Thickness – Cosmetic (mm): 4.9
Min Sheet Thickness – Non-cosmetic (in): 0.068
Min Sheet Thickness – Non-cosmetic (mm): 1.72
PEM®製品: MRF, MRPS
製品: ピン
Radial Float – All Directions From Center / Total (in): 0.029
Radial Float – All Directions From Center / Total (mm): 0.74

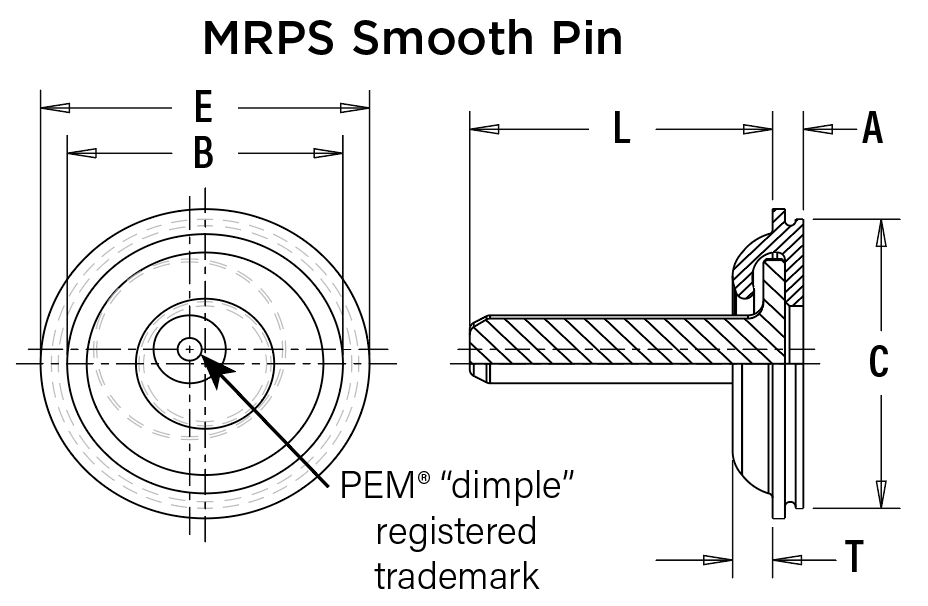

A Shank Max: 0.068in, 1.73mm
B Max._in: 0.64in
B Max._mm: 16.26mm
Blind Mounting Hole Diameter + .003 – .000_in: 0.709in
E Nom._in: 0.748in
E Nom._mm: 19mm
Min. Depth of Blind Hole_in: 0.069in
Min. Depth of Blind Hole_mm: 1.75mm
Min. Dist. Hole C/L to Edge_in: 0.5in
Min. Dist. Hole C/L to Edge_mm: 12.7mm
C Max._in: 0.708in
C Max._mm: 17.98mm
Pin Dia. Code: 4.8MM
T Max._in: 0.058in
T Max._mm: 1.47mm

Test Sheet Material	FLOATING PIN TYPE	PIN DIAMETER FIT CODE/CODE	Anvil Dim D +.003 (in.)	Anvil Dim D + 0.08 (mm)	Haeger Part Number Anvil	Haeger Part Number Punch	Pemserter Part Number Anvil	Pemserter Part Number Punch	INSTALLATION	PULLOUT	RETAINER TYPE	PIN TYPE	Pin Diameter Code	Recommended Pull-apart Target Load	Pull-apart Deflection (at Target Load)	Recommended Pull-Apart Max. Load	Pull-apart Deflection (at Max. Load)
.130” / 3.3mm 5052-H34 Aluminum	MRPS	4.8MM	0.645	16.38	H-156-4.8	H-108-5	8027223	8027342	4650 lbs. / 20.7 kN	957 lbs / 4257 N
											MRFS	MRPS	4.8MM	99.1 lbs / 441 N	0.094 in / 2.4 mm	525 lbs / 2336 N	0.301 in / 7.6 mm
