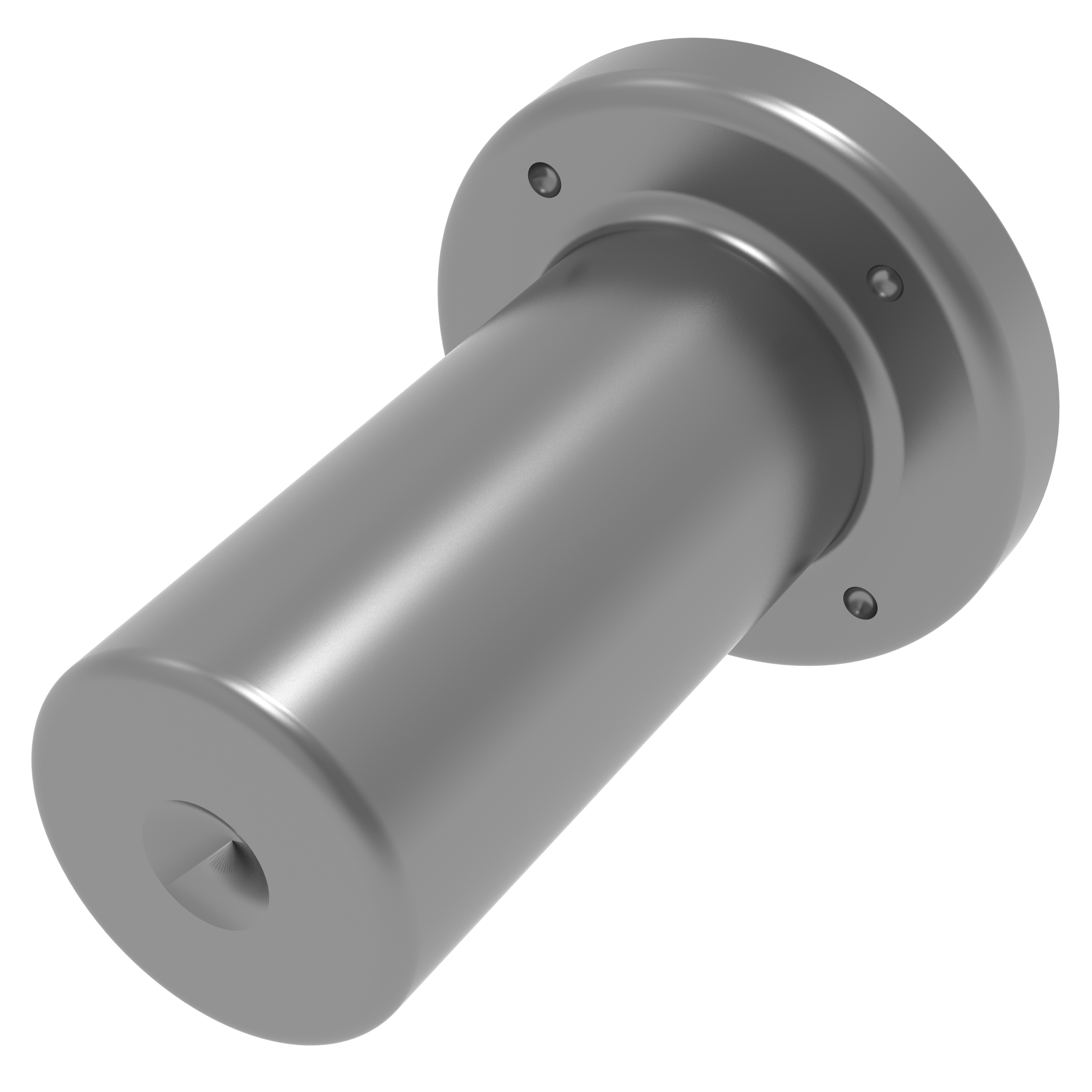

BFS-M6-1
Self-Clinching Blind Fasteners – Types B, BS
BFS-M6-1
Self-Clinching Blind Fasteners – Types B, BS
Our new fine finish BFS™ self clinching blind nuts are engineered specifically for better performance in soft copper and aluminum busbar applications without fear of chips or fines. The larger flange design provides greater bearing surface – delivering secure thread retention without damaging or deforming the panel during installation.

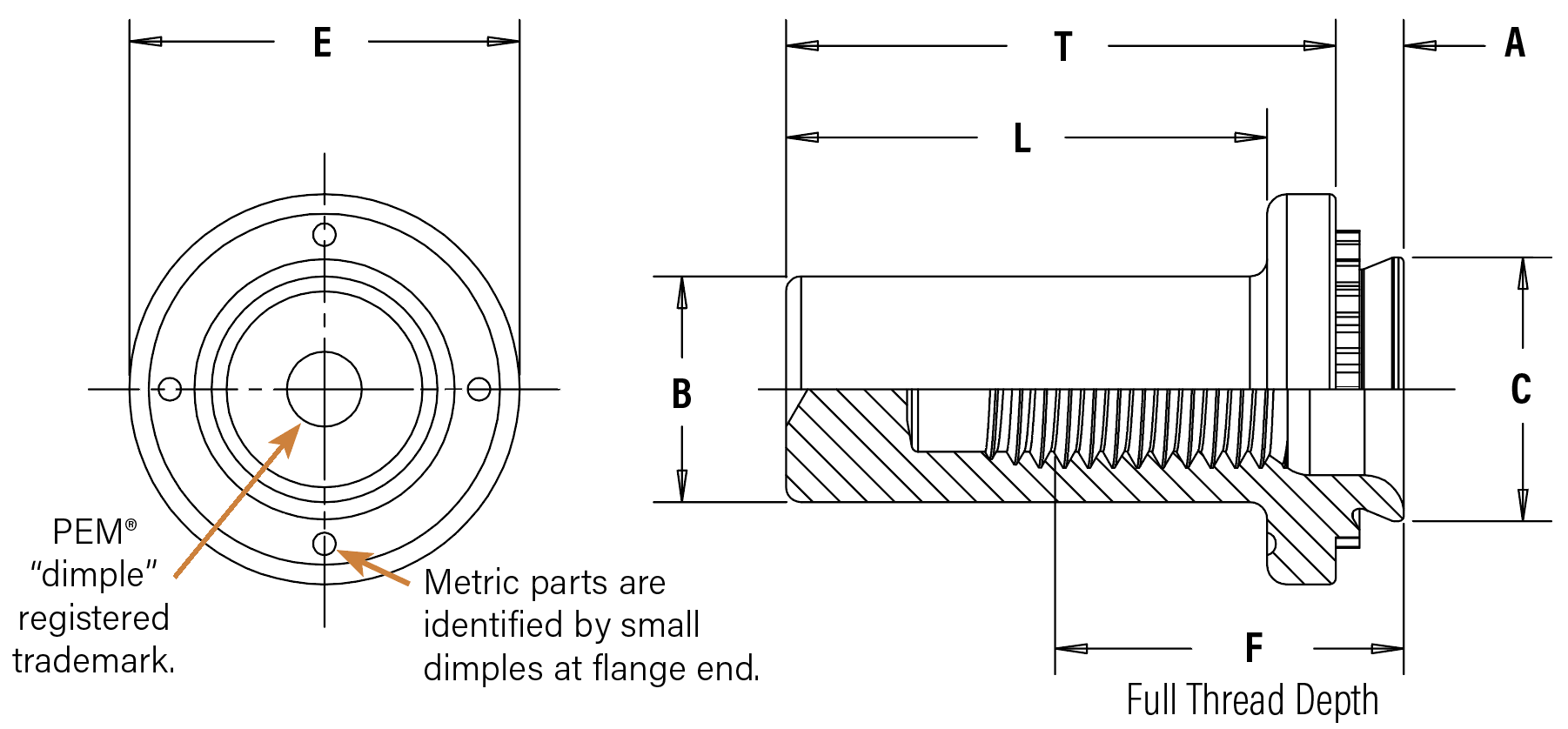

Specifications
- Thread Code
- M6
- Shank Code
- 1
- For Use in Sheet Hardness
- HRB 70 / HB 125 or less
- Product Category
- Self-Clinching Blind Fasteners – Types B, BS – Metric
- Thread Type
- Internal
- Hole Size in Sheet +.003 / +0.08mm_mm
- 10.5mm
- B Max._mm
- 9.1mm
- E ± 0.25_mm
- 14mm
- F Min._mm
- 11.5mm
- Hole Size in Sheet + 0.08_mm
- 10.5mm
- L Max._mm
- 15.8mm
- Min. Dist. Hole C/L to Edge_mm
- 9.7mm
- C Max._mm
- 10.47mm
- T ± 0.25_mm
- 18.3mm
Installation & Performance Data
| Type | Thread Code | Shank Code | Test Sheet Material | Haeger Part Number Anvil | Haeger Part Number Punch | Pemserter Part Number Anvil | Pemserter Part Number Punch | Installation (kN) | Pushout (N) | Test Sheet Thickness | Torque-out (N•m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BF. BFS | M6 | 1 | 5052-H34 Aluminum | H-237-0420L | H-103-062L | 8027368 | 975200048 | 17.8 | 1570 | 1.5 | 10.2 |
| BF. BFS | M6 | 1 | Cold-Rolled Steel | H-237-0420L | H-103-062L | 8027368 | 975200048 | 24.5 | 1870 | 1.5 | 17 |
