BSOS-RTM4-14

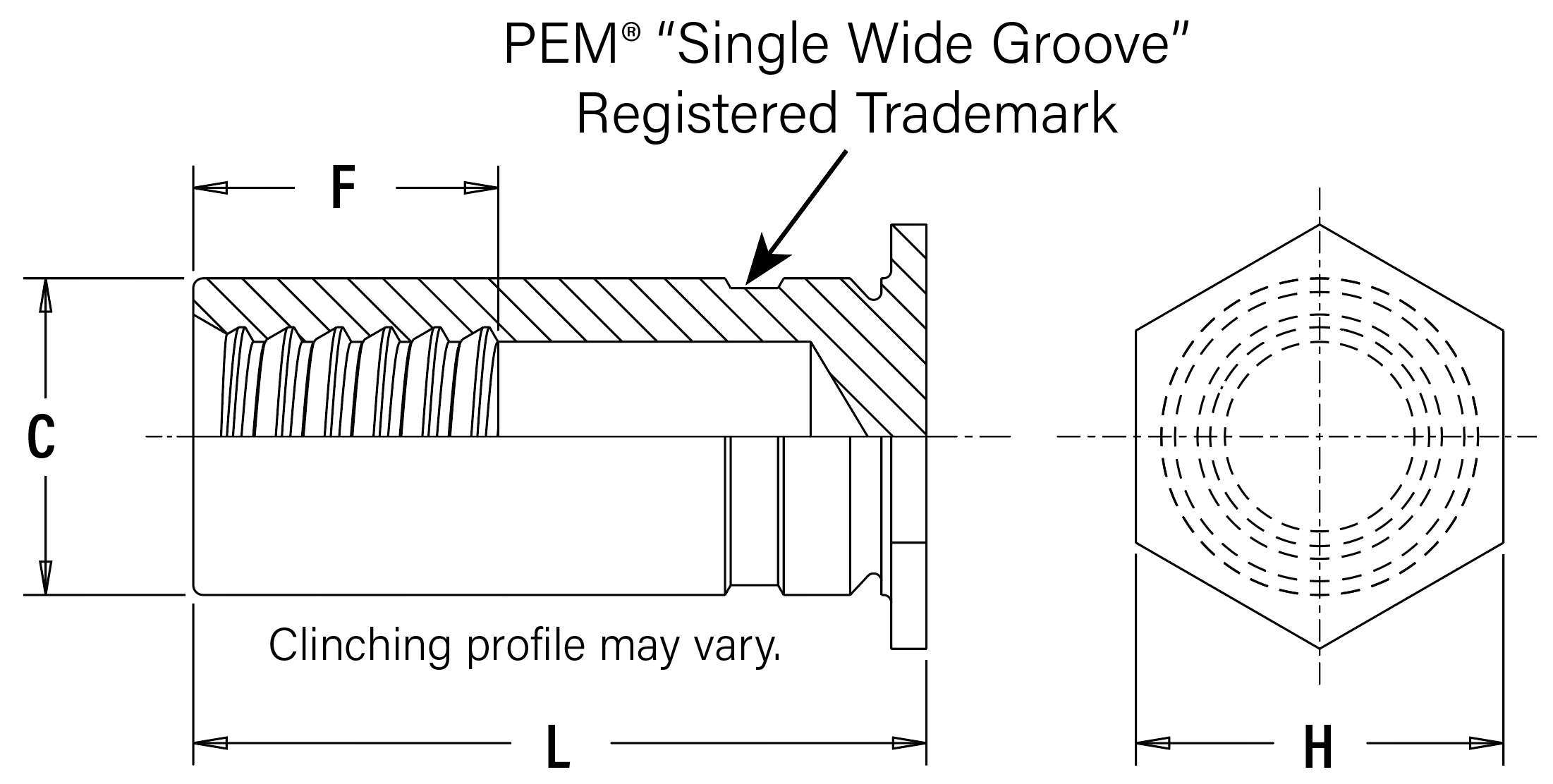

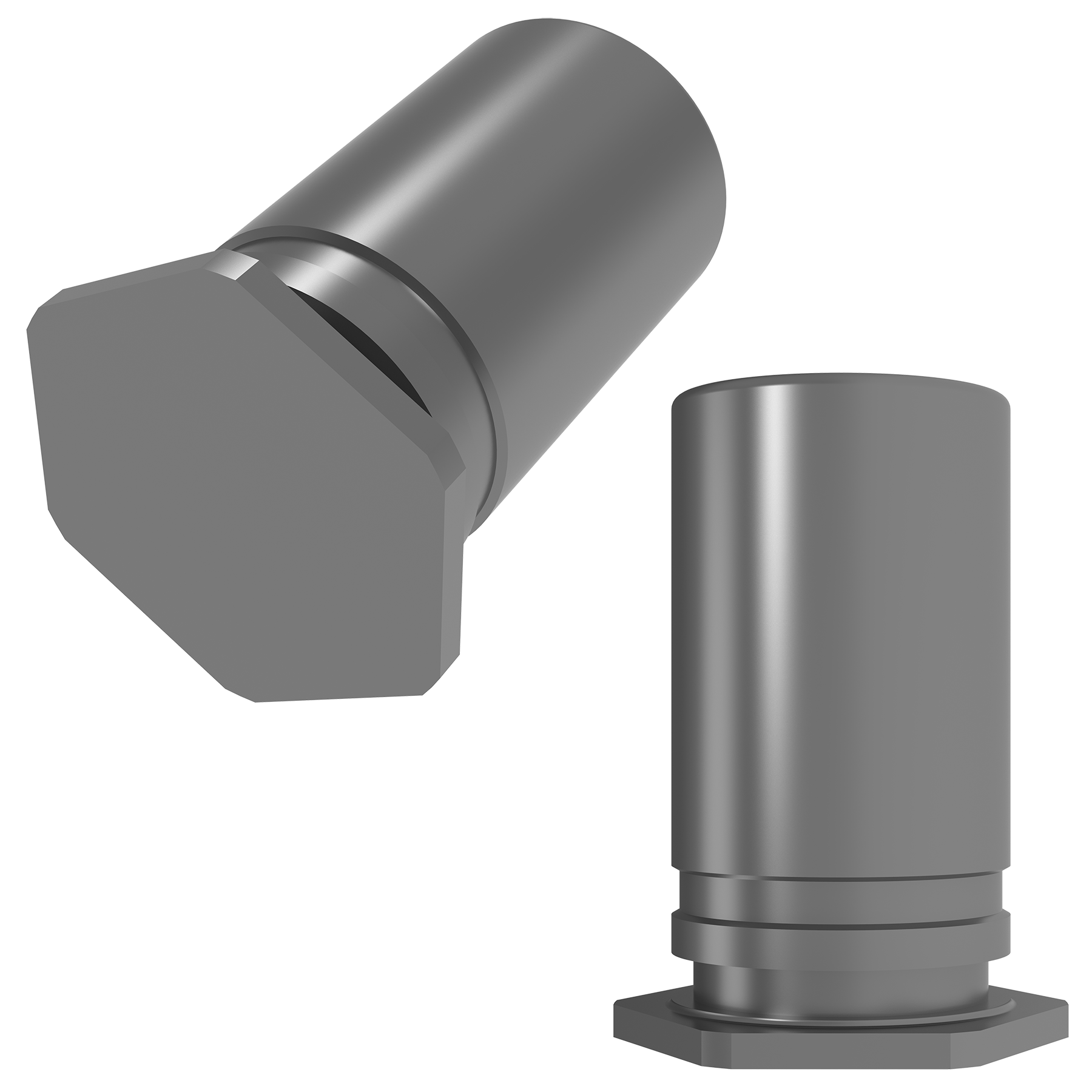

Blind Threaded Standoffs – Types BSO, BSOA, BSOS
BSOS-RTM4-14
Blind Threaded Standoffs – Types BSO, BSOA, BSOS
Specifications
- Thread Code
- RTM4
- Thread Size
- M4 x 0.7
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- For Use in Sheet Hardness
- HRB 70 / HB 125 or Less
- Product Category
- Blind Threaded Standoffs – Types BSO, BSOA, BSOS – Metric
- Thread Type
- RT Thread Form, Internal
- Brand
- PEM
- Hole Size in Sheet +.003 / +0.08mm_mm
- 7.14mm
- Installation Equipment/Method
- Self-Clinching
- PEM Product Family
- BSOS
- Product Type
- Standoffs
- Through Hole/Blind
- Blind
- F Min._mm
- 6.5mm
- H – Nom._mm
- 7.9mm
- Hole Size in Sheet + 0.08_mm
- 7.14mm
- L +0.05 -0.13_mm
- 14mm
- Min. Dist. Hole C/L to Edge_mm
- 8mm
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Haeger Part Number Anvil | Haeger Part Number Punch | Installation (kN) | Pemserter Part Number Anvil | Pemserter Part Number Punch | PULL THRU (N) | Pushout (N) | Standoff Material | Torque-out (N•m) | Max. Rec. Tightening Torque for Mating Screw (N•m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SO SOS SOA BSO BSOS BSOA | M4 | 1.5 mm Cold-rolled Steel | H-109-8-10/M5L | H-108-0020L | 17.8 | 970200013300 | 975200048 | 2488 | 2490 | Stainless Steel | 8.47 | |
| SO SOS SOA BSO BSOS BSOA | M4 | 1.5 mm 5052-H34 Aluminum | H-109-8-10/M5L | H-108-0020L | 10.7 | 970200013300 | 975200048 | 2060 | 1780 | Stainless Steel | 5.08 | 1.6 |
