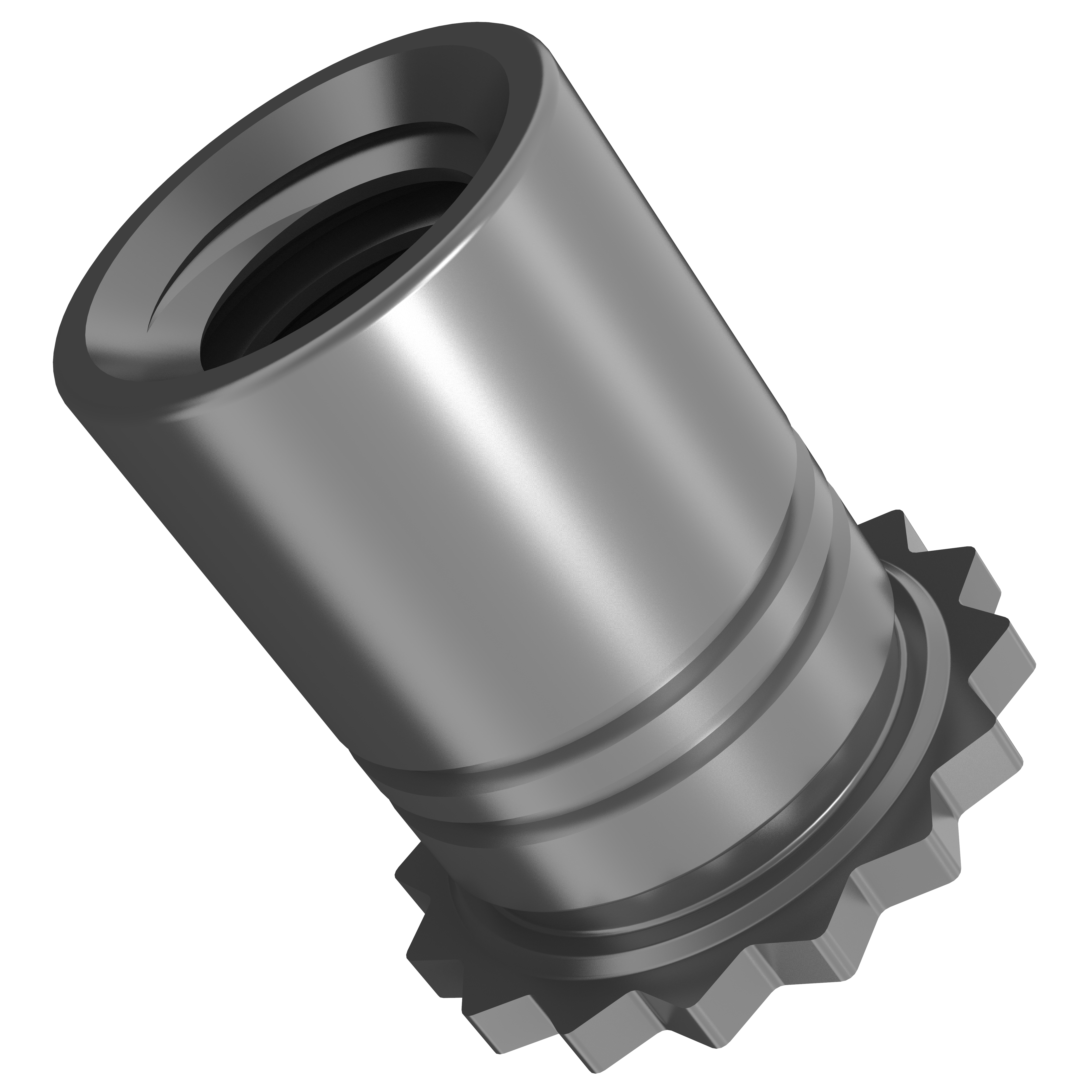

SOK-256-8ZI
Threaded Standoffs for Close-To-Edge Applications – Types SOK, SOKS
SOK-256-8ZI
Threaded Standoffs for Close-To-Edge Applications – Types SOK, SOKS
Specifications
- Thread Code
- 256
- For Use in Sheet Hardness
- HRB 80/ HB 150 or less
- Product Category
- Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS – Metric
- Thread Type
- Internal
- Grounding
- Not Grounding
- Non-Magnetic
- Magnetic
- PEM Product Family
- SO
- Product Type
- Standoffs
- Through Hole/Blind
- Through Hole

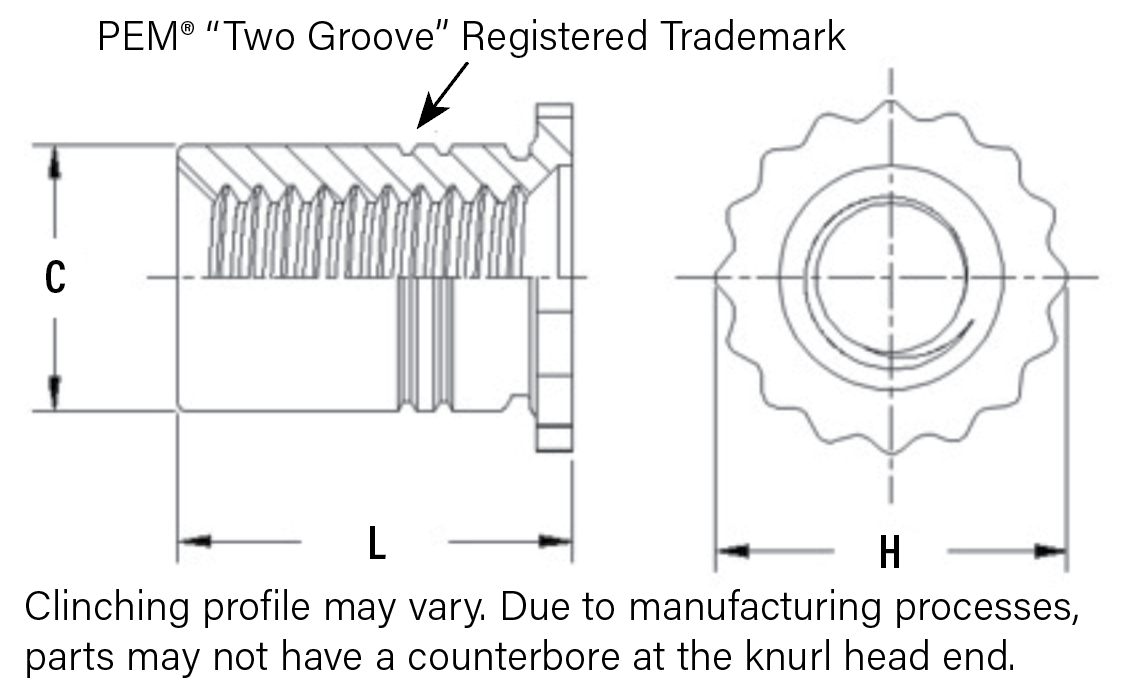

- H – Nom._in
- 0.194in
- Hole Size in Sheet +.003 – .000_in
- 0.166in
- L +.002 -.005_in
- 0.25in
- Min. Dist. Hole C/L to Edge_in
- 0.126in
- C Max._in
- 0.165in
- Sheet Thickness
- .037 Min.
Installation & Performance Data
| Type | Thread Code | Test Sheet Material | Installation (lbs.) | Haeger Part Number Anvil | Haeger Part Number Punch | Pemserter Part Number Anvil | Pemserter Part Number Punch | PULL THRU (lbs.) | Pushout (lbs.) | Standoff Material | Torque-out (in. lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SOK | 256 | .040″ 5052-H34 Aluminum | 700 | H-109-4/M3L | H-108-0020L | 970200487300 | 975200048 | 250 | 107 | Steel | 10 |
| SOK | 256 | .040″ Cold-rolled Steel | 1100 | H-109-4/M3L | H-108-0020L | 970200487300 | 975200048 | 355 | 145 | Steel | 10 |
